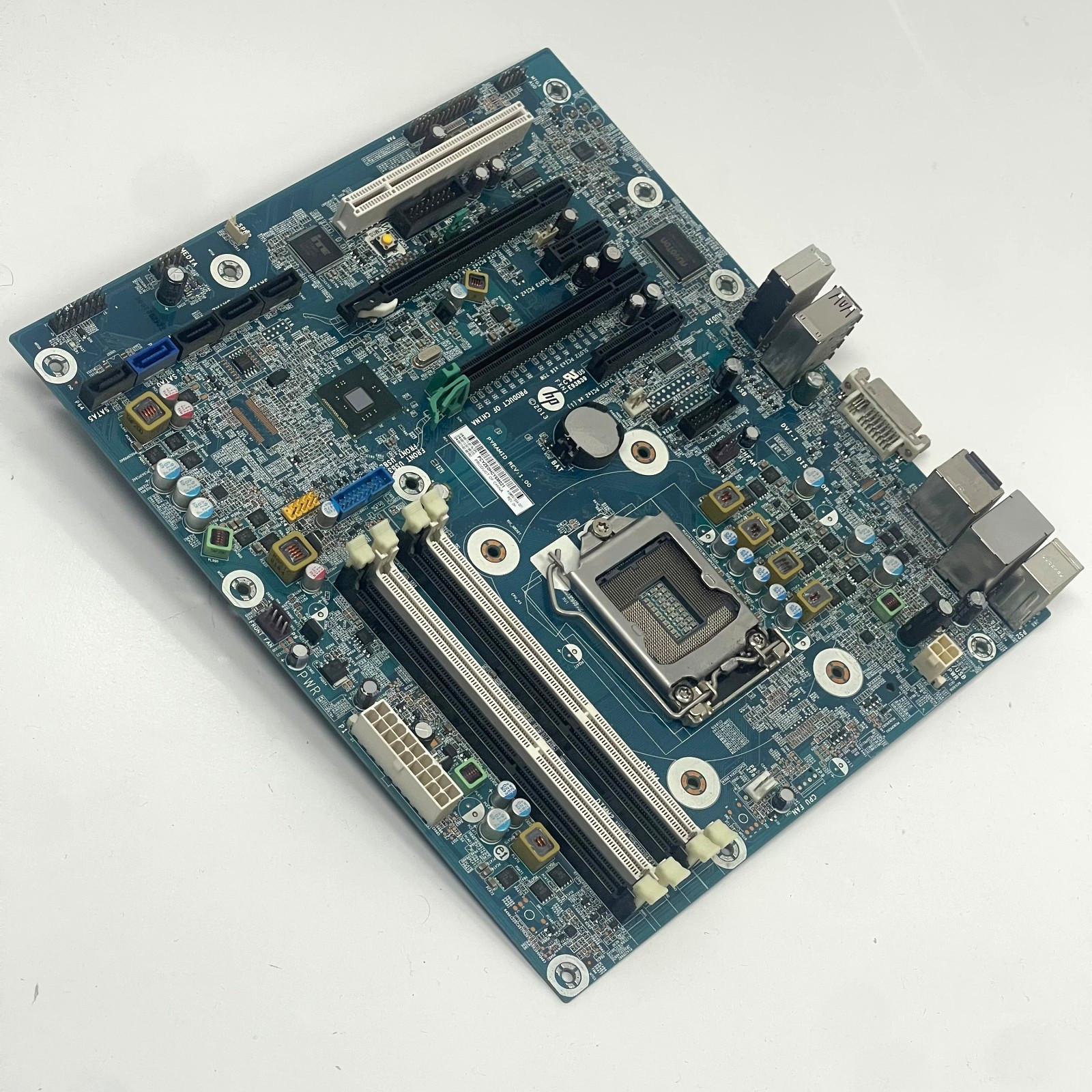

Genuine HP Z230 Tower Workstation Motherboard Intel C226 Chipset | LGA 1150 Socket | DDR3
HP Spare Part Number: 698113-001,697894-001
Item Overview
This is a pre-owned, Genuine HP Z230 Tower Workstation System Motherboard (HP Spare Part Number: 698113-001 / 697894-001). Engineered with the robust Intel C226 enterprise chipset for LGA 1150 processors, this proprietary workstation motherboard supports 4th generation Intel Core and Intel Xeon E3-1200 v3 processors, dual-channel DDR3 ECC/non-ECC unbuffered memory, and robust expansion via PCIe 3.0 slots. Ideal for replacing a faulty workstation board or building a stable high-performance server/desktop rig.
- Genuine HP OEM Component: Factory original spare part matching HP Assy / Spare P/N 698113-001.
- Intel C226 Workstation Chipset: Enterprise-grade platform reliability supporting Intel Xeon E3 v3 and 4th Gen Core CPUs.
- DDR3 Memory Slots: Features 4 DIMM slots supporting up to 32GB of dual-channel DDR3 memory architecture.
- Proprietary Workstation Form Factor: Designed specifically to drop directly into HP Z230 Tower chassis configurations.
Item Specifications Manufacturer / Brand HP Inc. (Hewlett-Packard) Compatible System Model HP Z230 Tower Workstation HP Spare Part Number (P/N) 698113-001 (Assy / PCB Board Identifier) CPU Socket Type LGA 1150 (Socket H3) Supported Processors Intel Xeon E3-1200 v3 Family & 4th Gen Intel Core i7 / i5 / i3 / Pentium / Celeron Chipset Architecture Intel C226 Express Chipset Memory Support 4 x 240-Pin DDR3 DIMM Slots (Supports up to 32GB Non-ECC / ECC Unbuffered Memory) Expansion Slots 1 x PCIe 3.0 x16, 1 x PCIe 2.0 x16 (wired as x4), 1 x PCIe 2.0 x1, 1 x PCI Slot Storage Interfaces 6 x SATA 6Gb/s Ports (Intel RST RAID support) Networking / LAN Intel I217LM PCIe Gigabit Network Connection Audio Controller Realtek ALC221 High Definition Audio Codec Warranty Coverage 30 Days Functional Replacement Guarantee System & Chassis Compatibility ✔️ HP Z230 Tower Workstation Chassis & Proprietary Power Supply ✔️ Intel LGA 1150 CPUs (Xeon E3 v3 / 4th Gen Core) ❌ NOT Compatible with Z230 Small Form Factor (SFF) Cases ❌ NOT Compatible with standard generic ATX case standoffs without adapter brackets ⚠️ PROPRIETARY WORKSTATION FORM FACTOR NOTICE
• Tower Chassis Only: This motherboard is designed specifically for the HP Z230 Tower Workstation layout and uses proprietary HP power supply pinouts and front panel headers. It is not a standard ATX form factor board.
• Board Only: Sale is for the bare motherboard and I/O shield (unless stated otherwise). Heatsinks, processors, and memory modules are not included. Shipping & Protective Packaging
Free & Fast Shipping within Australia: Orders are dispatched within 1 business day via tracked Australia Post channels. Tracking information is automatically appended to your purchase history.
Anti-Static & Boxed Transit Protection: Workstation motherboards feature fragile circuit pathways. This board is sealed inside a protective anti-static ESD bag, cushioned heavily in bubble wrap, and shipped in a sturdy corrugated box to prevent PCB flexion or physical damage during transport.
Local Pickup: Available from our commercial Belmore Warehouse hub situated in Sydney.
International Shipping: Worldwide options are available. All cross-border duties, regional sales taxes, or custom clearance charges remain the buyer's responsibility.
Payment
We process standard secure options including PayPal, Apple Pay, Google Pay, Credit Cards, and Direct Electronic Bank Transfers. Payment completion is requested within 4 days of purchase.
Returns & Electrostatic Safety Conditions
Backed by our solid 30-Day Satisfaction Guarantee. Before handling or installing internal components, **always turn off your system and disconnect the main AC power cord**. Ensure your CPU socket pins remain untouched and protected by a cover during handling. Returns cannot be accepted for items displaying bent CPU socket pins, physical PCB fractures, or damage caused by improper user installation.
