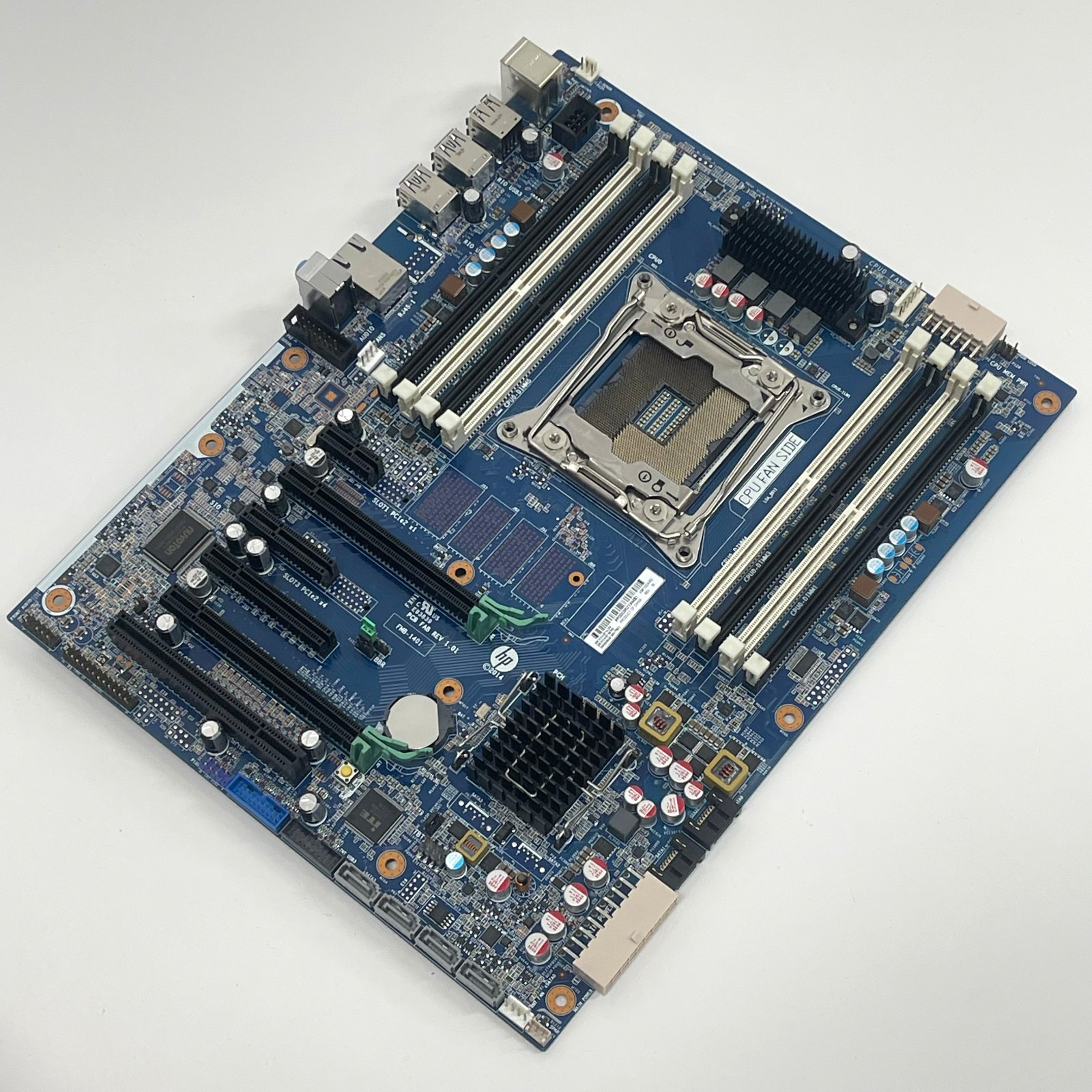

HP Z440 Workstation Motherboard Intel C612 Socket LGA 2011-3
Genuine Original OEM Pull | Part Number: 761514-001 | Interchangeable: 761514-006, 710324-001, 710324-002
Item Overview
This is a used, Genuine HP Z440 Workstation Motherboard built on the robust Intel C612 chipset. Sourced directly as an original hardware system pull from a running corporate workstation environment, this motherboard features an LGA 2011-3 processor socket designed to accommodate enterprise-class Intel Xeon E5-1600 and E5-2600 v3/v4 family processors. The board has been fully cleaned and visually inspected to guarantee steady out-of-the-box performance.
- Genuine HP Engineering Precision: Designed specifically to integrate perfectly within the HP Z440 chassis, ensuring optimal thermal management, customized airflow paths, and factory power connection alignments.
- Robust Memory Capacity: Outfitted with 8x DDR4 DIMM slots supporting up to 256GB of high-density enterprise memory arrays for intense multi-threaded applications and virtualized workflows.
- Flexible Multi-GPU Support: Features 2x PCIe Gen3 x16 slots alongside multiple open-ended PCIe expansion slots for high-end graphics rendering, accelerator layouts, or fast NVMe interface cards.
Item Specifications Manufacturer HP / Intel (Genuine OEM Pull) Compatible System HP Z440 Workstation Tower Only Chipset Intel C612 Enterprise Class Processor Socket LGA 2011-3 (Socket R3 Architecture) CPU Compatibility Intel Xeon E5-1600 & E5-2600 v3 / v4 Series Memory Slots 8 x DDR4 Memory DIMM Channels Memory Support ECC Registered (RDIMM up to 128GB) / Load-Reduced (LRDIMM up to 256GB)
*Note: Non-ECC Memory is NOT Supported Expansion Architecture 2 x PCIe Gen3 x16
1 x PCIe Gen2 x8 (Open-Ended)
1 x PCIe Gen2 x4 (Open-Ended)
1 x PCIe Gen2 x1
1 x Legacy PCI Slot Storage Interface 6 x SATA 6Gb/s Ports (Supports RAID 0, 1, 5, 10 via onboard controller) Onboard Ethernet Intel I218LM Gigabit Network Controller Integrated Audio Realtek ALC221 High Definition Audio (internal header) Primary Part Number 761514-001 Interchangeable Part N/S 761514-006, 710324-001, 710324-002 Warranty Coverage 30 Days Functional Replacement ⚠️ CRITICAL FORM FACTOR & MEMORY COMPATIBILITY NOTICE
• PROPRIETARY INTERFACE: This motherboard features a custom structural layout and proprietary electrical header pinouts engineered exclusively for the **HP Z440 Workstation**. It will not fit, align with, or receive appropriate power signals within standard standard ATX computer enclosures or from typical aftermarket ATX power supplies without specialized conversion components.
• ECC REGULATED RAM ONLY: This logic board requires **DDR4 ECC Registered (RDIMM) or Load-Reduced (LRDIMM)** memory modules. Standard unbuffered, non-ECC consumer desktop RAM **IS NOT SUPPORTED** and will cause the motherboard to loop or throw fatal post beep errors. Please check your existing equipment before buying. Shipping & Collection
Free & Fast Shipping within Australia: We dispatch orders within 1 business day via tracked Australia Post channels. Tracking parameters link automatically to your client purchase summary.
Anti-Static Shield Packaging: Bare mainboards contain millions of static-sensitive semiconductor microstructures. This unit is sealed inside an industrial-grade pink/silver anti-static ESD shield bag, heavily lined with shock-isolating bubble wrap, and shipped inside a rigid box to eliminate internal trace damage, solder contact stress, or pin bending while in transit.
Local Pickup: Available from our commercial Belmore Warehouse hub situated out in Sydney.
International Shipping: Worldwide options are available. All cross-border duties, regional sales taxes, or custom clearance handling fees remain entirely the buyer's responsibility.
Payment
We process secure standard options including PayPal, major Credit Cards, and direct Electronic Bank Deposits. Complete clearance is requested within 4 days of checkout scheduling. Please include your user ID or email as a reference when making a payment via bank deposit.
Returns & Electrostatic Safety Conditions
Backed with our solid **30-Day Satisfaction Guarantee**. Prior to alignment and mounting inside the system chassis, **always verify that the target machine is completely disconnected from utility AC power lines and all capacitors are fully drained**. Installing components or handling the board without grounding your body can cause immediate static shorting. Returns cannot be honored for motherboards showing physical damage, bent LGA processor socket pins from careless CPU seating, or blown trace tracks caused by dynamic live-swapping.
