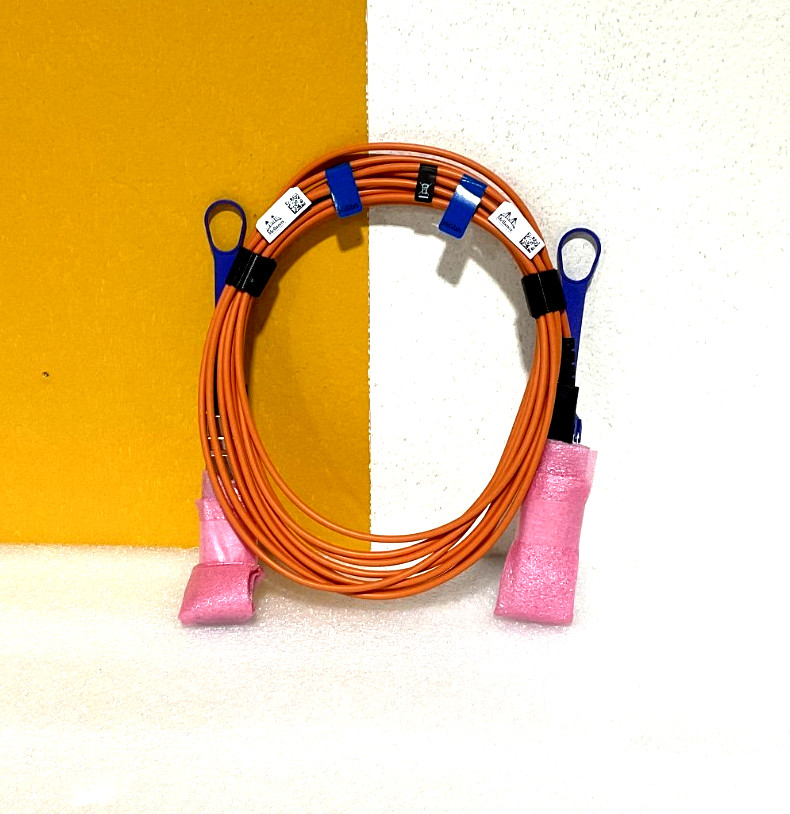

NEW Genuine Mellanox NVIDIA MC220731V-005 5m AOC Cable Infiniband FSP 56Gb/s QSFP+Multiple in stock. All individually wrapped in labeled anti-static bags. Photos show one of the units in our stock.
Key Specifications

• Type: QSFP+ to QSFP+ Active Optical Cable (AOC) with integrated VCSEL-based optical transceivers
• Data Rate: Up to 56 Gb/s (aggregate); supports 4 × 14.0625 Gb/s per lane(Compatible with FDR InfiniBand and 56 GbE / VPI applications)
• Length: 5 meters (≈16.4 ft)
• Fiber Type: Multimode fiber (MMF), typically OM3 (850 nm wavelength)
• Connectors: QSFP+ (male) on both ends
• Power Consumption: Maximum 1W per end
• Power Supply: 3.3V single supply
• Bit Error Rate (BER): Better than 1E-15
• Compliance:
  • SFF-8685 and SFF-8436
  • Hot pluggable
  • RoHS compliant
  • Plenum rated (OFNP)
• Operating Temperature: 0°C to 70°C (case temperature)
• Reach: Designed for short-to-medium reach interconnects in data centers (part of a family supporting up to 100m)

Main Features

• Four multi-mode fibers with optical transceivers at each end.
• Input equalizers on transmitters and programmable output amplitude/pre-emphasis on receivers.
• Lower power and longer reach compared to passive copper cables.
• High port density and easy installation (hot-pluggable).

The item is new, sealed surplus. Kept in climate controlled storage. All items will ship exactly as shown.

Please contact us with any questions. Bulk discounts available.
