Original George Morrow Disk Jockey 2D Revision 3 schematic documentation set, copyright 1979.

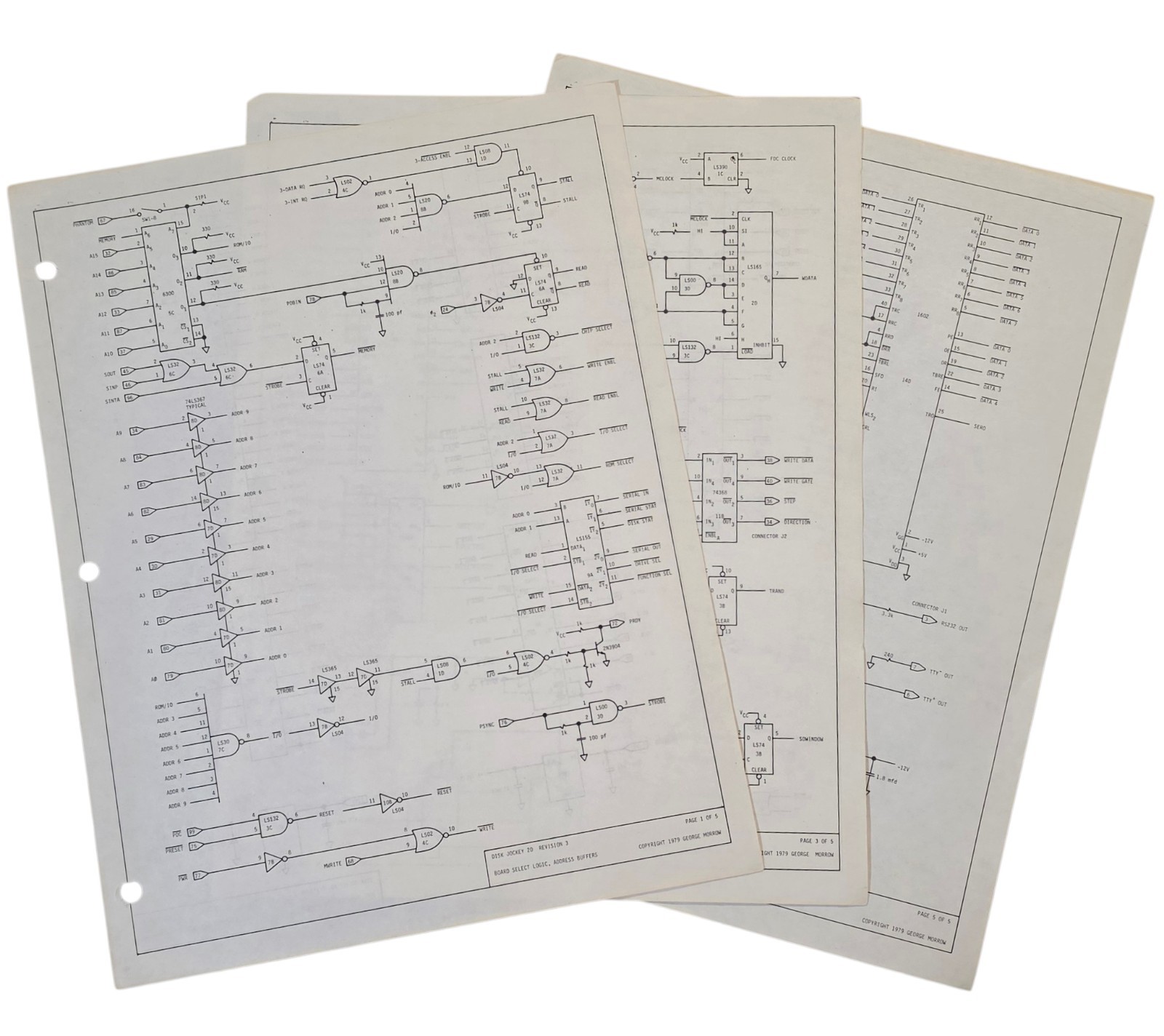

This original documentation consists of three double-sided sheets containing five schematic pages, covering the Disk Jockey 2D floppy disk controller for S-100 bus computer systems.
Features include:
- Original 1979 documentation (not a reproduction)
- Disk Jockey 2D Revision 3
- Five schematic pages on three double-sided sheets
- Board select logic and address buffers
- RAM, ROM, and data buffers
- Write data and separator logic
- Serial interface logic
- Disk buffer, power-on jump logic, and function register circuitry
