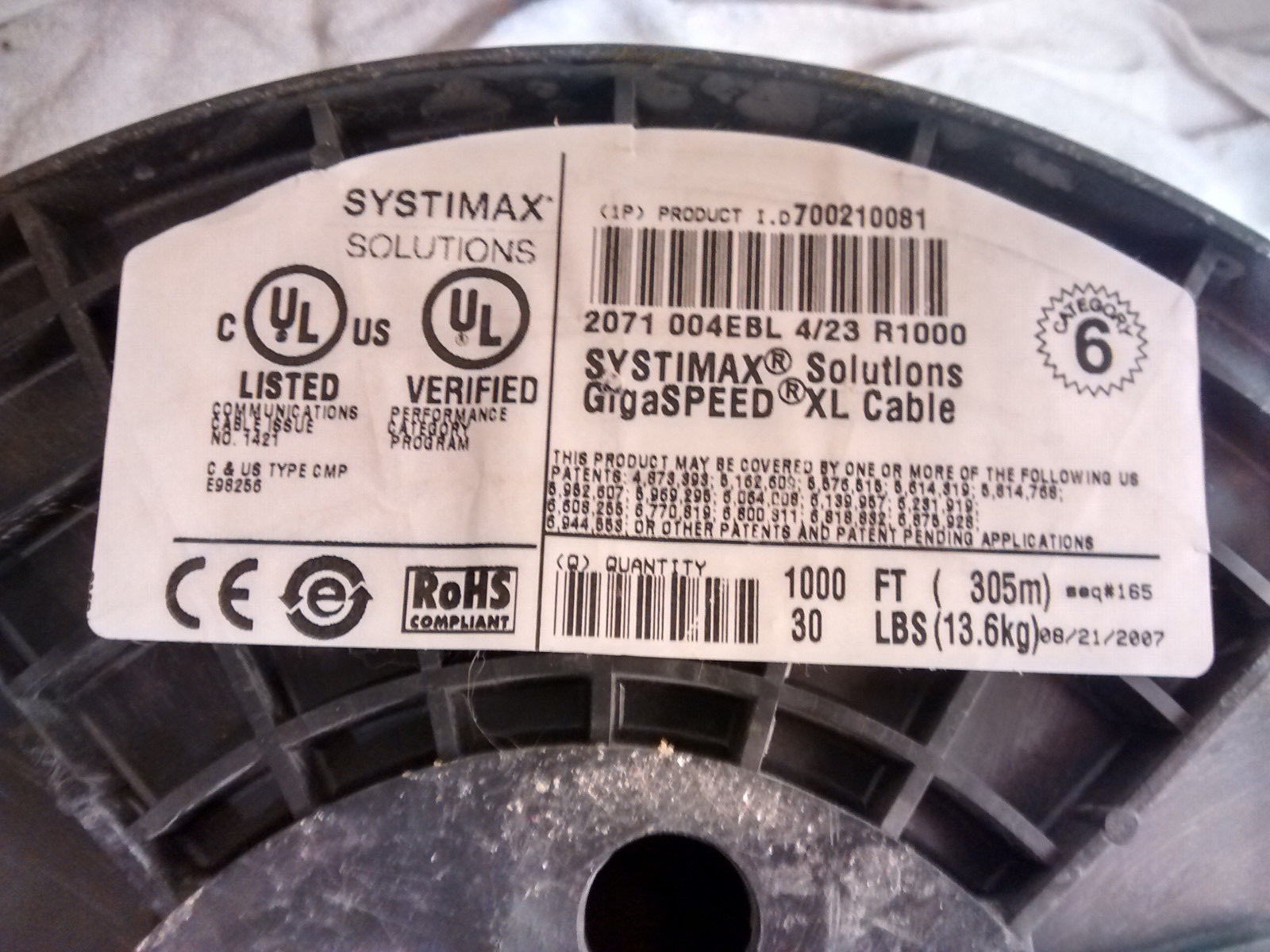

This listing is for a partial roll of GigaSPEED XL® 2071E ETL Verified Category 6 U/UTP Cable, plenum, blue jacket, 4 pair count. Based on weight of the reel there is 250-300 ft of cable left.
Construction Materials Jacket Material PVC Conductor Material Bare copper Insulation Material FEP|Polyolefin Separator Material Flame retardant polyolefin Dimensions Cable Length 305 m|1000 ft Cable Weight 29.00 lb/kft Diameter Over Jacket 5.740 mm|0.226 in Jacket Thickness 0.559 mm|0.022 in Electrical Specifications ANSI/TIA Category 6 dc Resistance Unbalance, maximum 5 % dc Resistance, maximum 7.61 ohms/100 m Mutual Capacitance 5.6 nF/100 m @ 1 kHz Nominal Velocity of Propagation (NVP) 71 % Operating Frequency, maximum 300 MHz Operating Voltage, maximum 80 V Transmission Standards ANSI/TIA-568-C.2|CENELEC EN 50288-6-1|ISO/IEC 11801 Class E Dielectric Strength, minimum 1500 Vac|2500 Vdc Environmental Specifications Environmental Space Plenum Flame Test Method CMP Installation Temperature 0 °C to +60 °C (+32 °F to +140 °F) Operating Temperature -20 °C to +60 °C (-4 °F to +140 °F) Smoke Test Method CMP UL Temperature Rating 75 °C|167 °F General Specifications Cable Type U/UTP (unshielded) Pairs, quantity 4 Cable Component Type Horizontal Packaging Type Reel Brand GigaSPEED XL®|SYSTIMAX® Jacket Color Blue Product Number 2071E Conductor Gauge, singles 23 AWG Conductor Type, singles Solid Conductors, quantity 8 Separator Type Bisector
