Gigabit 48V PoE Injector Adapter Power Over Ethernet 802.3at af UBNT AP 1000Mbps For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

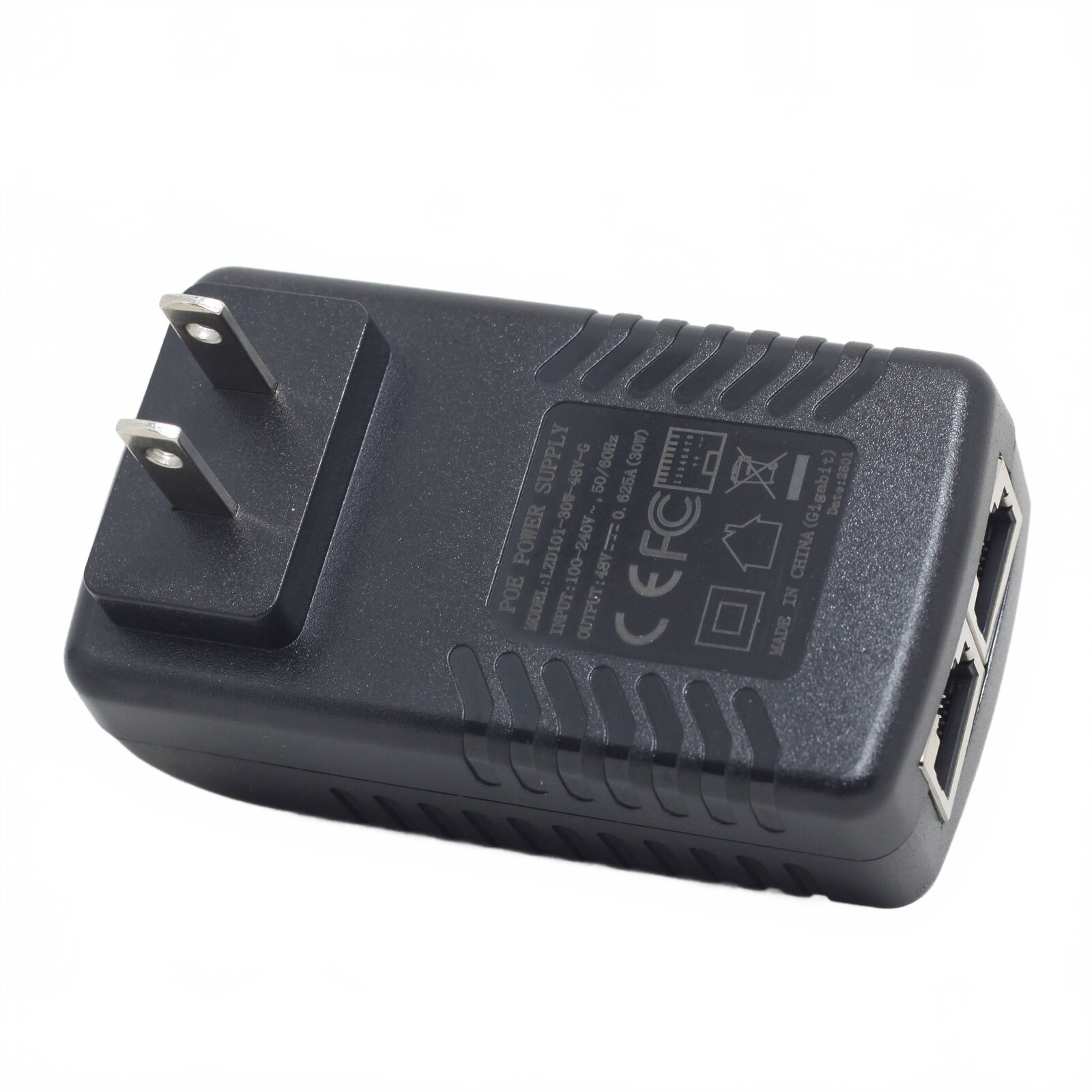

Gigabit 48V PoE Injector Adapter Power Over Ethernet 802.3at af UBNT AP 1000Mbps

Price: CN $8.29

Gigabit48V 24watt Passive PoE Injector

compatible 802.3af / 802.3at

compatible10/100/1000 Ethernet

forRaspberry Pi 3B+(3B Plus)

Raspberry Pi 3B+ can work with this poe injector after installed this PoEhat or micro USBPoE Splitter.

for UBNT ,UAP-AC-IW-PRO
Please do not connect UAP-AC-LR and UAP-AC-LITE to this switch,orelse it will burn your UAP-AC-LR/UAP-AC-LITE.

This injector can power 802.3af compatible devices without extra adapters. Just plug the network cable(not included) into your network switch and the "LAN" port, then plug the network cable to your device into the "PoE" port with your existing network cable.This Adapter support 10/100/1000Mbps gigabit ethernet connection, RJ45 PoE port using 4,5,7,8 pin as power transfer, Please do not connect any device that does not support the "PoE" port, this will damage your device.This is an 802.3af compatible device, but it does NOT include the 802.3af/802.3at compliant detection feature. It supplies power NO MATTER WHAT, don't plug the "PoE" side into anything that isn't ready for it.Compatible all 802.3af PoE power device as Wireless Access Point, IP Phone, IP camera, Gateway , Switch, or 10/100/1000 Ethernet

* Cost Saving, No Power Cabling for WLAN AP, IP Phone and any supported IEEE802.3af Powered Device
* Meeting IEEE 802.3af standards and more sufficiently is able to provide power to PD devices
* Small lightweight plastic enclosure
* Built-in universal 100-240V AC switching power supply
* Compatible 10/100/1000 Ethernet,Standard RJ45 Cat.5Ethernet data input and output
* Easy, convenient, and simple to use

Specification:
Compatible Standards: 802.3af and 802.3at
Compatible 10/100/1000 Ethernet

CAT5 Ethernet Pin Usage: Data: 1,2,3,4,5,6,7,8 Power: +(4,5),-(7,8)
LED: Power
Voltage Input: AC 100-240 V 50/60Hz
Voltage Output: DC48V 24watt
Dimension : 85 x 47 x 54mm
Weight -- 140g

Compatible 48VUbiquitiPoE:

UBNTAP/UAP

UAP-LR
UAP-AC-LR
UAP-AC-LITE
NanoStationM2/NSM2
NanoStationM3/NSM3
NanoStationM365/NSM365
NanoStationM5/NSM5
NanoStationLocoM2
NanoStationLocoM5
NanoStationLocoM9
UbiquitiRocketM5,M2,M9,M900
UbiquitiRocketM3/M365
UbiquitiRocketM2
UbiquitiRocketM9/M900
PowerBeamM5PBE-M5-300-ISO
airGrid style="color: rgb(0, 0, 0); font-family: Arial;">LiteBeam MLBE-M5-23,LBE-5AC-23,LBE-5AC-16-120
NanoBeam MNBE-M2-13,NBE-M5-16,NBE-M5-19
airMAXYAGIAntennaAMY-9M16
LiteBeamLBE-M5-23
(It is not compatible with Cisco air-ap2802i-E-k9)
