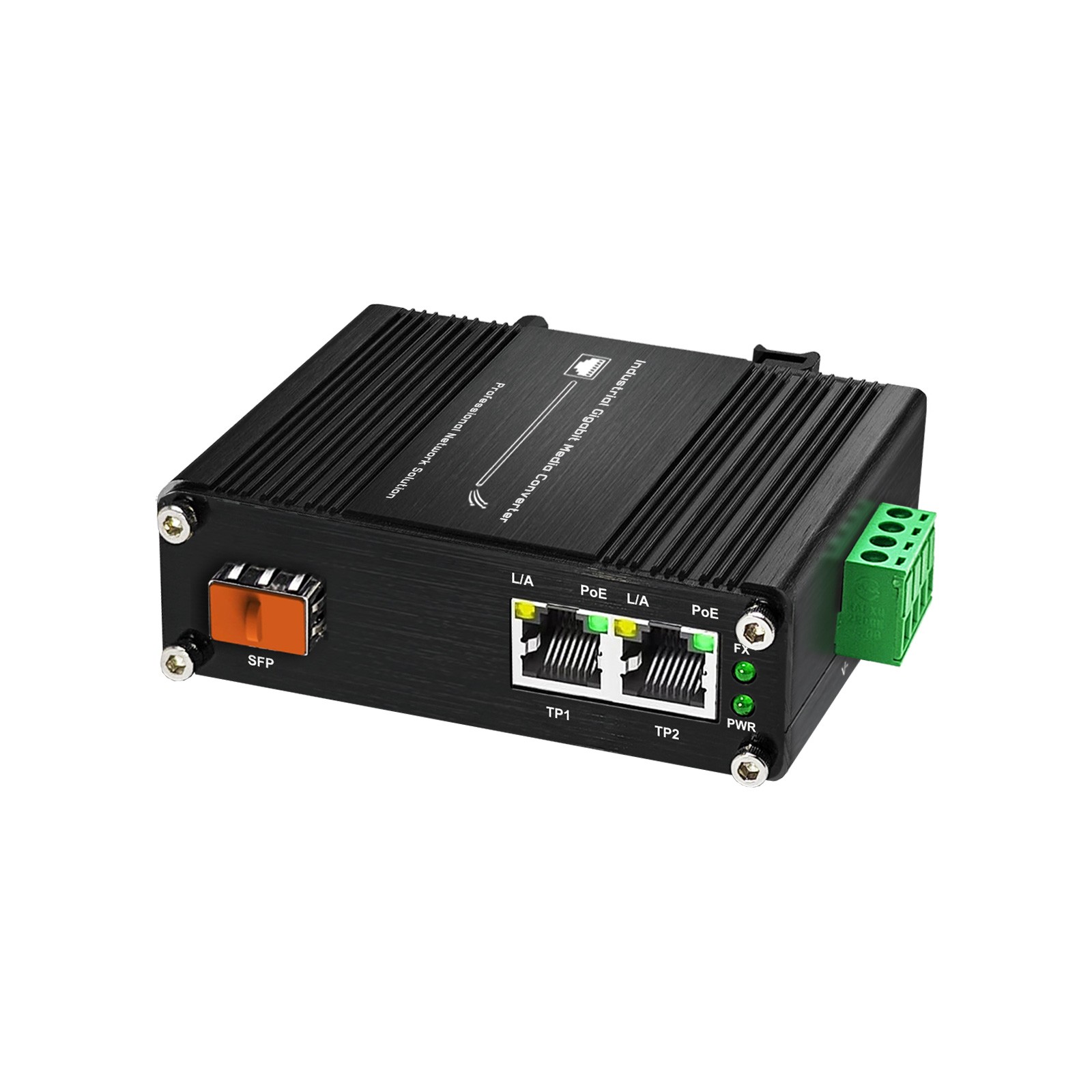

12-48V 2 Port 10/100/1000M PoE+1 Port 100/1000M SFP Industrial Gigabit 30W PoEFeatures
LNK-IMC1200GP-SFP is a DIN rail type media converter that supports external SFP Modules and meets EN55022 standard. The Ethernet port support high power PoE (Power Sourcing Equipment) which complies with IEEE802.3at standard. It is a hardened grade product whose operating temperature range is -40°C to +75°C. LNK-IMC1200GP-SFP supports 10/100/1000Base-T with 30W PoE+ and 100/1000Base-X SFP Port. The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.
Specifications
Ethernet
Standards:
IEEE802.3 10Base-T
IEEE802.3u 100Base-TX/FX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-X
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE802.3af Power over Ethernet
IEEE802.3at Power over Ethernet
Processing Type:
Store-and-Forward
Forward Filter Rate:
14,880pps (10Mbps)
148,800pps (100Mbps)
1,488,000pps (1000Mbps)
Packet Buffer Memory:
1 Mbit
Max Packet Length:
9K Bytes
Address Table Size
2K MAC Addresses
Interface
Connector:
2 x RJ45
Optical Port:
1 x SFP 1000Base-X or 100Base-FX (auto detection)
Electrical and Mechanical
Input Power:
12~48VDC, 2-pin terminal block
Output Power
48VDC
Power Consumption:
65W Max.
LED Indicators:
PWR:
Power Status
L/A:
Data LINK Status
POE:
PoE Status
100M/1000M:
Fiber LINK Status
Dimensions (WxDxH):
95 x 70 x 30 mm
Weight:
0.25Kg
Casing:
Aluminum Case
Mounting Options:
DIN-Rail / Wall-mount
Environmental
Operating Temperature:
-40°C to 75°C (-40°F to 167°F)
Storage Temperature:
-40°C to 85°C (-40°F to 185°F)
Relative Humidity:
5% to 95% non-condensing
MTBF
> 200,000 hrs
Regulatory Approvals
ISO9001, CE, FCC, RoHS
EMI:
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024: 2010
EMS:
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)
