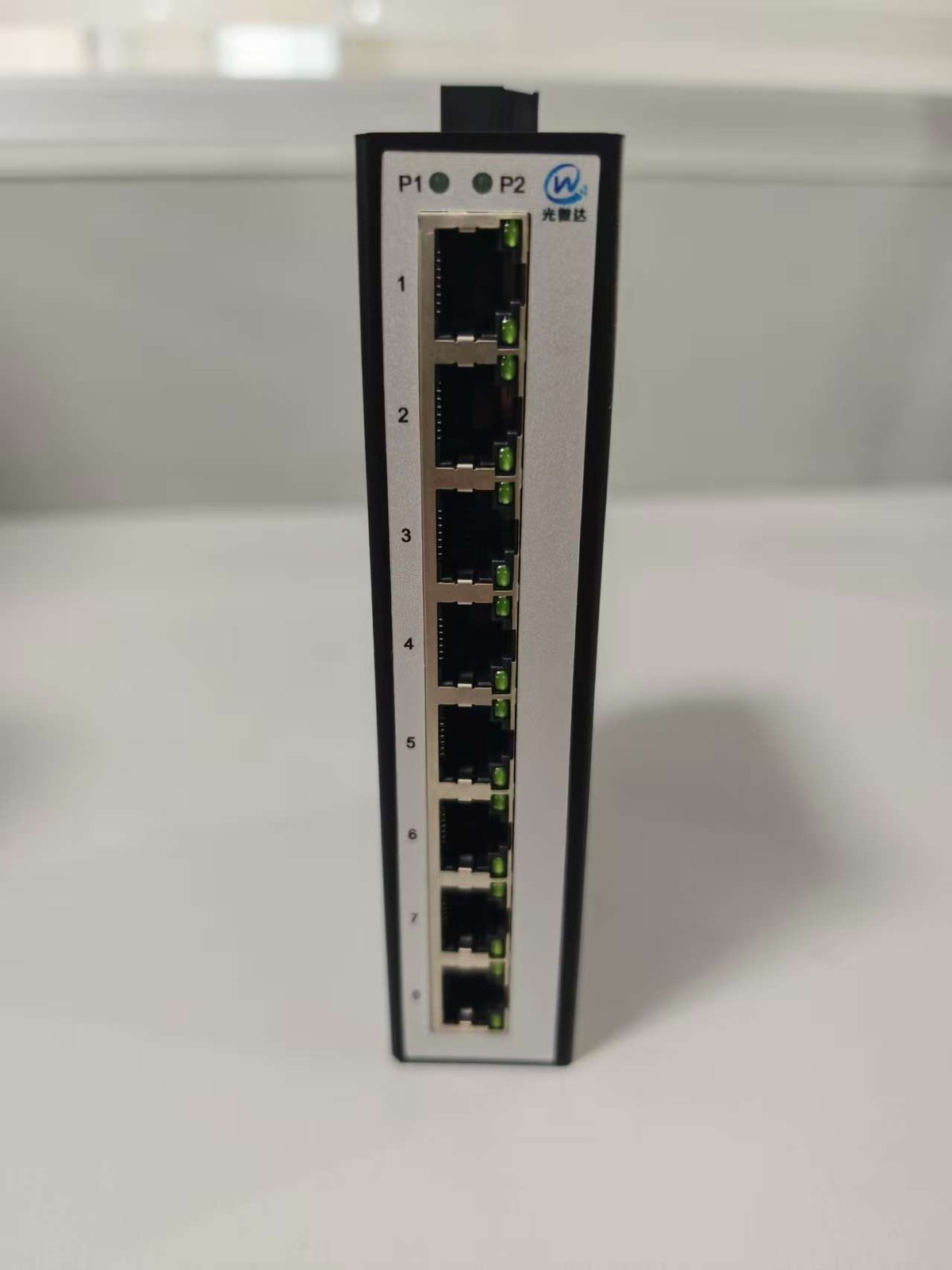

Industrial DIN-Rail Ethernet Switch
This industrial-grade unmanaged Ethernet switch is designed for reliable operation in harsh environments. It supports DIN-rail installation and stable 10/100Mbps Ethernet connectivity for industrial automation, control systems, and networking applications.
Key Features
- 8 × 10/100Base-TX Ethernet ports
- Unmanaged, plug-and-play operation
- Auto-negotiation for speed and duplex mode
- MDI/MDIX auto crossover on all Ethernet ports
- Dual DC power input redundancy (12–48VDC)
- Overload, reverse polarity, and power redundancy protection
- Fanless metal housing with natural cooling
- IP40 protection level
- Wide operating temperature: -40°C to 75°C
- DIN-rail mounting by default, wall-mount optional
Network Specifications Ethernet Ports 8 × 10/100Base-TX (RJ-45) Ethernet Standards IEEE 802.3i, IEEE 802.3u Switching Method Store and Forward MAC Address Table 2K Priority Queues 4 Jumbo Frame 2048 bytes Switching Latency <10 μs Backplane Bandwidth 2 Gbps Power Specifications Power Input Dual DC power input, 12–48VDC Power Consumption <5W Protection Overload, reverse polarity, power redundancy Mechanical Specifications Housing Metal Cooling Fanless, natural cooling Dimensions (W×H×D) 32 × 144 × 95 mm Weight ≤ 1 kg Installation DIN-rail (wall-mount optional) Protection Level IP40 Environmental Conditions Operating Temperature -40°C to 75°C Storage Temperature -40°C to 85°C Operating Humidity 5%–95% (non-condensing) Certifications
- FCC Part 15
- CISPR / EN55022 Class A
- EN 61000-4 series (ESD, EFT, Surge, RS, CS)
- EN 62368-1
This switch is suitable for industrial networking environments requiring stable Fast Ethernet connectivity and reliable power redundancy.
