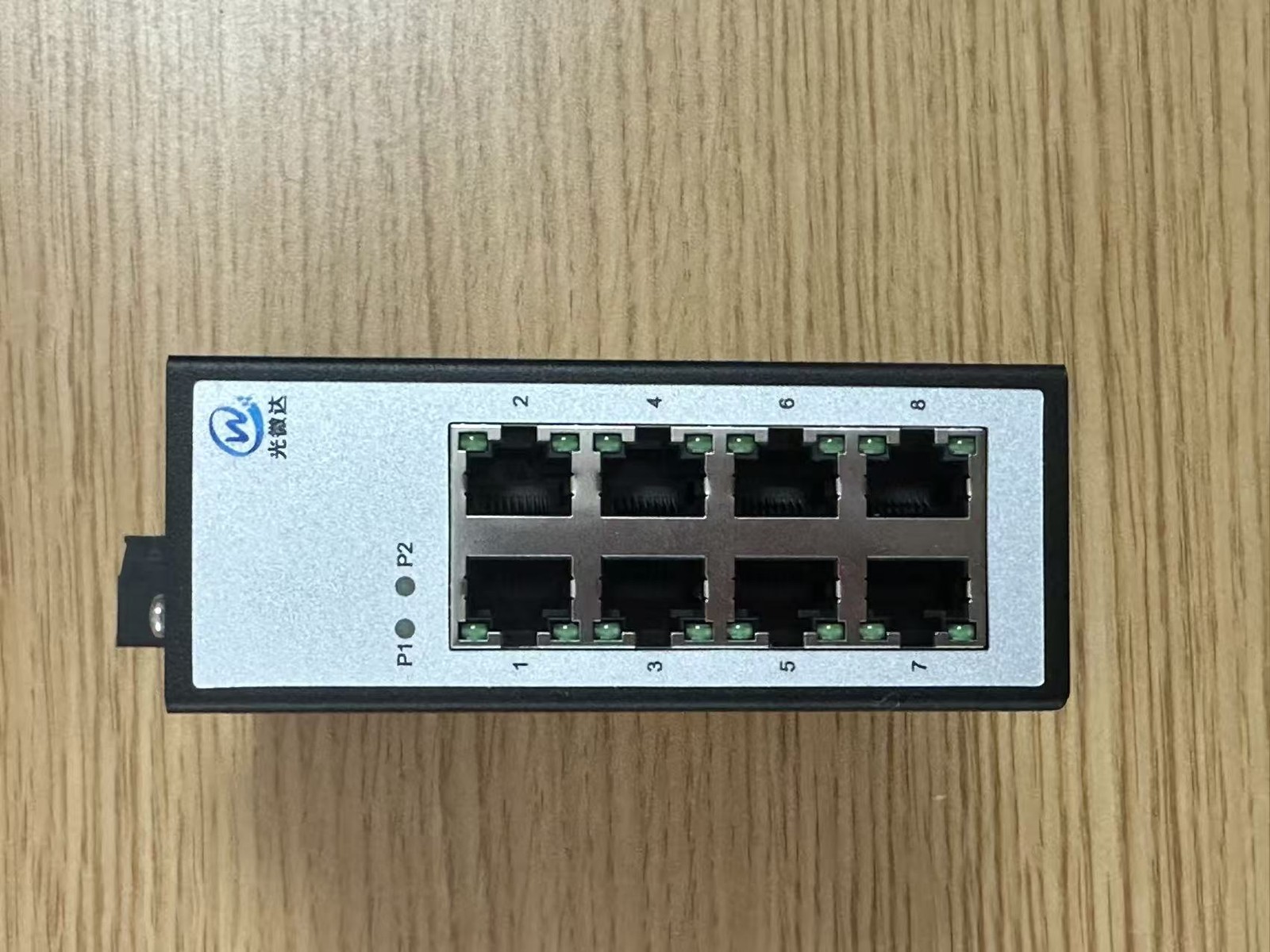

Model: LS3208S-8T-LV

Industrial-grade DIN-rail unmanaged Ethernet switch designed for stable operationin harsh environments.

Key Specifications

• Ports: 8 × 10/100Base-TX Ethernet
• Network Type: Unmanaged, Plug and Play
• Ethernet Standards: IEEE 802.3i, IEEE 802.3u
• Auto-Negotiation, Full/Half Duplex, Auto MDI/MDIX
• MAC Address Table: 2K
• Switching Method: Store-and-Forward
• Backplane Bandwidth: 2Gbps
• Switching Delay: <10μs

Power

• Power Input: DC 12–48V
• Dual Power Redundant Input
• Power Consumption: <5W
• Protection: Overload, Reverse Polarity, Redundancy Protection

Mechanical & Environmental

• Housing: Metal, IP40 Protection
• Cooling: Fanless, Natural Heat Dissipation
• Mounting: DIN-Rail (Wall Mount Optional)
• Dimensions: 43 × 110 × 84 mm
• Operating Temperature: -40°C to +75°C
• Storage Temperature: -40°C to +85°C
• Humidity: 5%–95% (Non-condensing)

Certifications

• EMI: FCC Part 15, EN55022 Class A
• EMS: EN61000-4 Series
• Safety: EN 62368-1

Warranty

5-Year Warranty

Typical Applications

• Industrial Automation
• Factory Networks
• Monitoring Systems
• Control Cabinets
