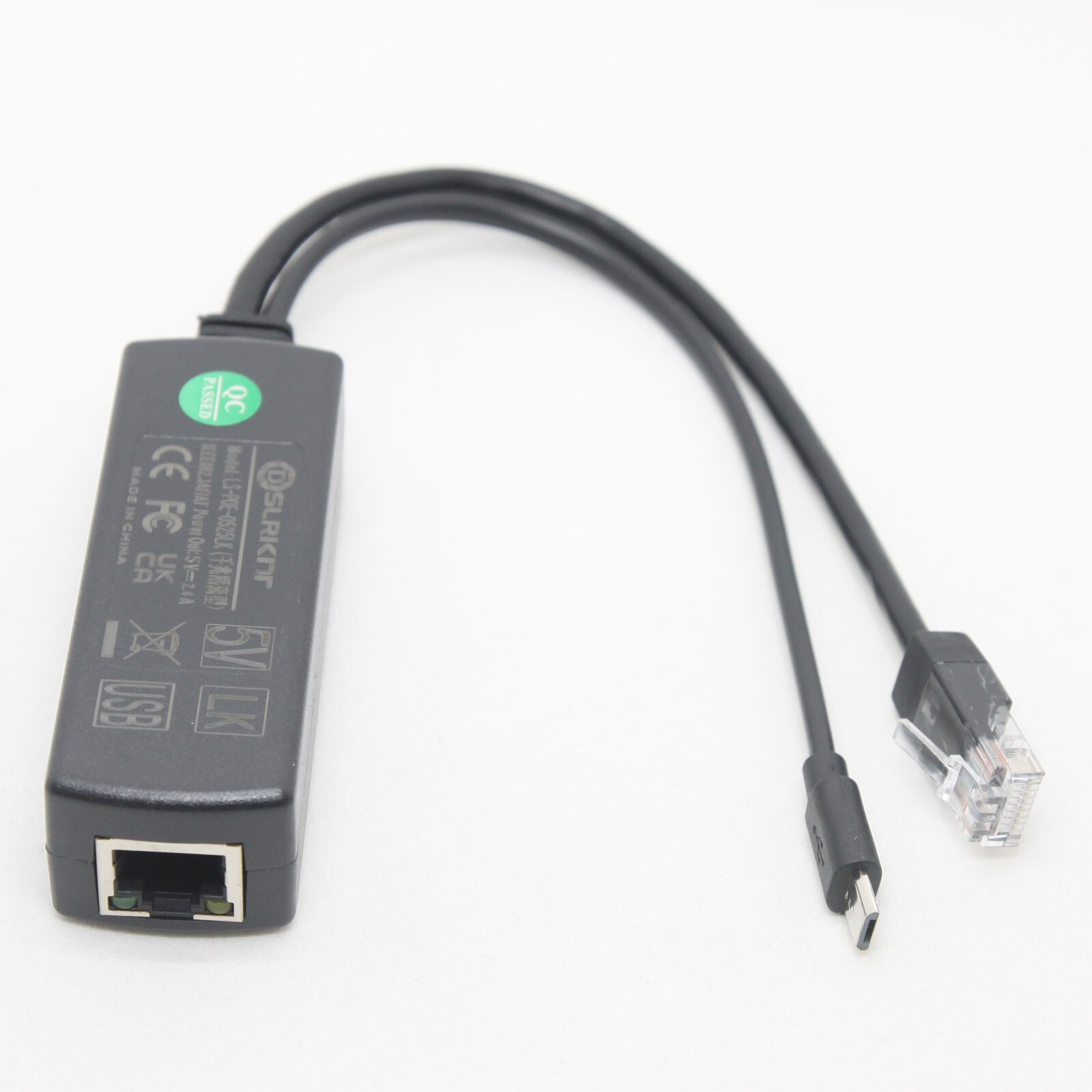

for Jetson Nano, Raspberry Pi 3B+(3B Plus), ASUS Tinker Development Board
This POE splitter must be connected with POE Switch or 48V POE Injector so that it can supply power to a connected Raspberry Pi or other Micro USB Port IN DC 5V cameras:
CompatibleIEEE 802.3af/802.3at standard POE switches(safty power supply):
8 Ports Ethernet Gigabit 8 PoE Switch 120W
5 Ports Ethernet Gigabit PoE Switch 4 PoE align="left" Note:
this POE Splitter is also suitable for household IP camera and mobile router with Micro USB Plug 5V power Port.
RJ45 female INPUT Port:
Support the IEEE 802.3af the Power over Ethernet PoE Switch
Support 48V Unsolicited Power Over Ethernet PoE Switch
Support 48V Unsolicited Power Over Ethernet PoE Adapter
Isolation: 2.5kV
Power Input: DC44~57V
Power Output: DC5V 2.4A
Data&Power INPUT Port: from RJ45 female (Compliant with IEEE802.3af/at PoE)
Data Output Port: RJ45 Male
Power Output Port: Micro USB Power Plug
Data Transfer Rate: 10/100/1000Mbps
Devices will be detected before poe input
Power Pin:support both 1/2(+/-),3/6(-/+) or 4/5(+),7/8(-)
Body size: 80 x 27x 22 mm
DC cable length：165mm
RJ45 Modular Plug cable length：155mm
Weight : 55g
Notice: Some managed intelligent Gigabit PoE switches need to set the LAN port of this connected splitter to Manual 1000Mb/s mode in the management Settings of switches, otherwise the power supply may work normally but the network connection will not work, such as the following switch, HP 3500-48G-PoE yl Switch (J8693A)
Item Included:
