This unit is open box and never used.8 Port Active Gigabit Mode A PoE Injector with 56 Volt 120 Watt Power Supply

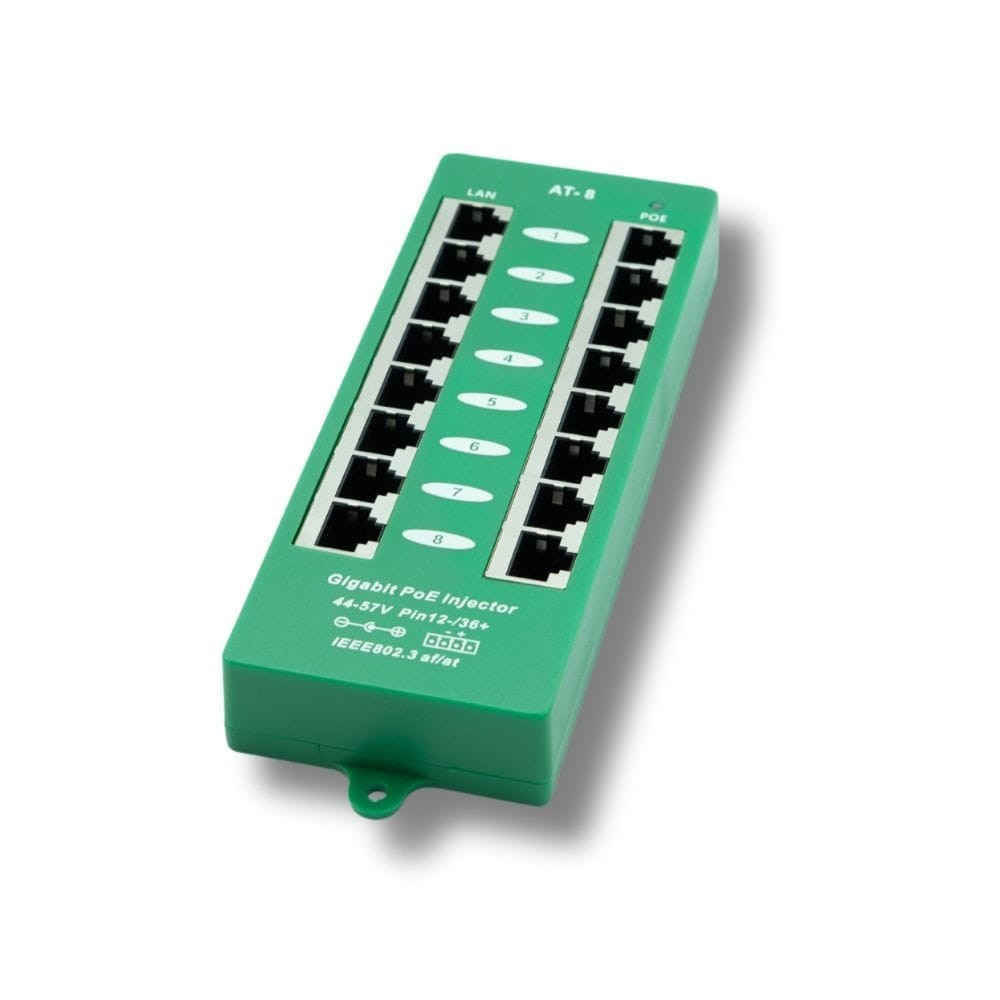

8 Port Active Gigabit Mode A PoE Injector with 56 Volt 120 Watt Power Supply
SKU AT-8-56V120W1
Quantity 1
Active PoE means the right power at the right time. An active PoE injector negotiates with the powered device to deliver the voltage needed, so there are no concerns about accidentally burning out lower powered or non-PoE devices. Power is only added to the data cable when an 802.3af or 802.3at device is connected.Product Features:Instantly upgrade your network switch to PoE+ for 802.3at devices like VOIP phones, WiFi Access Points, Cameras and More
Active negotiation protects non-PoE devices
Mode A power delivery (pins 1,2- / 3,6+)
Includes a 56 volt, 120 watt power supply
Shielded RJ45 ports
650mA self-resetting fuse / 30 watts per port
Supports 8 x 802.3af devices (up to 15 watts each) or 4 x 802.3at devices (up to 30 watts each)Product Specifications
Certifications CE, FCC, RoHS, UL (power supply)
Data + PoE Ports 8
Data Ports 8
Data Rate Gigabit
Dimensions 7 x 2.5 x 1 in.
Max Amps Per Kit 2 Amps
Max Power for Kit 120 Watts
Max. Amps Per Port 650 mA
Mount Type Wall
Operating Humidity 5% to 90%
Operating Temperature Range -10 - 60C
Output Voltage 56 volts
PoE Method Active
PoE Mode/Pinout Mode A (-1,2 +3,6)
PoE Standard 802.3at
Power Input 2.1 mm DC and Phoenix Connector 1840382
Power Supplies PS-56v120w
