Brand New

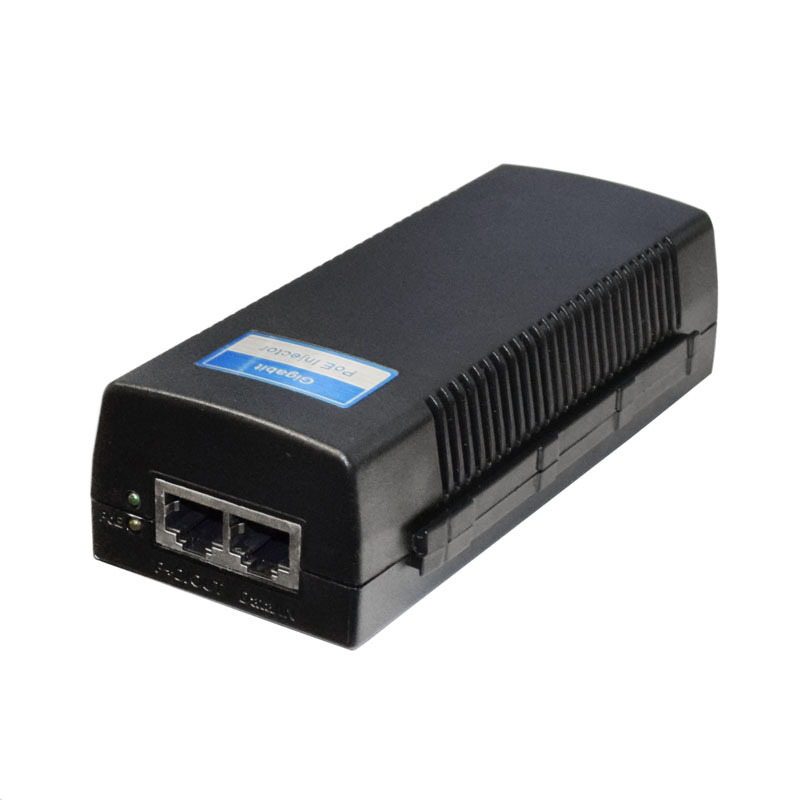

Gigabit PoE Plus Power Injector
Input AC 100V~240V
Output DC 48V / 0.65A (30W)

Part#: PT-POE-G48065

Overview:

The Gigabit PoE+ injector allows anEthernet-enabled device to be placed 328ft away from a power outlet. Ethernet terminals such as wireless LAN access point, IP phone, and web camera are powered remotely. It is especially design for outdoor networking facility and low port density installations.

Features:

• Eliminate the needs to place Ethernet-enabled device near the power outlet

• IEEE 802.3af-2003 PoE standard (2003)

• IEEE 802.3at-2009 PoE standard (PoE+ or PoE plus)

Specification:

• Category 5 pins: Pins 1 & 2, 3&6 for data. Pins 4 & 5, 7&8 for power

• Ethernet Cable: Data rate: 10/100/1000Mbps TIA/EIA5888-2. Connector: RJ-45

• PSE Power up to 30W (802.3.at type 2)

• Max current: 650mA

• Operating Temperature: 0ﾟto 50

• Storage Temperature: -40ﾟto 70ﾟ

• Operating Humidity: 10% to 80% RH

• Storage Humidity: 5% to 90% RH

• Certification: FCC/CE/RoHS

• Input Voltage: 100V~ 240V AC

• Output Voltage: 48V DC. 0.65A

Package Content:

• PoE+ Injector

• 4ft Wall plug power cable (US type)

Warranty: 1 year
