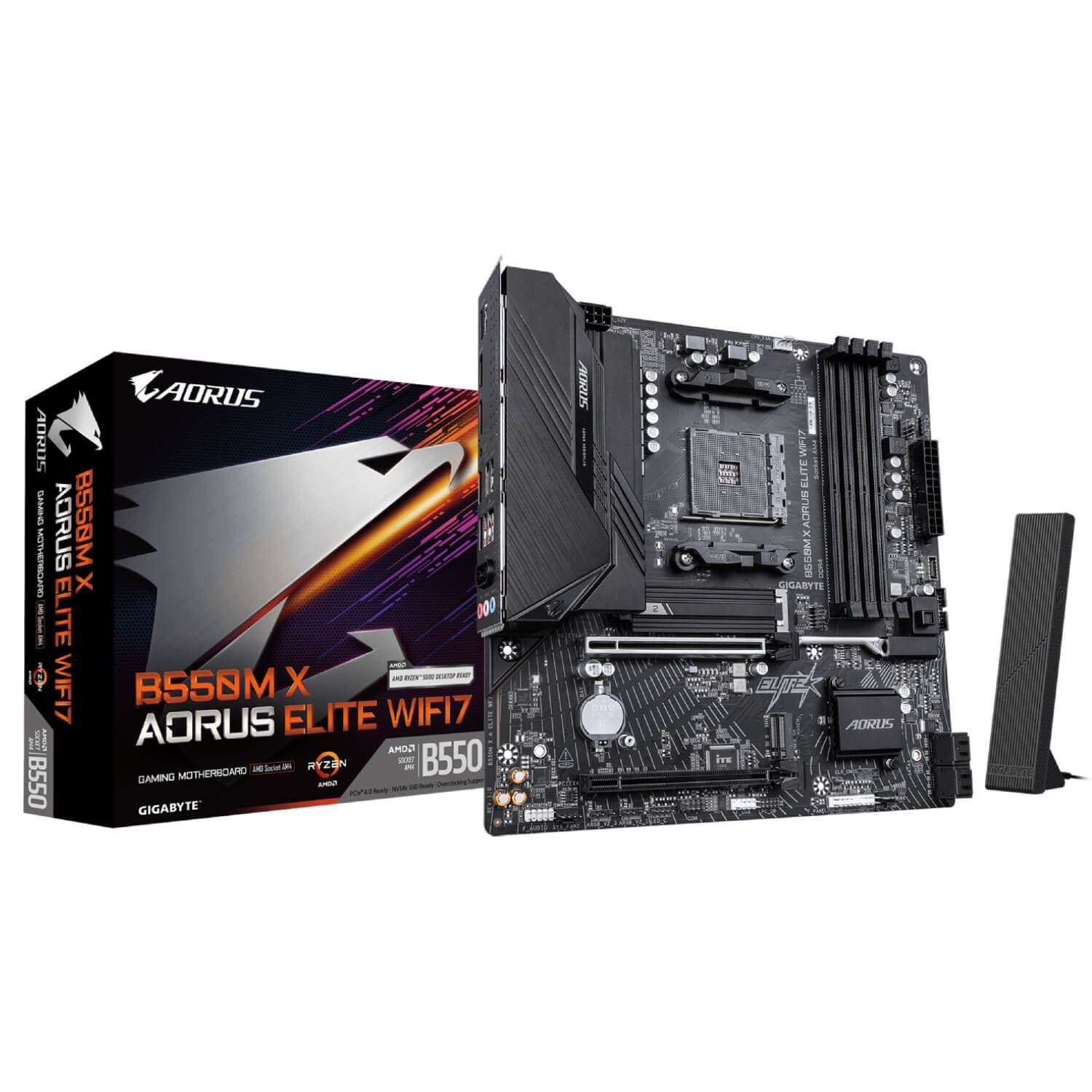

Gigabyte B550M AORUS ELITE WIFI7 AM4 Micro ATX Motherboard AMD Ryzen Gen7 WiFi
Gigabyte B550M X AORUS ELITE WiFi7 is a Micro-ATX AM4 motherboard with DDR4 support, dual M.2 storage, Wi-Fi 7, Bluetooth 5.4 and 2.5GbE LAN for compact compatible AMD Ryzen desktop and gaming systems. B550SocketAM4Memory TypeDDR4MB Form FactorMicro ATXNetwork ConnectionsLAN 2.5 Gb/s\ Wi-Fi 7 (802.11be)\ Bluetooth 5.4Graphics InterfaceHDMI\ DisplayPortUSB ConnectorUSB 2.0\ USB 3.2\ USB Type-CWirelless AdapterYesAudio O.B3 portRAID0,1,10DDR4 Slots4PCI-E x161PCI-E x16 (x4) Slot1USB Type-C2USB 3.26USB 2.04Storage InterfaceSATA3\ M.2 PCIeMB Expansion SlotsTrusted Platform Module (TPM)\ PCIe 4.0 x16\ PCIe 3.0 x16, mode x4M.2 PCIe Connectors2SATA3 Ports4InformationGigabyte B550M X AORUS ELITE WIFI7
A Micro-ATX motherboard built around the AMD B550 chipset and AM4 platform
Combines DDR4 memory, PCIe 4.0 storage, modern networking and practical assembly features for compatible AMD Ryzen systems
AMD AM4 Platform
Supports compatible AMD Ryzen 5000 Series, Ryzen 5000/4000/3000 G-Series and Ryzen 3000 Series processors
An 8+2 Twin Hybrid Digital VRM design provides power delivery for the processor and platform components
DDR4 and Dual M.2 Storage
Four DDR4 DIMM slots support up to 128GB of dual-channel system memory with XMP support
Two M.2 slots provide storage expansion, including PCIe 4.0 x4 support on the CPU-connected slot with compatible processors
Four SATA 6Gb/s connectors provide additional storage options
Wi-Fi 7 and 2.5GbE Networking
Integrated Realtek Wi-Fi 7 supports 2.4GHz, 5GHz and 6GHz bands together with Bluetooth 5.4
Realtek 2.5GbE LAN provides fast wired network connectivity
WIFI EZ-Plug simplifies connection of the wireless antenna
Wi-Fi 7 features require Windows 11 SV3, while 6GHz availability depends on local regulations
Cooling and Thermal Design
VRM Thermal Armor Advanced and M.2 Thermal Guard help manage heat around key motherboard components
Smart Fan 6 provides four PWM or DC fan headers with support for fan and pump control
DIY-Friendly Features
PCIe EZ-Latch Plus provides convenient single-click graphics card release
Q-Flash Plus allows BIOS updates without installing a CPU, memory or graphics card
Flexible Connectivity
Rear connectivity includes HDMI, DisplayPort, USB Type-C and USB 3.2 interfaces
Realtek ALC1220 audio provides up to 7.1-channel HD Audio support
RGB Fusion support includes one RGB LED header and three addressable RGB headers
