Notes:
A. The battery is not included and Customs don't allow.
B.If the motherboard can't work correctly, please first check your CPU whether can be compatible with our motherboard, then check your video card or power supply.
C.Please DO NOT use single-side memory, most motherboards can't support such memory.
D. We DO use genuine brand memory, please do not use fake memory or if you're not sure whether your memory fake or not, please do not try it on our motherboard.

Package include:1* motherboard2* SATA cables1* I/O back panel.

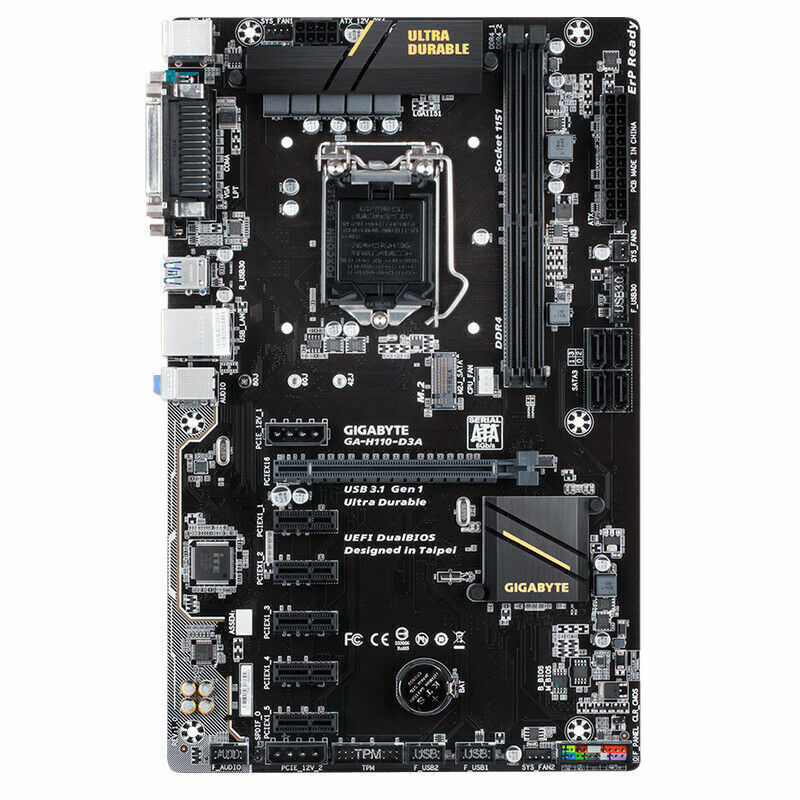

Motherboard Introduction:

Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package

L3 cache varies with CPU

Intel® H110 Express Chipset

2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

Dual channel memory architecture

Support for DDR4 2400/2133 MHz memory modules

Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules
* To support 2400 MHz or XMP memory, you must install a 7th generation processor.

1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

Realtek® ALC887 codec

High Definition Audio

2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

Support for S/PDIF Out

1. 1 x PCI Express x16 slot, running at x16
   (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
2. 5 x PCI Express x1 slots
   (All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)

1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA SSD support)
2. 4 x SATA 6Gb/s connectors
   * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

1. 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 2 x PCIe power connectors
4. 1 x CPU fan header
5. 3 x system fan headers
6. 4 x SATA 6Gb/s connectors
7. 1 x M.2 Socket 3 connector
8. 1 x front panel header
9. 1 x front panel audio header
10. 1 x S/PDIF Out header
11. 1 x USB 3.1 Gen 1 header
12. 2 x USB 2.0/1.1 headers
13. 1 x Trusted Platform Module (TPM) header
14. 1 x Clear CMOS jumper

1. 1 x PS/2 mouse port
2. 1 x PS/2 Keyboard port
3. 1 x parallel port
4. 1 x serial port
5. 1 x D-Sub port
6. 2 x USB 3.1 Gen 1 ports
7. 2 x USB 2.0/1.1 ports
8. 1 x RJ-45 port
9. 3 x audio jacks (Line In, Line Out, Mic In)

1. iTE® I/O Controller Chip

1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Overheating warning
5. Fan fail warning
6. Fan speed control
   * Whether the fan speed control function is supported will depend on the cooler you install.

2 x 64 Mbit flash

Use of licensed AMI UEFI BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1. Support for APP Center
   * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
   3D OSD
   @BIOS
   Ambient LED
   AutoGreen
   Cloud Station
   EasyTune
   Fast Boot
   ON/OFF Charge
   Smart TimeLock
   Smart Keyboard
   Smart Backup
   System Information Viewer
   USB Blocker
2. Support for Q-Flash
3. Support for Xpress Install

1. Windows® 10 64-bit (for 7th Generation Intel® Processors)
2. Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)
   * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7

1. ATX Form Factor; 30.5cm x 19.0cm
