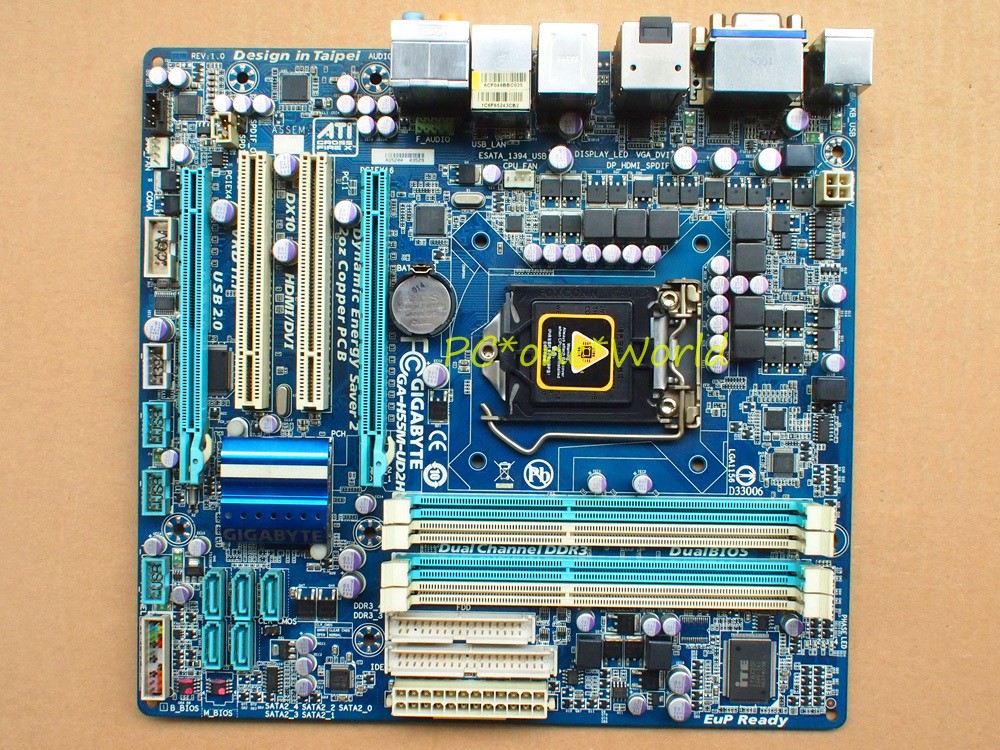

Welcome to our storeDear valued buyer, thank you for viewing our items.
We will provide you the best service and high quality products.
Each motherboard will be tested before shipping, we ensure it 100% working, and with safty package.
You must be happy to do business with us.

Warm Tips

1. Please do usegenuinebrand RAM, this motherboard can't work with fake RAM.2. If the motherboard can't run correctly, please first check your CPU whether can be compatible with our motherboard.3. Most of "can't boot" problem was caused by RAM, please don't use "single side" RAM.Sepcifiction

CPU

1. Support for an Intel® Core™ i7 series processor/Intel® Core™ i5 series processor/ Intel® Core™ i3 series processor in the LGA1156 package
2. L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

Chipset

1. Intel® H55 Express Chipset

Memory

1. 4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note 1)
2. Dual channel memory architecture
3. Support for DDR3 2200+/1800/1600/1333/1066/800 MHz memory modules
4. Support for non-ECC memory modules
5. Support for Extreme Memory Profile (XMP) memory modules

* To reach DDR3 2200 MHz and above, you are required to use with Intel Core i7/Core i5 CPU without HD Graphics and install a discrete graphics card.
When using Intel Core i5/Core i3/ Pentium CPU with HD Graphics, the maximum memory speed supported is 1666 MHz
* Please refer "Memory Support List" for more information.

Onboard Graphics

Integrated in the Chipset:

1. 1 x D-Sub port (Note 2)
2. 1 x DVI-D port (Note 2) (Note 3) (Note 4)
3. 1 x HDMI port(Note 2) (Note 4)
4. 1 x DisplayPort (Note 2) (Note 4)

Audio

1. Realtek ALC889 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF In/Out
5. Support for CD In

LAN

1. 1 x RTL8111D chip (10/100/1000 Mbit)

Expansion Slots

1. *1 x PCI Express x16 slot, running at x16 (PCIEX16) (Note 5)
   (The PCIEX16 slot conforms to PCI Express 2.0 standard.)
2. *1 x PCI Express x16 slot, running at x4 (PCIEX4) (Note 6)
3. 2 x PCI slots

Multi-Graphics Technology

1. Support for ATI CrossFireX™ technology(Note 6)

Storage Interface

Chipset:

1. 5 x SATA 3Gb/s connectors supporting up to 5 SATA 3Gb/s devices
2. 1 x eSATA 3Gb/s connector on the back panel supporting up to 1 SATA 3Gb/s device

JMicron JMB368 chip:

1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices

iTE IT8720 chip:

1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive

USB

1. Integrated in the Chipset
2. Up to 12 USB 2.0/1.1 ports (6 on the back panel, 6 via the USB brackets con- nected to the internal USB headers)

IEEE 1394

1. T.I. TSB43AB23 chip
2. Up to 2 IEEE 1394a ports (1 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector
2. 1 x 4-pin ATX 12V power connector
3. 1 x floppy disk drive connector
4. 1 x IDE connector
5. 5 x SATA 3Gb/s connectors
6. 1 x CPU fan header
7. 1 x system fan headers
8. 1 x front panel header
9. 1 x front panel audio header
10. 1 x CD In connector
11. 1 x S/PDIF In header
12. 1 x S/PDIF Out header
13. 3 x USB 2.0/1.1 headers
14. 1 x IEEE 1394a header
15. 1 x serial port header
16. 1 x clearing CMOS jumper

Back Panel Connectors

1. 1 x PS/2 keyboard or PS/2 mouse port
2. 1 x D-Sub port (Note 2)
3. 1 x DVI-D port (Note 2) (Note 3) (Note 4)
4. 1 x HDMI port (Note 2) (Note 4)
5. 1 x DisplayPort(Note 2)(Note 4)
6. 1 x IEEE 1394a port
7. 1 x optical S/PDIF Out connector
8. 6 x USB 2.0/1.1 ports
9. 1 x eSATA 3Gb/s connector
10. 1 x RJ-45 port
11. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/ Side Speaker Out/Line In/Line Out/Microphone)

I/O Controller

1. iTE IT8720 chip

H/W Monitoring

1. System voltage detection
2. CPU/System temperature detection
3. CPU/System/Power fan speed detection
4. CPU overheating warning
5. CPU/System/Power fan fail warning
6. CPU/System fan speed control (Note 7)

BIOS

1. 2 x 64 Mbit flash
2. Use of licensed AWARD BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features

1. Support for @BIOS
2. Support for Q-Flash
3. Support for Xpress BIOS Rescue
4. Support for Download Center
5. Support for Xpress Install
6. Support for Xpress Recovery2
7. Support for EasyTune
8. Support for Dynamic Energy Saver™ 2
9. Support for Smart 6™
10. Support for Auto Green
11. Support for Q-Share

Form Factor

1. MicroATX Form Factor; 24.4cm x 23cm

Remark

1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

Note

(Note 1) Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
(Note 2) To use the onboard D-Sub, DVI-D, HDMI, and DisplayPort ports, you must install an Intel CPU with integrated graphics.
(Note 3) The DVI-D port does not support D-Sub connection by adapter.
(Note 4) You can use only one of the onboard digital graphics ports (e.g. DisplayPort, HDMI, and DVI-D) for output when in the BIOS Setup program or when during the POST screens.
(Note 5) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(Note 6) The PCIEX16 slot operates at up to x4 mode when ATI CrossFireX™ is enabled.
(Note 7) Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
(Note 8) Available functions in EasyTune may differ by motherboard model.

AccessoriesPlease note only the following accessories come with the mobo:

• 1 x motherboard
• 2 x SATA cables
• 1 x I/O back panel

Shipping & Handling

Item will be shipped within 1-2 working days (business days) after full payment is received

To USA,AUS,CA,UK,EU,Europe,will be shipped by via air mail service,need around 10-25 days.and other countries need around 15-35 days.In case you haven't recieved the packet, please check with your local post office first, because the packet will arrive there. Duo to different country, some local post office can't offer more detailed tracking status in time, it perhaps only show the shipment infor just left Hong Kong.

If you want to get it fast(4-7 days),Please choose expedited shipping,It must add 18-30us shipping fee (according to your country).

Please note, it maybe bring the customs tax, please understand these fees were not included in your payment, these fees will be collected by the delivery company, when sign for the packet. Please inquire your country customs office about the tax before perchasing.

Custom tax

• Please note we're unable to take any responsibility for any custom delay or tax. The fees of import duty/tax are not included in the item price or shipping fee, these are the buyer's responsibility.
• Please check with your local custom office to determine what these additional costs would be before payment. And these fees are normally collected by the delivery company, when you pick up item.

Return PolicyDear friend, the warranty is 90 days, in case the mobo exist problem, and you want to refund or replace, plase read this before purchased.

• Refund: Refund can be accepted in 90 days after you signed the package. Please send back the item in original package with all the accessories in it. When you shipped back, please give us tracking number. Generally speaking,refund or replacement will be made upon receipt of the returned item.
• Replace: Replace can be accepted in 90 days after you signed the package. Please send back the item in original package, needn't return any accessories. When you shipped back, please give us the tracking number. We'll resend another mobo to you, as soon as we got the returned package.
• Both shipping cost: The cost of item shipping back is buyer's responsibility, the resend shipping cost is seller's.
• Wrong order: Dear friend, I think you have thought over before bought the item. But in case you got a wrong mobo, please first check out your order form, whether we sent a wrong mobo or your ordered a wrong mobo. Please note if you order wrong, we don't accept the refund or replace.


Customer Service

• we sincerely do business with you. If you satisfy with our service and products, please leave us positive response. Your recognition is our power to move forward, especially to a beginner like us. Your great comments will lead us to get more potential customers, and make us more confident to develop business and serve you better.
• But if you don't satisfy with the item, or you have any concern about our transaction, please do first contact us, we will response you in 24 hours, and do our best to help you solve any problems.
• All communications are handled through Email. We strive to answer all emails as quickly as possible
