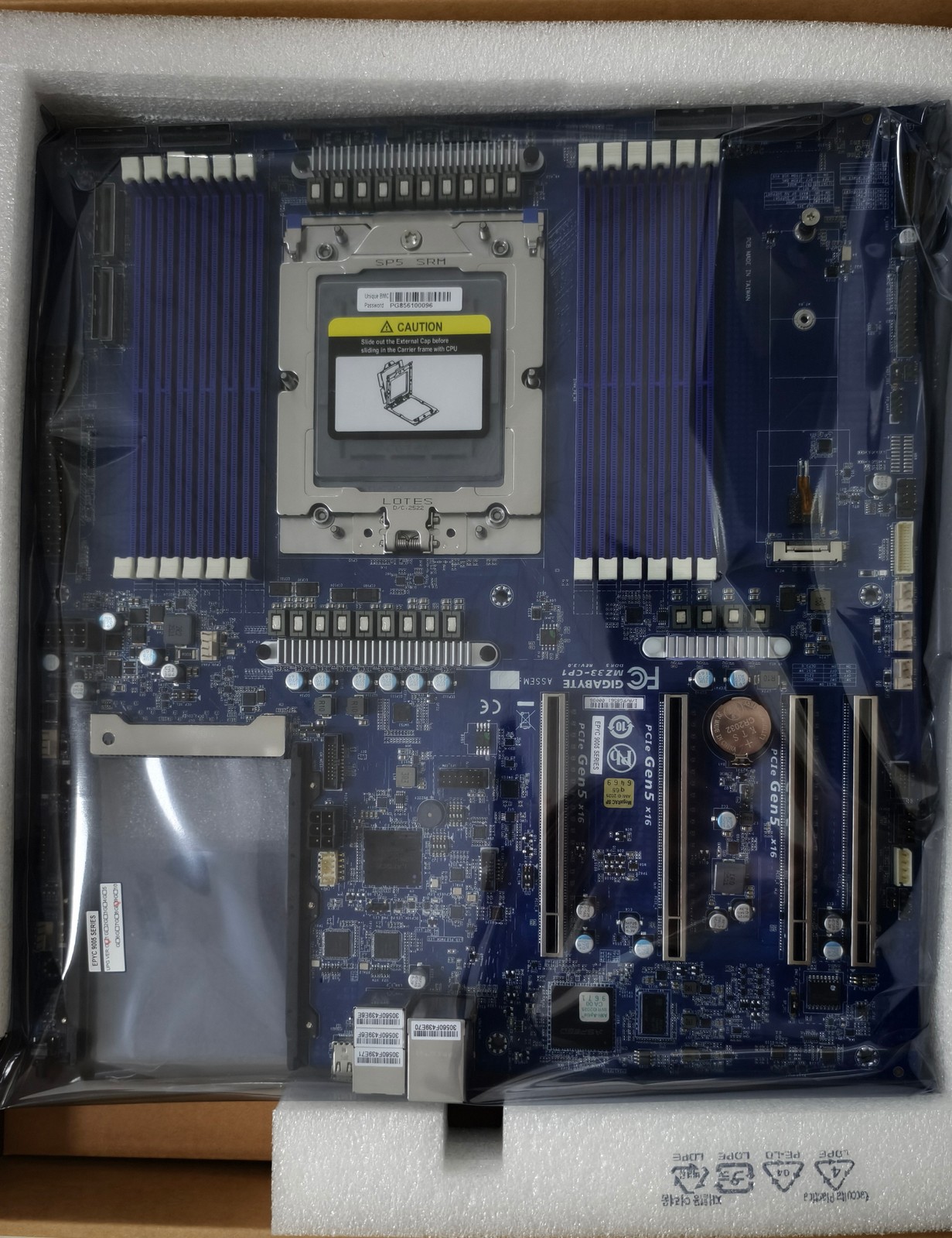

Form Factor (WxD, mm)
E-ATX
304.8 x 330.2
Processor Supported
AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors
Single processor, cTDP up to 500W
Socket
1 x LGA 6096
Socket SP5
Chipset Description
System on Chip
Memory Type
12 x DIMM slots
DDR5 memory supported
12-Channel memory architecture
AMD EPYC™ 9005:
RDIMM: Up to 6000 MT/s
AMD EPYC™ 9004:
RDIMM: Up to 4800 MT/s
Integrated Network
2 x 1Gb/s LAN (2 x Intel®I210-AT)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Integrated Video Controller
Integrated in Aspeed®AST2600
- 1 x Mini-DP
Integrated Audio Controller
N/A
Storage Interface
MCIO:
4 x MCIO 8i for 8 x Gen5 NVMe
2 x MCIO 8i for 4 x Gen4 NVMe or 16 x SATA
M.2:
1 x M.2 (2280/22110), PCIe Gen3 x4
Support RAID Function
N/A
PCIe Expansion Slots
Slot_6: PCIe x16 (Gen5 x16)
Slot_4: PCIe x16 (Gen5 x16)
Slot_2: PCIe x16 (Gen5 x16)
Slot_1: PCIe x16 (Gen4 x16)
1 x OCP NIC 3.0 (Gen5 x16)
- Supports NCSI function
4 x MCIO 8i (Gen5 x8)[1]
2 x MCIO 8i (Gen4 x8 or SATA)[2]
[1]Please refer to the optional parts for qualified cables to ensure Gen5 signal quality.
[2]The connector supports SATA by default. To enable the other option, please refer to the manual and adjust the settings in the BIOS.
On-Board Connector
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connector
1 x 4-pin 12V standby power connector
1 x CPU fan header
5 x System fan headers
1 x USB 3.2 Gen1 x2 header
1 x USB 2.0 x2 header
1 x M.2 slot
6 x MCIO 8i connectors
1 x Front panel header
1 x Backplane board header
1 x PMBus header
1 x IPMB header
1 x TPM header
Rear I/O Connectors
2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
2 x RJ45 ports
1 x MLAN port
1 x ID button with LED
Security Modules
1 x TPM header with SPI interface
-OptionalTPM2.0 kit:CTM012
OS Driver Supported
Please refer to OS compatibility table in support page
Server Management
Aspeed®AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
·Dashboard
·HTML5 KVM
·Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
·Sensor Reading History Data
·FRU Information
·SEL Log in Linear Storage / Circular Storage Policy
·Hardware Inventory
·Fan Profile
·System Firewall
·Power Consumption
·Power Control
·Advanced power capping
·LDAP / AD / RADIUS Support
·Backup & Restore Configuration
·Remote BIOS/BMC/CPLD Update
·Event Log Filter
·User Management
·Media Redirection Settings
·PAM Order Settings
·SSL Settings
·SMTP Settings
PSU Connector
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connector
1 x 4-pin 12V standby power connector
Operating Properties
Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Bundle
1 x MZ33-CP1
1 x I/O shield
1 x Quick start guide
1 x MCIO 8i to 8 x SATA 6Gb/s cable (600mm)
Single Box dimensions: 409 x 355 x 78 mm
Carton dimensions: 729 x 415 x 432 mm
Quantity: 10 x single boxes in one carton
Bulk Packaging Content
10 x MZ33-CP1
10 x I/O shields
Carton dimensions: 600 x 473 x 517 mm
Ordering Information
Retail: 9MZ33CP1MR-000-3*
Bulk: 9MZ33CP1NR-000-3*
Part Numbers:
- I/O shield: 12AIO-MS33CP-00R
- MCIO 8i to 8 x SATA cable (600mm): 25CF9-600721-M0R
Optional parts:
- MCIO 8i to 2 x MCIO 4i cable (550mm):
