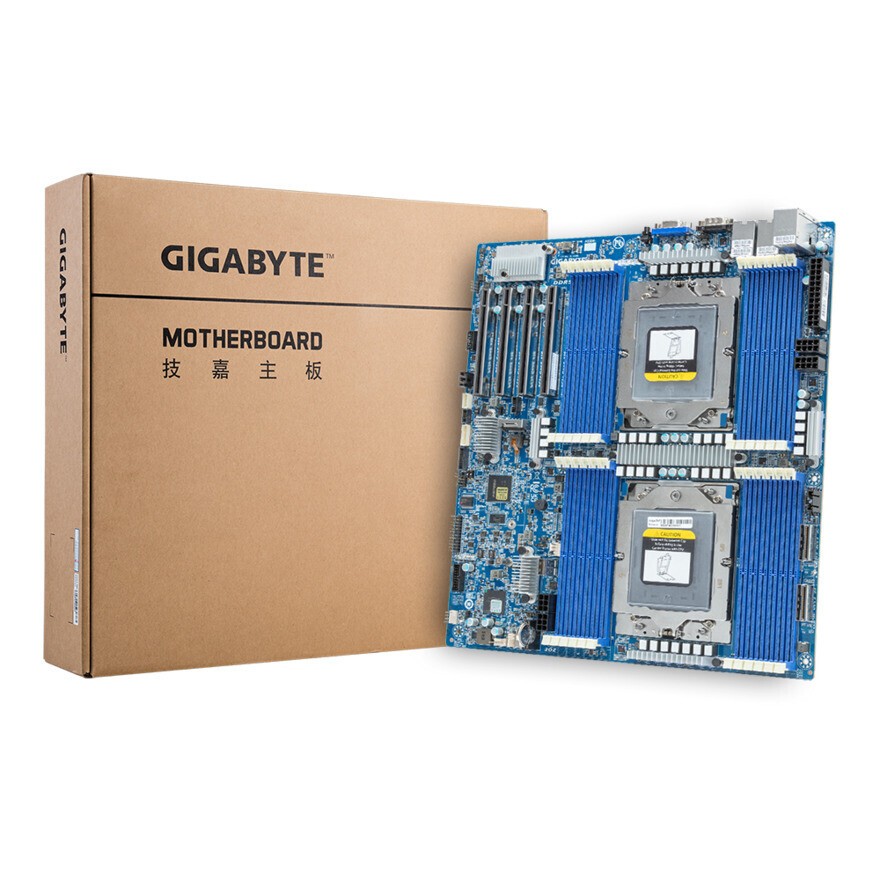

Gigabyte MZ73-LM0（rev. 2.0）With 2x AMD EPYC GENOA 9474F 3.6 GHz CPU 2x 32GB RAM
Package include:
1X Gigabyte MZ73-LM0（rev. 2.0）Motherboard
2x AMD EPYC Genoa 9474F CPU
2x (SK/ HNIX / SAMSUNG) DDR5 ECC 16GB 4800MHZ (IN TOTAL 32GB)
Mainboard
Board Size
E-ATX，304.8W x 335.2D mm
Processor Supported
AMD EPYC™ 9004 series processors
AMD EPYC™ 9004 series processors with AMD 3D V-Cache™ Technology
Dual processor, 5nm technology
Up to 128-core, 256 threads per processor
cTDP up to 400W
Socket
2 x LGA 6096, Socket SP5
Memory Type
24 x DIMM slots
DDR5 memory supported only
12-Channel memory architecture per processor
RDIMM modules up to 128GB supported
3DS RDIMM modules up to 256GB supported
Memory speed: Up to 4800 MHz
Integrated Network
2 x 10Gb/s BASE-T LAN ports (1 x Broadcom®BCM57416)
NCSI function supported
1 x 10/100/1000 management LAN
Integrated Video Controller
Integrated in Aspeed®AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Integrated Audio Controller
N/A
Integrated SAS Controller
N/A
Integrated SATA Controller
1 x SlimSAS 4i with 4 x SATA 6Gb/s ports, from CPU_0
2 x MCIO 8i with 4 x Gen5 NVMe or 16 x SATA ports, from CPU_1
Support RAID Function
N/A
Expansion Slot
Slot_4: 1 x PCIe x16 (Gen5 x16 bus) slot. from CPU_0
Slot_3: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU_0
Slot_2: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU_1
Slot_1: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU_1
1 x M.2 slot:
- M-key
- PCIe Gen4 x4, from CPU_0
- Supports 2280/22110 cards
2 x MCIO 8i with 4 x Gen5 NVMe or 16 x SATA ports, from CPU_1
On-Board Connector
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
2 x 6-pin ATX 12V power connector
2 x MCIO 8i connectors
1 x M.2 slot
2 x CPU fan headers
4 x System fan headers
1 x USB 3.2 Gen1 header
1 x TPM header
1 x Front panel header
1 x HDD backplane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x Buzzer
Rear I/O Connectors
2 x USB 3.2 Gen1
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit:CTM010
PSU Connector
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
2 x 6-pin ATX 12V power connector
Operating Properties
Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
AMD EPYC™ 9474FGeneral SpecificationsPlatformServerProduct FamilyAMD EPYC™Product LineAMD EPYC™ 9004 Series# of CPU Cores48# of Threads96Max. Boost ClockUp to 4.1GHzAll Core Boost Speed3.95GHzBase Clock3.6GHzL3 Cache256MB1kU Pricing6,780 USDDefault TDP360WAMD Configurable TDP (cTDP)320-400WCPU SocketSP5Socket Count1P/2PLaunch Date11/10/2022ConnectivityPCI Express® VersionPCIe 5.0 x128System Memory TypeDDR5Memory Channels12System Memory SpecificationUp to 4800MHzPer Socket Mem BW460.8 GB/s
