Form Factor (WxD, mm)

E-ATX
304.8 x 335.2

Processor Supported

AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors

Dual processor, cTDP up to 500W[1]

[1]To support 500W CPUs, please select verified fansinks from the "Optional parts" section and ensure all fan power connectors (4pin+3pin for each fan) are properly connected.

[Note]If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

Socket

2 x LGA 6096
Socket SP5

Chipset Description

System on Chip

Memory Type

24 x DIMM slots
DDR5 memory supported
12-Channel memory per processor

AMD EPYC™ 9005:
RDIMM: Up to 6000 MT/s

AMD EPYC™ 9004:
RDIMM: Up to 4800 MT/s

Integrated Network

2 x 10Gb/s LAN (1 x Broadcom®BCM57416)
- Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Integrated Video Controller

Integrated in ASPEED®AST2600
- 1 x VGA port

Integrated Audio Controller

N/A

Storage Interface

MCIO:
2 x MCIO 8i for 4 x Gen5 NVMe or 16 x SATA, from CPU_1

SlimSAS:
1 x SlimSAS 4i for 4 x SATA, from CPU_0

M.2:
1 x M.2 (2280/22110), PCIe Gen5 x4, from CPU_0

Support RAID Function

N/A

PCIe Expansion Slots

Slot_4: PCIe x16 (Gen5 x16), from CPU_0
Slot_3: PCIe x16 (Gen5 x16), from CPU_0
Slot_2: PCIe x16 (Gen5 x16), from CPU_1
Slot_1: PCIe x16 (Gen5 x16), from CPU_1

2 x MCIO 8i (PCIe Gen5 x8 or SATA), from CPU_1[1][2]

[1]Please contact technical support for qualified cables to ensure Gen5 signal quality.

[2]The connector supports SATA by default. To enable the other option, please refer to the manual and adjust the settings in the BIOS.

On-Board Connector

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
3 x 6-pin ATX 12V power connectors
2 x CPU fan headers (4pin)
2 x CPU fan headers (3pin)
4 x System fan headers
1 x USB 3.2 Gen1 x2 header
1 x M.2 slot
2 x MCIO 8i connectors
1 x SlimSAS 4i connector
1 x Front panel header
1 x Backplane board header
1 x PMBus connector
1 x IPMB connector
1 x TPM header

Rear I/O Connectors

2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
1 x COM port
2 x RJ45 ports
1 x MLAN port
1 x ID button with LED

Security Modules

1 x TPM header with SPI interface
-OptionalTPM2.0 kit:CTM012

OS Driver Supported

Please refer to OS compatibility table in support page

Server Management

ASPEED®AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

·HTML5 KVM

·Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)

·Sensor Reading History Data

·FRU Information

·SEL Log in Linear Storage / Circular Storage Policy

·Hardware Inventory

·Fan Profile

·System Firewall

·Power Consumption

·Power Control

·Advanced power capping

·LDAP / AD / RADIUS Support

·Backup & Restore Configuration

·Remote BIOS/BMC/CPLD Update

·Event Log Filter

·User Management

·Media Redirection Settings

·PAM Order Settings

·SSL Settings

·SMTP Settings

PSU Connector

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
3 x 6-pin ATX 12V power connectors

Operating Properties

Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Packaging Bundle

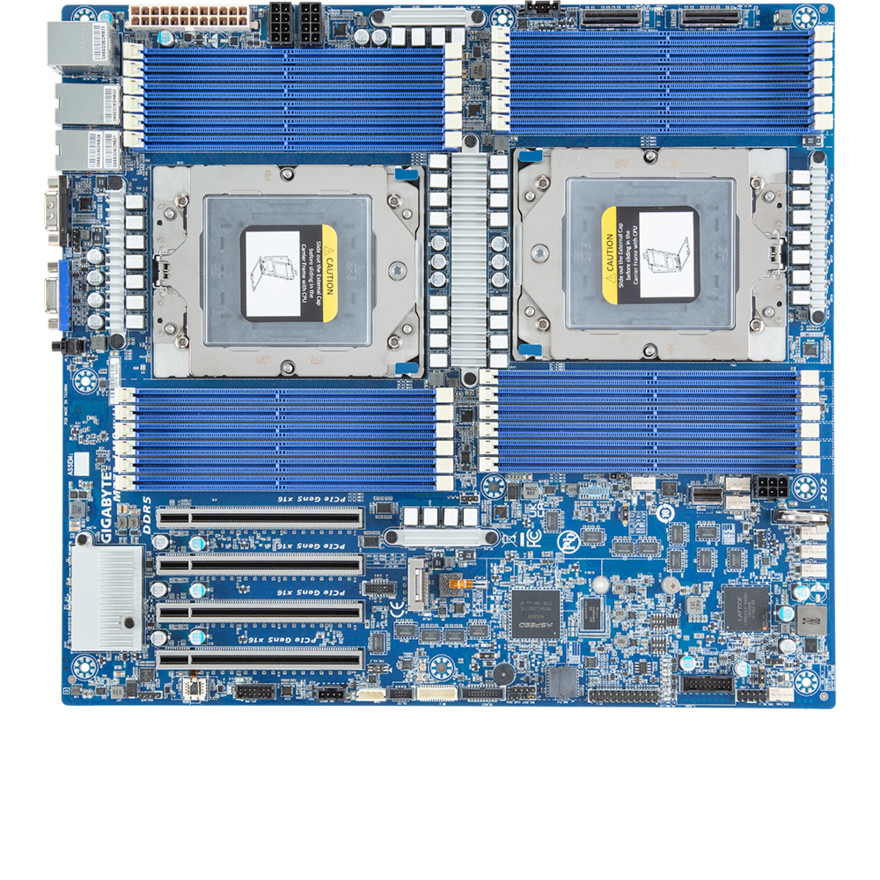

1 x MZ73-LM2
1 x I/O shield
1 x Quick start guide
1 x SlimSAS 4i to 4 x SATA cable (600mm)

Single Box dimensions: 409 x 355 x 78 mm
Carton dimensions: 729 x 415 x 432 mm
Quantity: 10 x single boxes in one carton

Bulk Packaging Content

10 x MZ73-LM2
10 x I/O shields

Carton dimensions: 600 x 473 x 517 mm

Ordering Information

Retail: 9MZ73LM2MR-000-3*
Bulk: 9MZ73LM2NR-000-3*

Part Numbers:

- I/O shield: 12AIO-MZ73L1-00R
- SlimSAS 4i to 4 x SATA cable (600mm): 25CFM-600800-A4R

Optional parts:

- 500W CPU fansink: Terms
