Why bought from us?
Dear customers, if you read our this page, please continue to have a glance at me, I think you will be glad to select our items. We test the motherboard, check the BIOS, enter to window OS, run CPU-Z and 3DMark, to ensure all the parts no defect or DOA. You can buy it at ease.About the package:
We'll seal combo parts in an anti-electrostatic plastic bag with anti-blushing agent, then put it into a safe box.About the warranty:
Our parts have 90 days warranty, please note the following reason we don't accept returns:
A. Bought a wrong item.
B. Ruin the item on purpose.
C. The parts burned by technical mistake when assemble the PC.
D. The parts didn't buy from us. All our parts have warranty label and hidden marks on them, to distinguish our items from others'.

Technical Tips:

A. Please do not use fake memory or if you're not sure whether your memory fake or not, please do not try it on our motherboard.
B. Please check your CPU, and RAM without problem, then install on the motherboard.
C. If the motherboard can't run correctly, please first check your CPU whether can be compatible with our motherboard, then check your video card or power supply.
D. 90% "can't boot" problem was caused by RAM, please don't use "single side" RAM.(Please view the following picture)

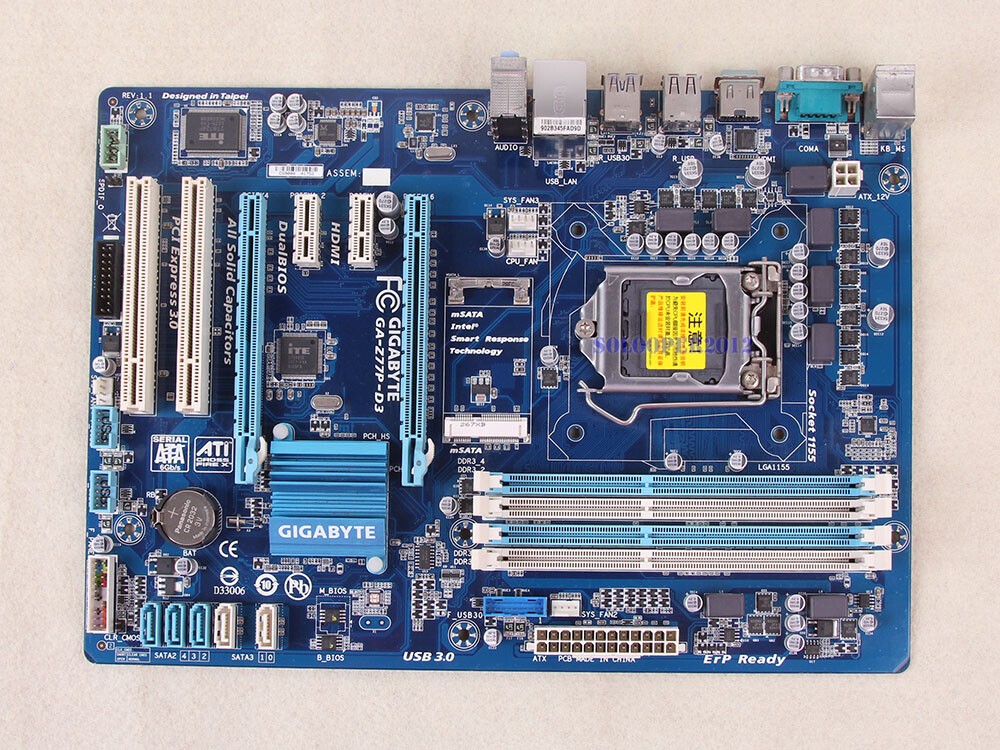

Motherboard specifics:

Packet Included:
1 x motherboard.
1 x I/O back panel.
2 x generic SATA II cables.Product Details:

1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
2. L3 cache varies with CPU

(Some Intel® Core™ processors require a graphic card, please refer "CPU support List" for more information.)

1. Intel® Z77 Express Chipset

1. 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
   * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
2. Dual channel memory architecture
3. Support for DDR3 2800(OC)/1600/1333/1066 MHz memory modules
4. Support for non-ECC memory modules
5. Support for Extreme Memory Profile (XMP) memory modules

(Please refer "Memory Support List" for more information.)

Integrated Graphics Processor:

1. 1 x HDMI port, supporting a maximum resolution of 1920x1200

1. Realtek ALC887 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
4. Support for S/PDIF Out

1. Realtek 8111F LAN chip (10/100/1000 Mbit)

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
   (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
   * The PCI Express x16 slot supports up to PCI Express 2.0 standard when an Intel 32nm (Sandy Bridge) CPU is installed.
2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
3. 2 x PCI Express x1 slots
   (The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
4. 2 x PCI slots

1. Support for AMD CrossFireX™ technology

Chipset:

1. 2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices
2. 3 x SATA 3Gb/s connectors (SATA2 2/3/4) supporting up to 3 SATA 3Gb/s devices
3. 1 x mSATA connector
4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
   * When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.

Chipset:

1. Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
   * In Windows XP, the Intel USB 3.0 ports can support up to USB 2.0 transfer speed.
2. Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB header)

1. 1 x 24-pin ATX main power connector
2. 1 x 4-pin ATX 12V power connector
3. 2 x SATA 6Gb/s connectors
4. 3 x SATA 3Gb/s connectors
5. 1 x mSATA connector
6. 1 x CPU fan header
7. 3 x system fan headers
8. 1 x front panel header
9. 1 x front panel audio header
10. 1 x S/PDIF Out header
11. 1 x USB 3.0/2.0 header
12. 2 x USB 2.0/1.1 headers
13. 1 x Clear CMOS jumper
14. 1 x Trusted Platform Module (TPM) header

1. 1 x PS/2 mouse port
2. 1 x PS/2 Keyboard port
3. 1 x serial port
4. 1 x HDMI port
5. 2 x USB 3.0/2.0 ports
6. 4 x USB 2.0/1.1 ports
7. 1 x RJ-45 port
8. 3 x audio jacks (Line In/Line Out/Microphone)

1. iTE I/O Controller Chip

1. System voltage detection
2. CPU/System temperature detection
3. CPU/System fan speed detection
4. CPU overheating warning
5. CPU/System fan fail warning
6. CPU/System fan speed control
   * Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.

1. 2 x 64 Mbit flash
2. Use of licensed AMI EFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1. Support for at BIOS
2. Support for Q-Flash
3. Support for Xpress Install
4. Support for Xpress Recovery2
5. Support for eXtreme Hard Drive (X.H.D)
6. Support for Auto Green
7. Support for ON/OFF Charge
8. Support for Q-Share
9. Support for LAN Optimizer (Intelligent optimization network management tool)

1. ATX Form Factor; 30.5cm x 21.5cm

1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

Shipping:

Economy:

Country Agent Estimate time USA Economy Shipping 8-18 business days Canada,Australia,NewZealand Economy Shipping 10-20 business days UK,Germany,France Economy Shipping 10-25 business days Other EuropeCountry Economy Shipping 10-25 business days Other Country Economy Shipping 10-25 business days
Expedited :
Country

Agent
Estimate time USA Expedited Shipping 3-5 business days Canada,Australia,NewZealand Expedited Shipping 3-7 business days UK,Germany,France Expedited Shipping 3-6 business days Other EuropeCountry Expedited Shipping 3-6 business days Other Country Expedited Shipping 4-8 business days

Custom Tax:

Please note we're unable to take any responsibility for any custom delay or tax. The fees of import duty/tax are not included in the item price or shipping fee, these are the buyer's responsibility.
Please check with your local custom office to determine what these additional costs would be before payment. And these fees are normally collected by the delivery company, when you pick up item.

Support:

We answer emails Mon-Fri. Please allow up to 48 hours for us to respond. All emails are answered! If you do not receive a response, please resend your email. Sometimes Spam filters prevent emails from being properly delivered. If you do not receive a response after a second request, please provide an alternative email address for us to respond to. No one is EVER ignored!
