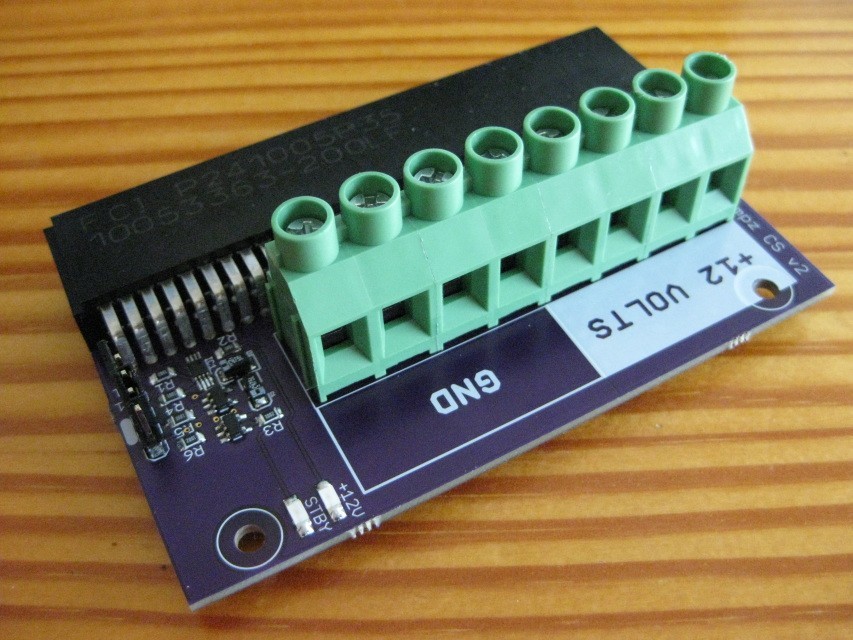

The Gigampz CS v2.1 breakout board is compatible with HP Common Slot power supplies (DPS-1200FBA, etc...) typically used to power a server. It offers a high quality inexpensive way to power devices requiring 12 volt power such as Bitcoin mining equipment and electronics projects. It also offers optional easy remote monitoring and control via a Raspberry Pi.
Remote Monitoring & ControlYou can control the Gigampz manually using the included jumper or you can hook it up to your controller of choice to remotely monitor it's status and switch it on and off. The Gigampz is compatible with popular devices such as Raspberry Pi, Arduino, Beagleboard, micro-controllers, and similar devices. The Gigampz uses 3.3v logic and its inputs are 5v tolerant.
CompatibilityThe Gigampz CS is compatible with any HP Common Slot power supply. Including the following part numbers:
Model: DPS-1200FB Ap/n: 438202-002, 440785-001, 441830-001Description: 900/1200 Watts bronze efficiency
Model: HSTNS-PL11p/n: 438203-001, 490594-001, 498152-001Description: 900/1200 Watts silver efficiency
Model: DPS-1200FB-1 Ap/n: 570451-101, 570451-001, 579229-001Description: 900/1200 Watts platinum efficiency
Model: DPS-1200SB Ap/n: 643956-101, 643933-001, 660185-001Description: 900/1200 Watts platinum efficiency
Model: HSTNS-PL30p/n: 643933-001, 643956-201, 660185-001Description: 900/1200 Watts platinum efficiency
Electrical SpecificationThe screw terminals on this board are 7.62mm pitch and rated for up to 30 Amps per terminal. There are 4 power / ground pairs. Each terminal can accept up to 4 size 16 AWG wires or 6 size 18 AWG wires.
* Power supply, wires, and Raspberry Pi not included.
