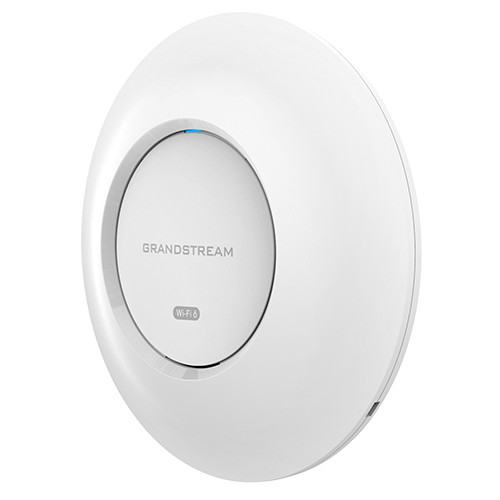

PRODUCT TITLEGrandstream GWN7660E Wi-Fi 6 Access Point 3Gbps 802.11ax PoE+PRODUCT OVERVIEWGrandstream GWN7660E Enterprise-Grade Wi-Fi 6 Access PointPRODUCT TYPE / CATEGORY

• Networking
• Wireless Access Points

KEY FEATURES

• 3Gbps aggregate wireless throughput and 1 Gigabit wireline port
• Dual-band 2.4G 2x2:2 and 5G 3x3:2 MU- MIMO with OFMDA and XTRA Range technology
• Up to 175-meter coverage range
• Supports 256 concurrent Wi-Fi client devices
• Advanced QoS to ensure real-time performance of low-latency applications
• Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
• Self-power adaptation upon auto-detection of PoE or PoE+
• Embedded controller can manage up to 50 local GWN series APs; GDMS Networking offers unlimited AP management; GWN Manager offers premise-based software controller
• Technical Specification
• Wi-Fi Standards: IEEE 802.11 a/b/g/n/ac/ax
• Antennas: 5 individual internal antennas
• 2.4GHz x 2, gain 4.0dBi
• 5 GHz x 3, gain 5.0dBi
• Wi-Fi Data Rates: 5G: IEEE 802.11ax: 7.3 Mbps to 2402 Mbps;
• IEEE 802.11ac: 6.5 Mbps to 867 Mbps;
• IEEE 802.11n: 6.5Mbps to 300Mbps;
• IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 2.4G: IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps;

TECHNICAL SPECIFICATIONS

• Brand: Grandstream
• Model: GWN7660E
• Product Type: Wireless Access Points
• 3Gbps aggregate wireless throughput and 1 Gigabit wireline port
• Dual-band 2.4G 2x2:2 and 5G 3x3:2 MU- MIMO with OFMDA and XTRA Range technology
• Up to 175-meter coverage range
• Supports 256 concurrent Wi-Fi client devices
• Advanced QoS to ensure real-time performance of low-latency applications
• Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
• Self-power adaptation upon auto-detection of PoE or PoE+
• Embedded controller can manage up to 50 local GWN series APs; GDMS Networking offers unlimited AP management; GWN Manager offers premise-based software controller
• Wi-Fi Standards: IEEE 802.11 a/b/g/n/ac/ax
• Antennas: 5 individual internal antennas
• 2.4GHz x 2, gain 4.0dBi
• 5 GHz x 3, gain 5.0dBi
• Wi-Fi Data Rates: 5G: IEEE 802.11ax: 7.3 Mbps to 2402 Mbps;
• IEEE 802.11ac: 6.5 Mbps to 867 Mbps;
• IEEE 802.11n: 6.5Mbps to 300Mbps;
• IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 2.4G: IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps;
• IEEE 802.11b: 1, 2, 5.5, 11 Mbps;
• IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps Note: Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network
• Frequency Bands: 2.4GHz radio: 2400-2483.5MHz
• 5GHz radio: 5150-5850MHz
• Channel Bandwidth: 2.4G: 20 and 40 MHz
• 5G: 20,40,80 and 160MHz
• Wi-Fi and System Security: WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
• MIMO: 2x2:2 2.4GHz
• 3x3:2 5GHz
• Coverage Range: Up to 175 meters
• Maximum TX Power: 5G: 24dBm
• 2.4G: 24dBm

INTENDED USE / APPLICATIONS

• Outdoor or indoor wireless networking, as specified
• Point-to-point or point-to-multipoint deployments where compatible
• Professional network installations
