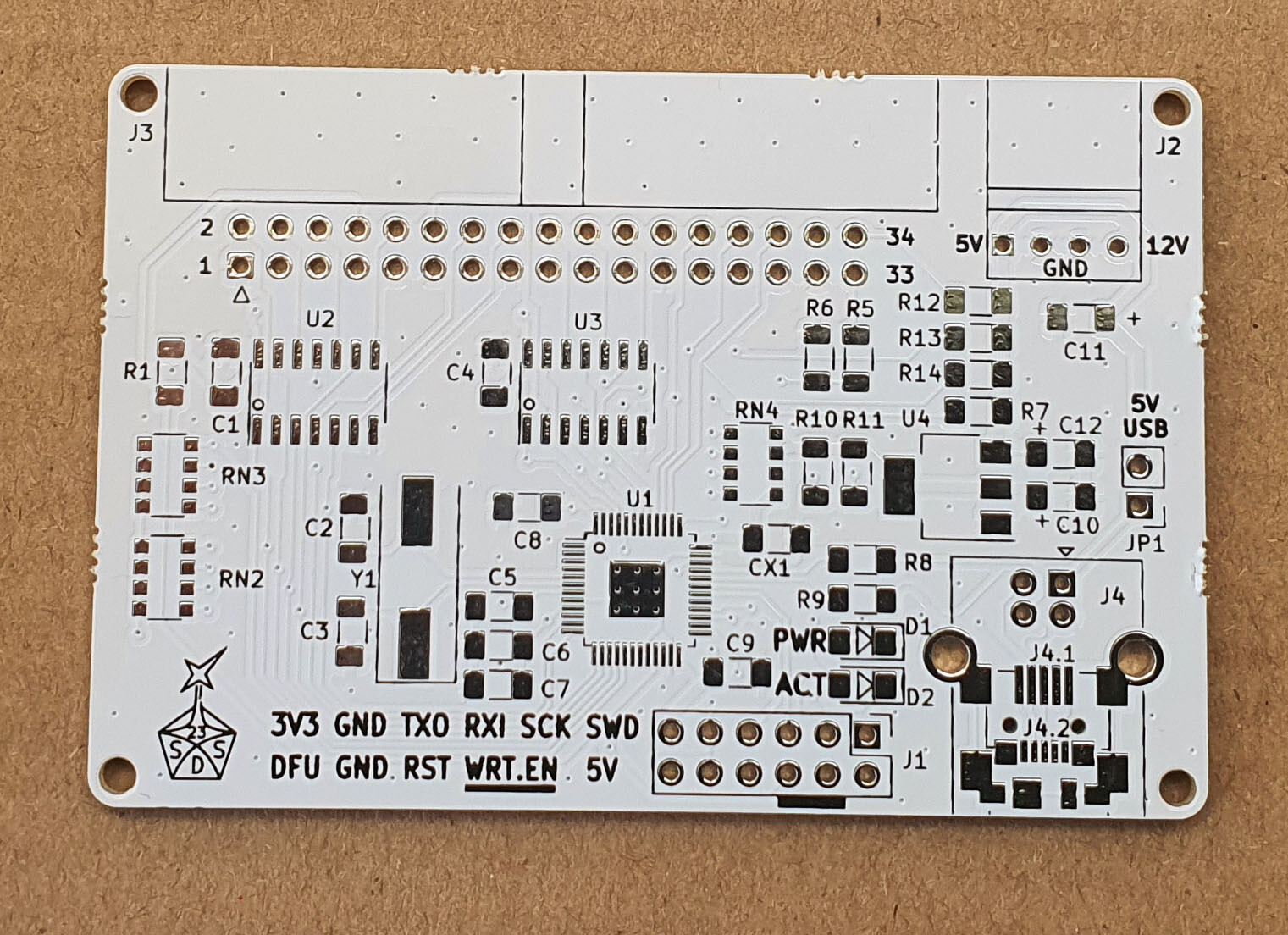

Greaseweazle V4 Plus board -- DIY-friendly
The listing is for TWO boards. If you purchase more than one set, shipping is combined.
What is different from Greaseweazle V4:

• All passive elements use larger components (size 1206) and larger soldering pads for easier DIY
• Additional jumper (JP1) fixes Gteaseweazle V4 PCB problem where external power supply and your computer's 5V USB are bridged together, this can be damaging to your USB port. Remove jumper to use external power supply, put it back for USB power.

• The layout allows you can install USB Micro, USB-Mini, or USB-B connector. If you use USB-B or Mini, be sure to insulate the bottom of the connector so it does not bridge traces on the PCB.
• JP2 on the back connects USB connector shield to the ground (same as original V4). You can cut through it if you do not want USB connector grounded.


Schematic and bill of materials -- see pictures. BOM uses mid-range components. Assembled GreaseWeazle devices available for purchase on the web use the cheapest resistors,capacitors, and resonator, that is one reason why I made this board.Most components are in stock at mouser.comArterytek AT32F415CCT7 and connectors can be sourced from AliExpressDo not use BOM from the project site, it uses components of different size.Assembled device picture is for reference only.Original project flashing is done over USB DFU, no additional hardware is combined if you order more than 1 board.I ship same day.
