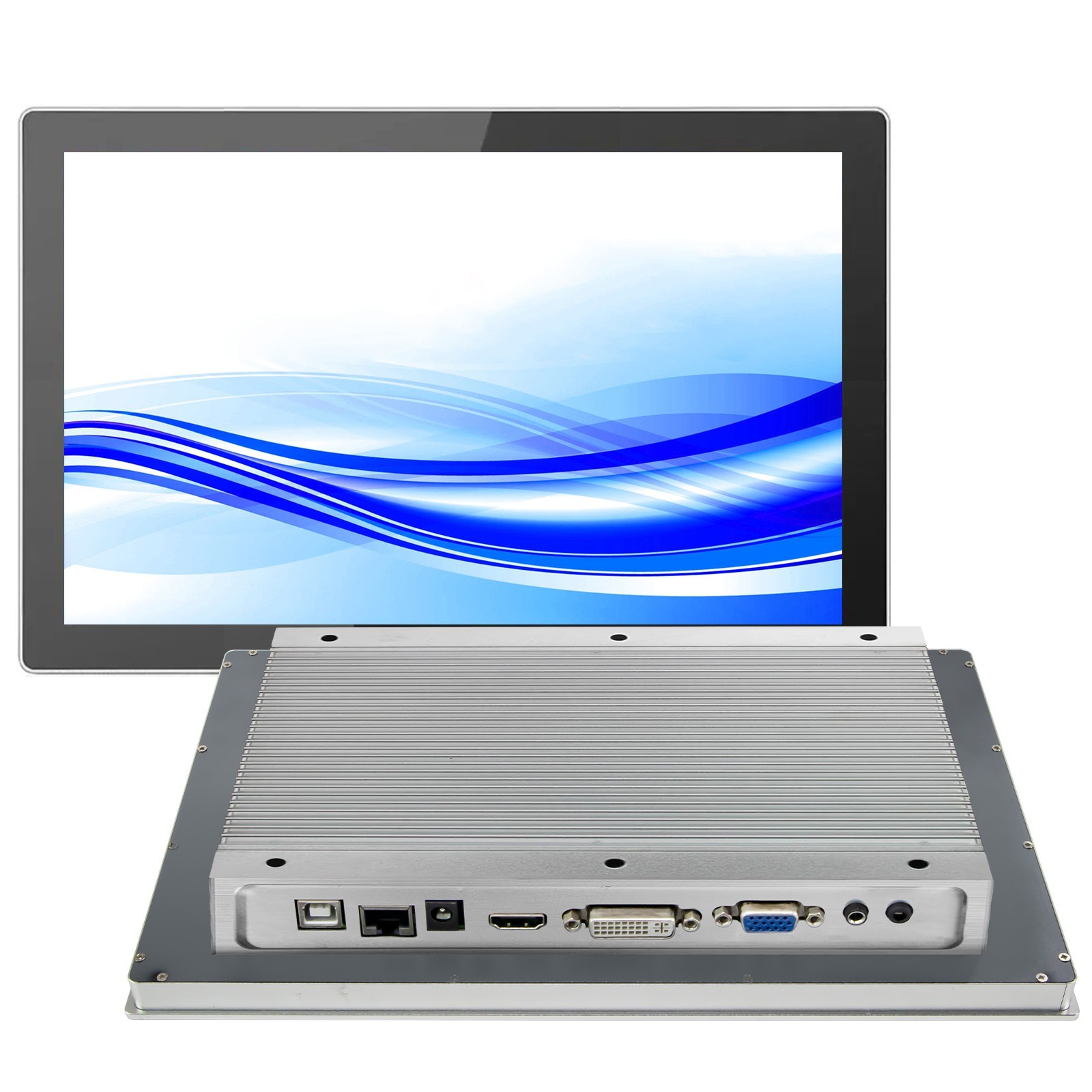

The GreenTouch's 101HSSJ LCD Panel mount touch monitor is a touch solution developed for automated information systems, gaming and entertainment, as well as light industrial automation controls, making GreenTouch's touchmonitor product line even more complete.The101HSSJ touch monitor is based on the concept "Design for simple and convenience", with proven GreenTouch expertise and reliability. Precise small frame design will be completely sealed touch screen, so that it has dust-proof, dirt-proof and water-proof function, and make it easier for customers to install 101HSSJ in the cabinet. Designed and built by GreenTouch, the model has a long life cycle Period and can supply long-term demands. Even if the future replacement of a new generation of LCD panels, you do not need to do external changes.
Main advantages :
1.Rugged Design: Crafted with a durable aluminum frame, providing a modern and professional aesthetic.Engineered for durability, it can withstand drops, shocks, and harsh conditions, perfect for industrial use.
2.Precise Multi-Touch Capability : Enjoy seamless, accurate multi-touch performance with Projected Capacitive (PCAP) technology. The monitor supports up to 10 touch points, making it ideal for interactive applications, kiosks, and point-of-sale systems.
3.RICH INTERFACES - Coming with HDMI , VGA , DVI and Audio interfaces to meet different needs of various professional display application.
4.Fanless and Silent Design: silent operation and no need for extra cooling devices, ultra-energy-efficient. The back shell of this embedded touchscreen monitor is made of aluminum alloy to maximize heat dissipation
5.STABILITY - Using our own touchscreens combine with our technology , everything is designed to work together and tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF (demonstrated).
Specifications :
The display size : 251.8mm(W) x170.8 mm(H),Thickness: 30 mm
Color:Silver
Display type:Active matrix TFT LCD , LED backlight
Resolution:1280 X 800 @ 60HZ
Display colors:16.7M
Brightness:400 cd/m²
Contrast ratio:1000 : 1
Power:External DC, input voltage DC12V
View angel (from center):L/R:85/85;U/D:85/85 (Typ.)(CR≥10)
Ratio:16:10
Sweep frequency Horizontal: 31.5 - 60.2 kHz; vertical: 56.3 - 75 Hz
Mounting options:100mm or 75mm VESA mounting, Panel mounted
Operation temperature : -20℃~70℃
Storage temperature : -30℃~ 70℃
Operating Humidity:20% to 80% RH (no condensation)
Storage Humidity:10% to 90% RH
