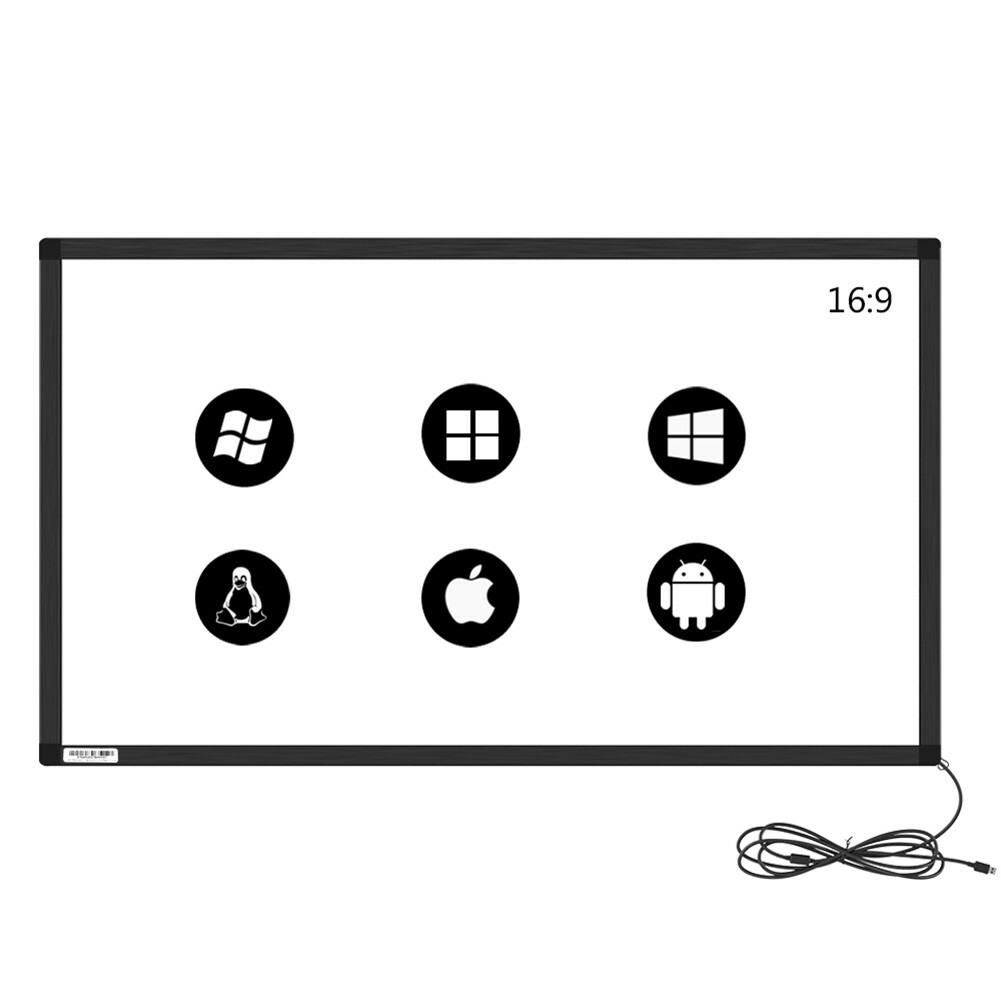

GreenTouch Interactive Infrared Touch Screen Overlay kits offer a true multi-touch experience transforming any screen or surface into an interactive display. Whether it’s a new touch display installation, or retrofitting touch to an existing screen, video wall or table, an Interactive Touch Frame is the perfect choice.

Industrial Aluminum Frame

Strong , Durable , No Rust

Narrow and thin Frame

Package using strong paper tube, the inside packing list:

• 4 pcs touch frames
• 8 screws and cover
• A installation manual
• A screwdriver (gift)

Engineering Drawing

• ELECTRICAL

1. Power Supply: Single USB Connection
2. Low Power Consumption: Operating ≤2W, Stand By ≤ 250mW
3. ESD: Contact Discharge 8kV,Air Discharge 15kV,15kV on USB connector pins

• ENVIRONMENT

1. Operating Temperature: -20°C~70°C
2. Storage Temperature: -40°C~85°C
3. Operating Humidity: 10%~90%RH(Non-condensing)
4. Storage Humidity: 10%~90%RH

Standard Size86 inchMinimum Touch Object4mmFrames per SecondUp to 450 fpsTypical Response Time3-10msOperating SystemsDriver free for Windows7, Windows8, Windows10, Native Linux, Native Android (Compatible with GreenTouch Android Box). Single point under MacLight Transmission100% without glassOperating VoltageUSB DC + 5V +/- 5%ProtocolsHID,TUIO,FlashFault ToleranceWorkable even 75% sensors are damagedNote 1Don't support Android Smart TVNote 2If you use the frame on a small TV or monitor (Such as 65 inch frame , 43 inch TV ) , we will provide new firmware to make it work correctly

PIN Connection Stable Signal Transmission .

• Put frames on a clear surface
• A-A ,B-B,C-C,D-D
• Make each pin to the hole
• Tighten the screws

Popular Market Sectors :

• Education , Fashion Stores
• Restaurants , Museums
• Government , transport
• Healthcare , Automotive

High Quality Resolution 32768*32768

Sunlight-Resistant

The alloy plug is more durable and the USB recognition is 3 times faster than the normal USB
