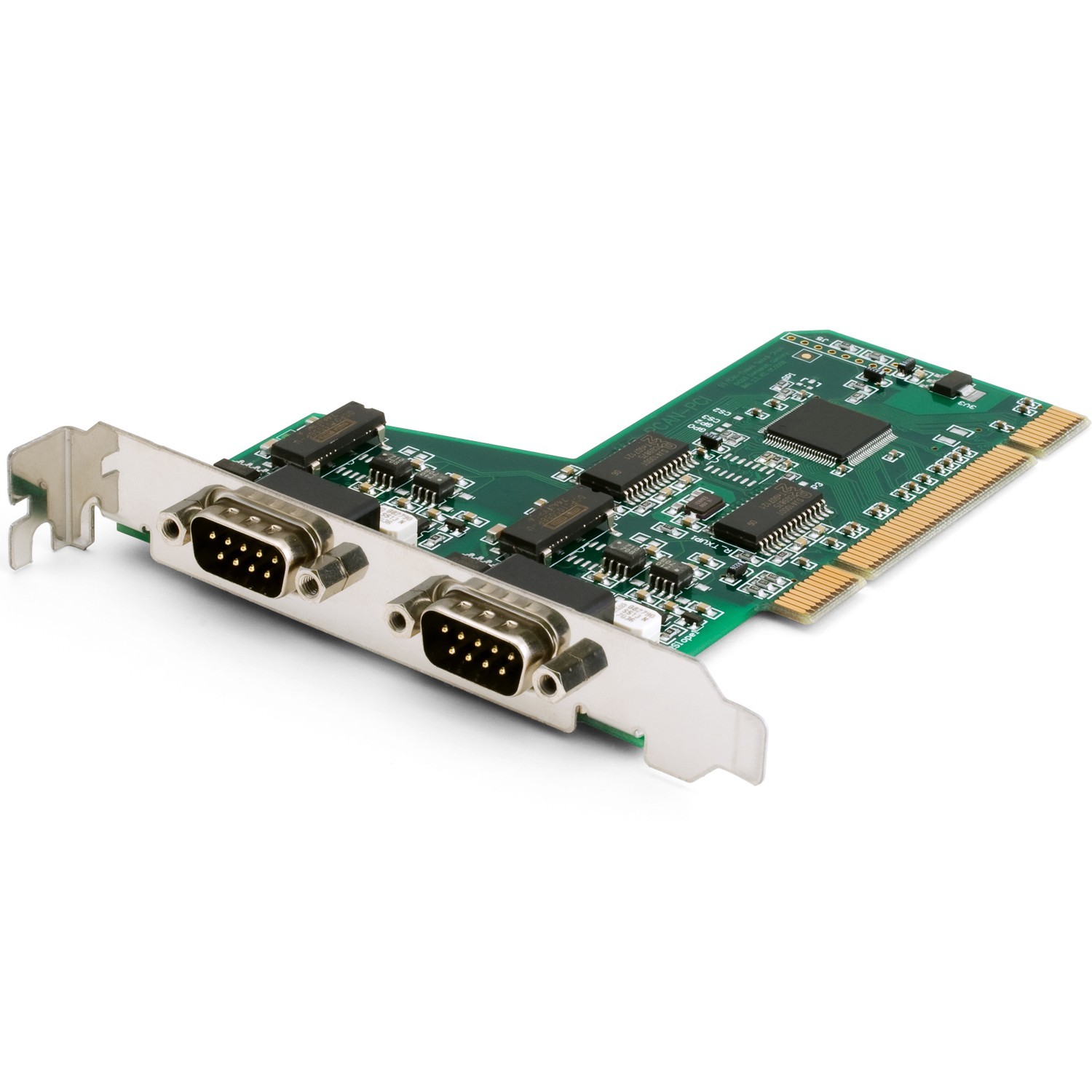

CAN PCI Adapter with 1 or 2 Channels (PCAN-PCI)
Comes with : GC-CAN-PCI2-ISO card, Software/Driver Disc.
Manufacturers Part Number IPEH-002067 Interface(s)
- PC: PCI bus (Rev 2.2) PC98 32 bit PCI-bus, for 3.3V and 5V systems
- CAN: ISO 11898-2, complies with CiA-recommendation DS 102
Dimensions 93 x 120 mm Baud Rate CAN: max. 1 Mbit/s Storage Specifications Temperature: -40°C to +125°C Power Consumption
- 2 channel isolated max 490 mA
Certifications CE, RoHS Pinout C.I.A. DS-102 (CAN_H = 7, CAN_L = 2, CAN_GND = 3) Transceiver CAN: NXP / Philips PCA82C251 EMC Directive
- EN 55024:2003-10
- EN 55022:2007-04
- EC directive 89/336/EEC
Software
- Driver: Windows® 7, Vista, XP; Linux
- Tools: PCAN-View for Windows®
Controller(s) CAN: NXP / Philips SJA1000T I/O & IRQ automatically assigned via "plug n play" Specification CAN: 2.0A (Standard format) and 2.0B (extended format) Connector(s) 10-pin Upright Connector Isolation 500 VDC (optional) Temperature Range
- Operating: -40°C to +85°C
- Humidity: 15% to 90% (non-condensing)
