Product Description

Please note: The buyer is responsible for customs clearance and payment of duties.

If you have other configuration needs, you can contact us and we will customize it for you.

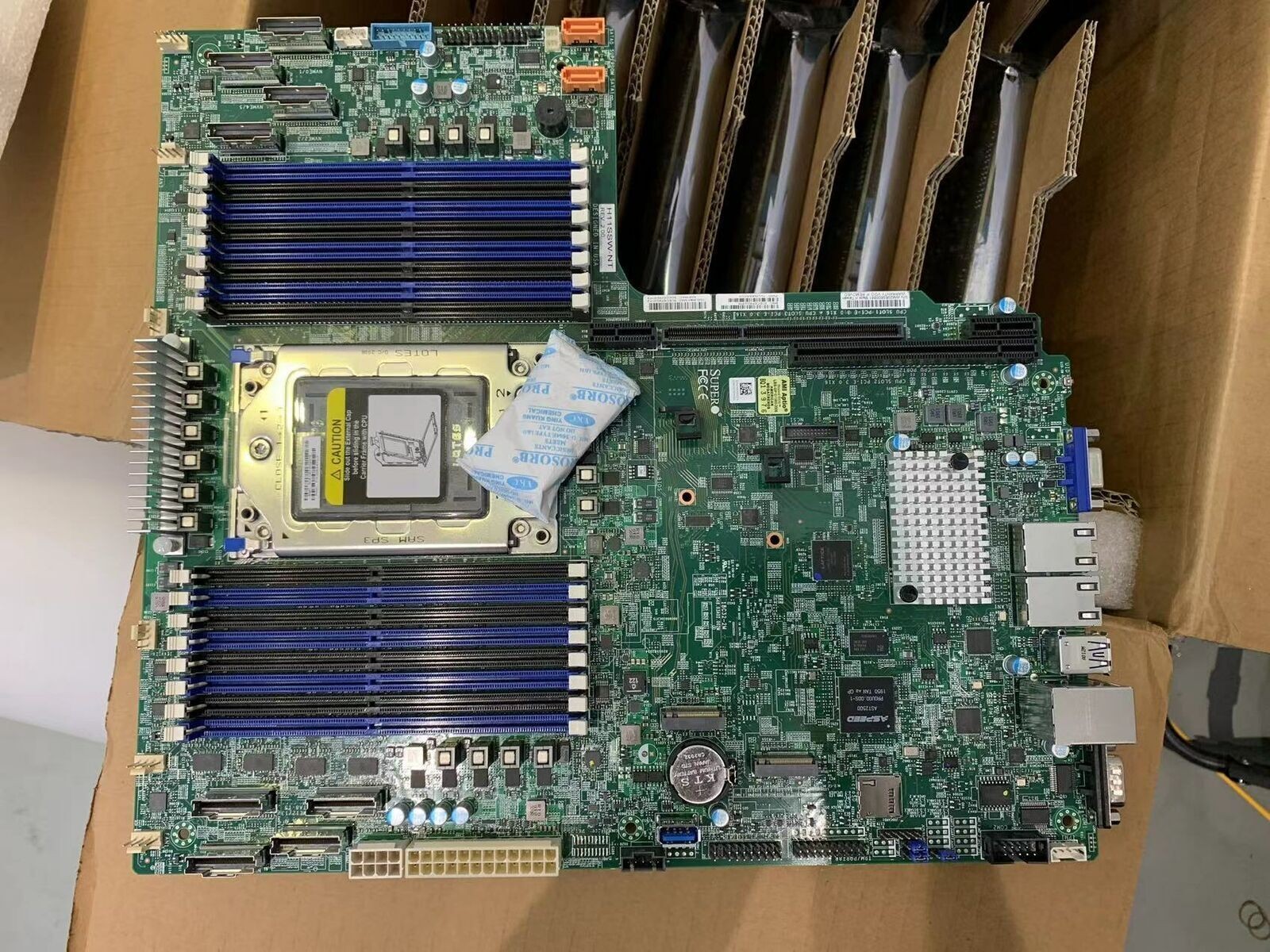

H11SSW-NT Supermicro Motherboard MBD-H11SSW-NT-B For AMD 7001/7002 Series CPUSpecifications
Product SKUs
MBD-H11SSW-NT

• H11SSW-NT (Bulk Pack)

Physical Stats
Form Factor

• 13.4" x 12.29" (34cm x class="desc" style="box-sizing: border-box; margin: 0px; padding: 0px; font-weight: bold; color: rgb(93, 139, 96) !important;">
• Single AMD EPYC™ 7001/7002*series Processor (*Board revision 2.x required)
• Socket SP3

Cores

• Up to 32 Cores
• Up to 64 Cores (Board revision 2.x required)

Chipset

• System on Chip

System Memory
Memory Capacity

• 16 DIMM slots
• Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs
• Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required)
• 8-channel memory bus

Memory Type

• DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs
• DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required)

DIMM Sizes

• 8GB, 16GB, 32GB, 64GB, 128GB, 256GB*(*Board revision 2.x required)

Memory Voltage

• 1.2V

Error Detection

• Corrects single-bit errors
• Detects double-bit errors (using ECC memory)

On-Board Devices
SATA

• SATA3 (6 Gbps)

IPMI

• Support for Intelligent Platform Management Interface v.2.0
• IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
• ASPEED AST2500 BMC

Network Controllers

• 2x 10GBase-T LAN Ports via Broadcom BCM57416
• 1 Realtek RTL8211E PHY (dedicated IPMI)

VGA

• ASPEED AST2500 BMC

Input / Output
SATA

• 2 SATA3 (6 Gbps) ports

SATA/NVMe Hybrid

• 16 SATA3 / 4 NVMe

NVMe

• 12 NVMe

LAN

• 2 RJ45 10GBase-T Ethernet LAN ports
• 1 RJ45 Dedicated IPMI LAN port

USB

• 7 USB 3.0 ports
  (4 rear + 2 front + 1 Type A)

VGA

• 1 VGA port

Others

• 2 COM ports (rear)
• 2 SATA DOM power connectors
• 1 TPM 2.0 header
• 1 TPM 1.2 header

Expansion Slots
PCI-Express

• 1 PCI-E 3.0 x32 Left Riser Slot
• 1 PCI-E 3.0 x16 Right Riser Slot

M.2

• Interface: 2 PCI-E 3.0 x2
• Form factor: 2280, 22110
• Key: M-key

Chassis ( Optimized for H11SSW-NT )
2U

• AS -1113S-WN10RT
• AS -2113S-WN24RT
• AS -2113S-WTRT

System BIOS
BIOS Type

• AMI 128Mb SPI Flash EEPROM

BIOS Features

• Plug and Play (PnP)
• DMI 2.3
• PCI 2.2
• ACPI 5.1
• USB Keyboard Support
• SMBIOS class="desc" style="box-sizing: border-box; margin: 0px; padding: 0px; font-weight: bold; color: rgb(93, 139, 96) !important;">
• SuperDoctor 5
• Watch Dog
• NMI
• SUM
• IPMI 2.0, KVM with dedicated LAN

Power Configurations

• ACPI Power Management
• Power-on mode control for AC power loss recovery

PC Health Monitoring
CPU

• Monitors CPU Core Voltages, +1.8V, +3.3V, +5V, +5V standby, +3.3V standby
• CPU switching voltage regulator
• Supports system management utility
• VBAT

FAN

• Up to 6-fan status tachometer monitoring
• Up to 6 4-pin fan headers
• Dual Cooling Zone
• Status monitor for speed control
• Pulse Width Modulated (PWM) fan connectors

Temperature

• Monitoring for CPU and chassis environment
• CPU Thermal Trip Support
• Thermal control for 6x Fan connectors
• I²C Temperature Sensing Logic

LED

• CPU / System Overheat LED

Other Features

• Chassis Intrusion Detection
• Chassis Intrusion Header
• Operating Temperature:
  10°C to 35°C (50°F to 95°F)
• Non-operating Temperature:
  -40°C to 70°C (-40°F to 158°F)
• Operating Relative Humidity:
  8% to 90% (non-condensing)
• Non-operating Relative Humidity:
  5% to 95% (non-condensing)
