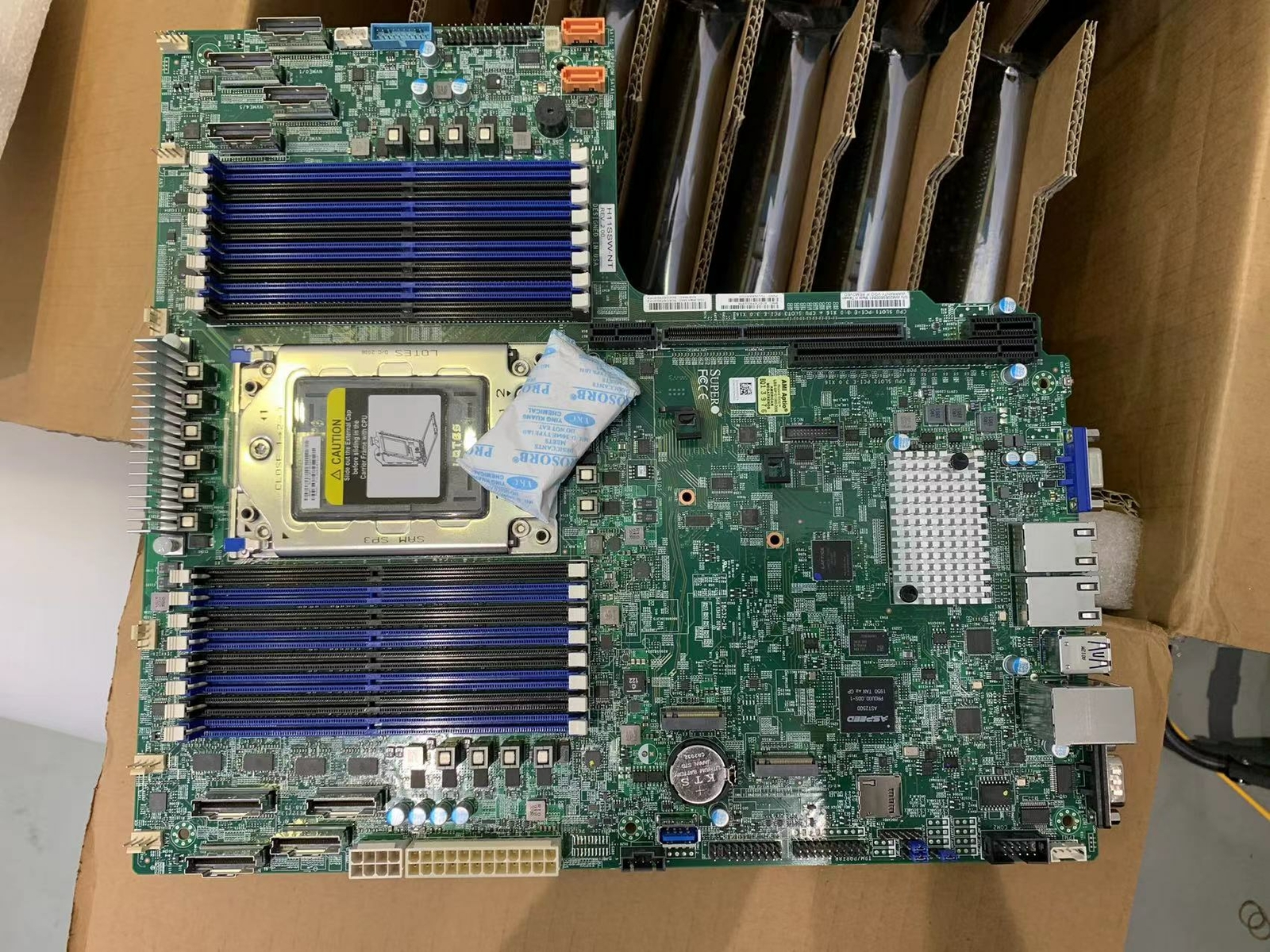

Specifications Product SKUs MBD-H11SSW-NT Physical Stats Form Factor - 13.4" x 12.29" (34cm x class="desc" style="box-sizing: border-box; margin: 0px; padding: 0px; font-weight: bold; color: rgb(93, 139, 96) !important;">
- Single AMD EPYC™ 7001/7002*series Processor (*Board revision 2.x required)
- Socket SP3
Cores - Up to 32 Cores
- Up to 64 Cores (Board revision 2.x required)
Chipset System Memory Memory Capacity - 16 DIMM slots
- Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs
- Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required)
- 8-channel memory bus
Memory Type - DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs
- DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required)
DIMM Sizes - 8GB, 16GB, 32GB, 64GB, 128GB, 256GB*(*Board revision 2.x required)
Memory Voltage Error Detection - Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
On-Board Devices SATA IPMI - Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- ASPEED AST2500 BMC
Network Controllers - 2x 10GBase-T LAN Ports via Broadcom BCM57416
- 1 Realtek RTL8211E PHY (dedicated IPMI)
VGA Input / Output SATA SATA/NVMe Hybrid NVMe LAN - 2 RJ45 10GBase-T Ethernet LAN ports
- 1 RJ45 Dedicated IPMI LAN port
USB - 7 USB 3.0 ports
(4 rear + 2 front + 1 Type A)
VGA Others - 2 COM ports (rear)
- 2 SATA DOM power connectors
- 1 TPM 2.0 header
- 1 TPM 1.2 header
Expansion Slots PCI-Express - 1 PCI-E 3.0 x32 Left Riser Slot
- 1 PCI-E 3.0 x16 Right Riser Slot
M.2 - Interface: 2 PCI-E 3.0 x2
- Form factor: 2280, 22110
- Key: M-key
Chassis ( Optimized for H11SSW-NT ) 2U - AS -1113S-WN10RT
- AS -2113S-WN24RT
- AS -2113S-WTRT
System BIOS BIOS Type - AMI 128Mb SPI Flash EEPROM
BIOS Features - Plug and Play (PnP)
- DMI 2.3
- PCI 2.2
- ACPI 5.1
- USB Keyboard Support
- SMBIOS class="desc" style="box-sizing: border-box; margin: 0px; padding: 0px; font-weight: bold; color: rgb(93, 139, 96) !important;">
- SuperDoctor 5
- Watch Dog
- NMI
- SUM
- IPMI 2.0, KVM with dedicated LAN
Power Configurations - ACPI Power Management
- Power-on mode control for AC power loss recovery
PC Health Monitoring CPU - Monitors CPU Core Voltages, +1.8V, +3.3V, +5V, +5V standby, +3.3V standby
- CPU switching voltage regulator
- Supports system management utility
- VBAT
FAN - Up to 6-fan status tachometer monitoring
- Up to 6 4-pin fan headers
- Dual Cooling Zone
- Status monitor for speed control
- Pulse Width Modulated (PWM) fan connectors
Temperature - Monitoring for CPU and chassis environment
- CPU Thermal Trip Support
- Thermal control for 6x Fan connectors
- I²C Temperature Sensing Logic
LED - CPU / System Overheat LED
Other Features - Chassis Intrusion Detection
- Chassis Intrusion Header
- Operating Temperature:
10°C to 35°C (50°F to 95°F) - Non-operating Temperature:
-40°C to 70°C (-40°F to 158°F) - Operating Relative Humidity:
8% to 90% (non-condensing) - Non-operating Relative Humidity:
5% to 95% (non-condensing)
Parts List Bulk Pack List Part MotherboardI/O CableCBL-SAST-08131SLIMLINE SAS x8 (LA) to SATA x4,INT, 16/26CM,32AWG
 |
|
