Feature:

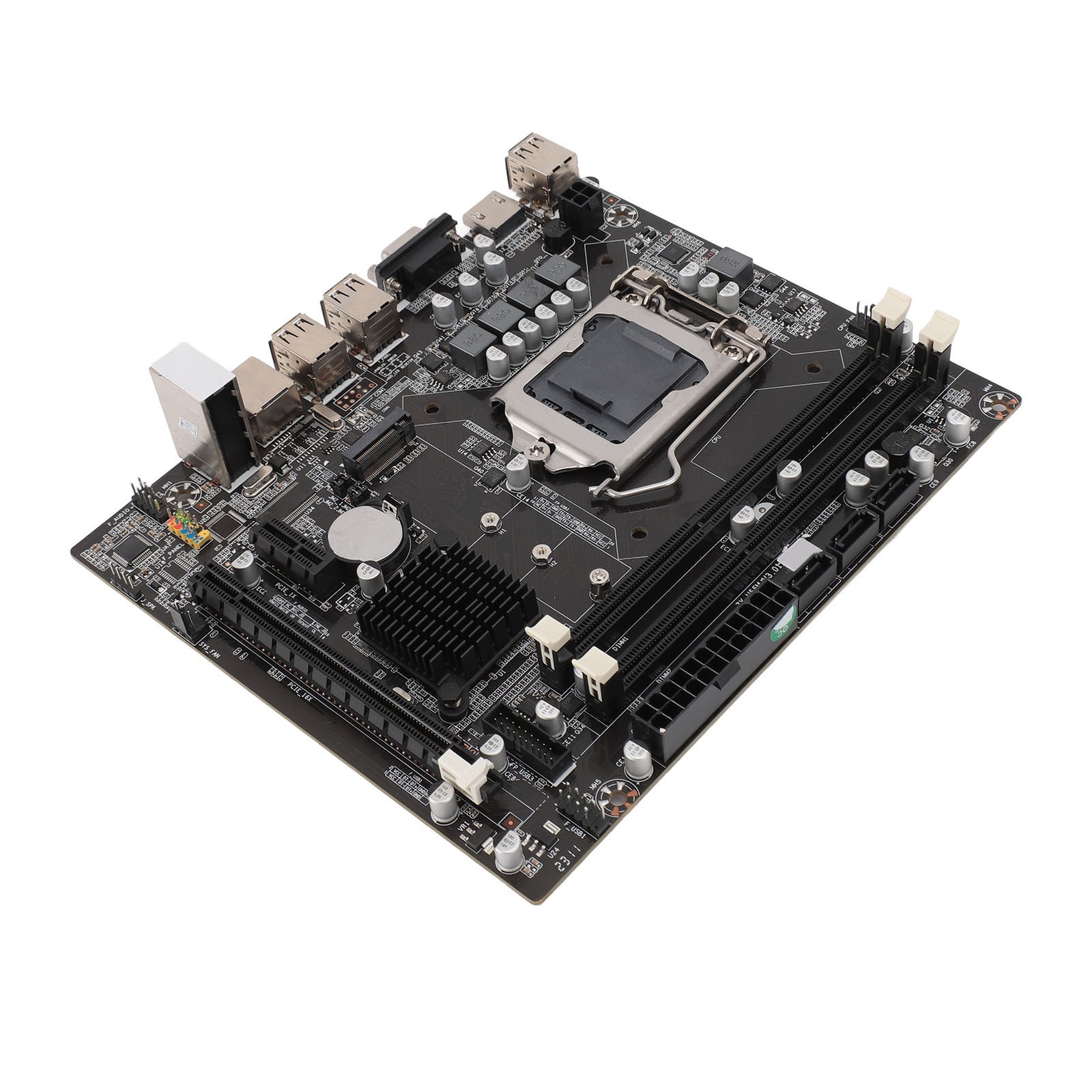

1. STABLE POWER SUPPLY: H55 desktop computer motherboard features stable power supply, 4 phase power supply motherboard design to ensure stability and performance.
2. DDR3 8 CHANNEL MEMORY: The H55 desktop computer motherboard has a highly efficient memory support with DDR3 8 channel memory, supporting up to 32G of memory capacity in a single strip.
3. HIGH SPEED HARD DISK INTERFACE: H55 desktop computer motherboard has a high speed hard disk interface, supports M.2 NVME PCIE channel, the theoretical bandwidth up to 4GB/S.
4. MULTI INTERFACE EXPANSION: H55 desktop motherboard adopts multi interface expansion to meet the needs of various peripherals, including 4 USB2.0 ports and 3 hard disk ports.
5. INTEGRATED CHIP DESIGN: DDR3 memory motherboard adopts integrated chip design, conveniently connecting sound devices and network, providing integrated chip sound card or network card.

Specification:

Item PCB
Motherboard Chips:
Integrated Chip Sound Card, Network Card Nuclear Graphics Graphics Card
Main Chipset for H55 Series
NIC Chip Integrated Network Card
Sound Chip Integrated 6 Channel Sound Chip
Processor Specifications:
CPU Platform for Core Generation I3 I5 I7
CPU Slot LGA 1156
Support the Number of CPU 1
Memory Specifications:
Memory Type DDR3 1333 1066 MHZ (1600 Not Supported)
Memory Slot 2×DDR3 (Maximum 4G for Single Memory)
Expansion Slots:
1x PCIE X16 Graphics Card Slot
1x PCIE X1 Slot
1x USB2.0 Pin 1x USB3.0 Slot
1x M.2 NGFF Slot Mode
3xSATA Ports
I/O Interface:
1x USB Keyboard and Mouse
1x RJ45 Network Interface
1x VGA Interface
1x HD Multimedia Interface HD Output
4x USB 2.0 Interface
Sound Interface
Other Parameters:
Power Socket One 4 Pin, One 24 Pin Power Connector
Power Supply Mode 4 Phase
Battery Model: CR2032L　
Battery Capacity: 240mAh (Including)

Package List:

1 x Motherboard

1 x Instruction Manual

1 x Cable

1 x Baffle
