Product Description

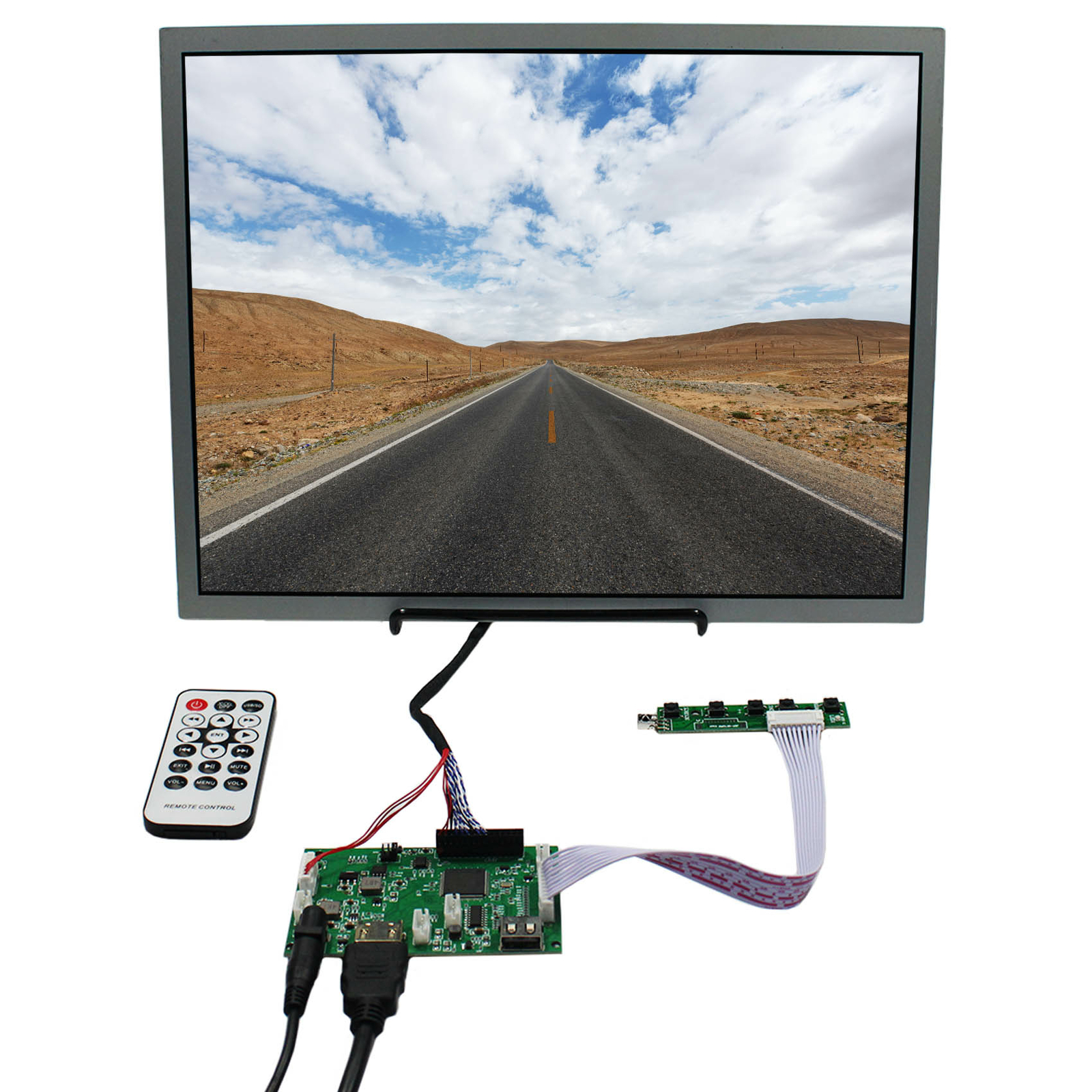

LCD Controller Board:
HD.USB Automatic Brightness Adjustment LCD Board for 30Pin LVDS
Interface LCD Screen
Input Power Adapter: 12Vdc More than 2A.
Come In Standby Model When Not Input Signal
Standby Model <1W
Voltage To LCD Panel：3.3V 5V 12V( Jumper optional)
Photoresistors Input Support Automatic brightness adjustment
External human body induction signal template, automatic startup and shutdown of human body induction
Video Input: HD USB
HD: Support HD 1.4
USB: Support Video Playback, Picture Playback, Text Playback
Upgrade Firmware (The upgrade file is placed in the first-level directory of the U disk, and
plugged into the USB of the driver board, the power can be upgraded, and it will automatically
restart after completed)
Audio: Speaker Support 8ohm 2W/ 4ohm 2W
OSD: Brightness Contrast Auto Language And So On
Language: English French German Spanish Italian And So On
Board Size: 90mm x 56mm x 14mm
15"LQ150X1LW941024X768LCD Screen:
Display Mode ASV, Normally Black, Transmissive
Resolution 1024RGB)×768
Outline Size 326.5× 253.5×10(H×V×D)
Display Area 304.1 × 228.1(H×V)
Brightness 300 cd/m² (Typ.)
Contrast Ratio 1500:1 (Typ.) (TM)
Viewing Angle 85/85/85/85(Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface LVDS (1 ch, 8-bit) , 30pins , Connector
Backlight WLED
Input Voltage 3.3V (Typ.)
Packing list :
1× HDLCD Board for 30PinVS-TY2660HU-823
1× 15inch LQ150X1LW94 1024X768 LCD Screen
1× LVDS Cable
1× Keyboard With Cable
1× Remote Control (Battery Not included)
