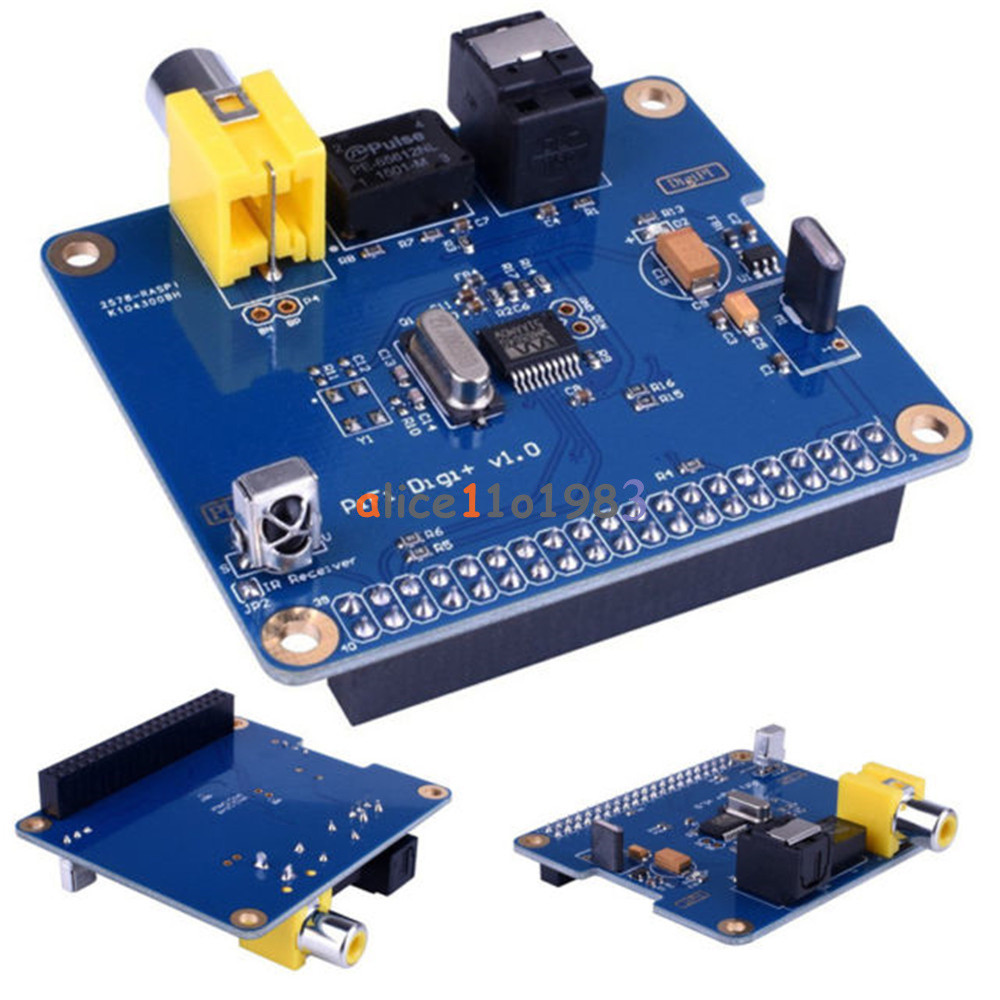

HIFI PIFI Digital Sound Card I2S SPDIF Optical Fiber Module for Raspberry pi 2/3Description:this is a response to the B + / A + special raspberry + HIFI Digi + expansion card (PiFi Digi +) special design, use Wolfson high-end digital chip company (WM8804G), use I2S interface, not USB interface; After Aver used this extension plate, the user can combine the audio playback system (such as volume, Xbmc system) to build his own HIFI player network; Expansion board provides fiber (S / PDIF) and coaxial (RCA) two convenient output interface for external amplifiers and other equipment. with it you can get rid of PC power, turn off slow, power noise and so disturbed.Function introduction:1 digital chip uses the Wolfson high-end company WM8804G chip, the adoption of I2S interface; Supports 16 to 24 bit audio formats; distortion and dynamics is very ideal, support the high sampling rate of 192 kHz, advanced shake reduction technology can be intrinsic jitter control in 50 pcs RMS, high degree of reduction.2. Use the optical output and coaxial output twointerface output, convenient for the user to connect an external power amplifier3 hardware support modes for controlling volume ( I2C interface)4. Power supply Raspberry PI supply, there is no need for external power supply; and use π power-type design filter to reduce power interference effectively.5 using I2S interface direct digital output, high degree of reduction, no USB interface DAC methods, not busy raspberry plus extended GPIO6. Provide the power light, easy to observe the state expansion board7. PCB board adopt gold plating process, wire arc (high-end HIFI DAC to adopt arc line), ensure better signal Continuity Impedance, reduce reflection and refraction of the signal.8 Good sound depends on real materials, fiber optic interface adopts imported HIFI grade high quality fiber seat, coaxial interface using Pluse audio import isolation transformer and good digital audio at the same time good protection of your audio device and boards !9. Integrated infrared reception function, in the absence of network, more convenient to control playback (Foreign similar products remove this part for the cost, in order to sound for the sake of reliability we will not begrudge the cost, never cut corners)Note:The matching copper pillars are gifts for this item!Package Include:1 xHIFI Digital Sound Card I2S SPDIF Optical Fiber for Raspberry pi 3 2 model B
