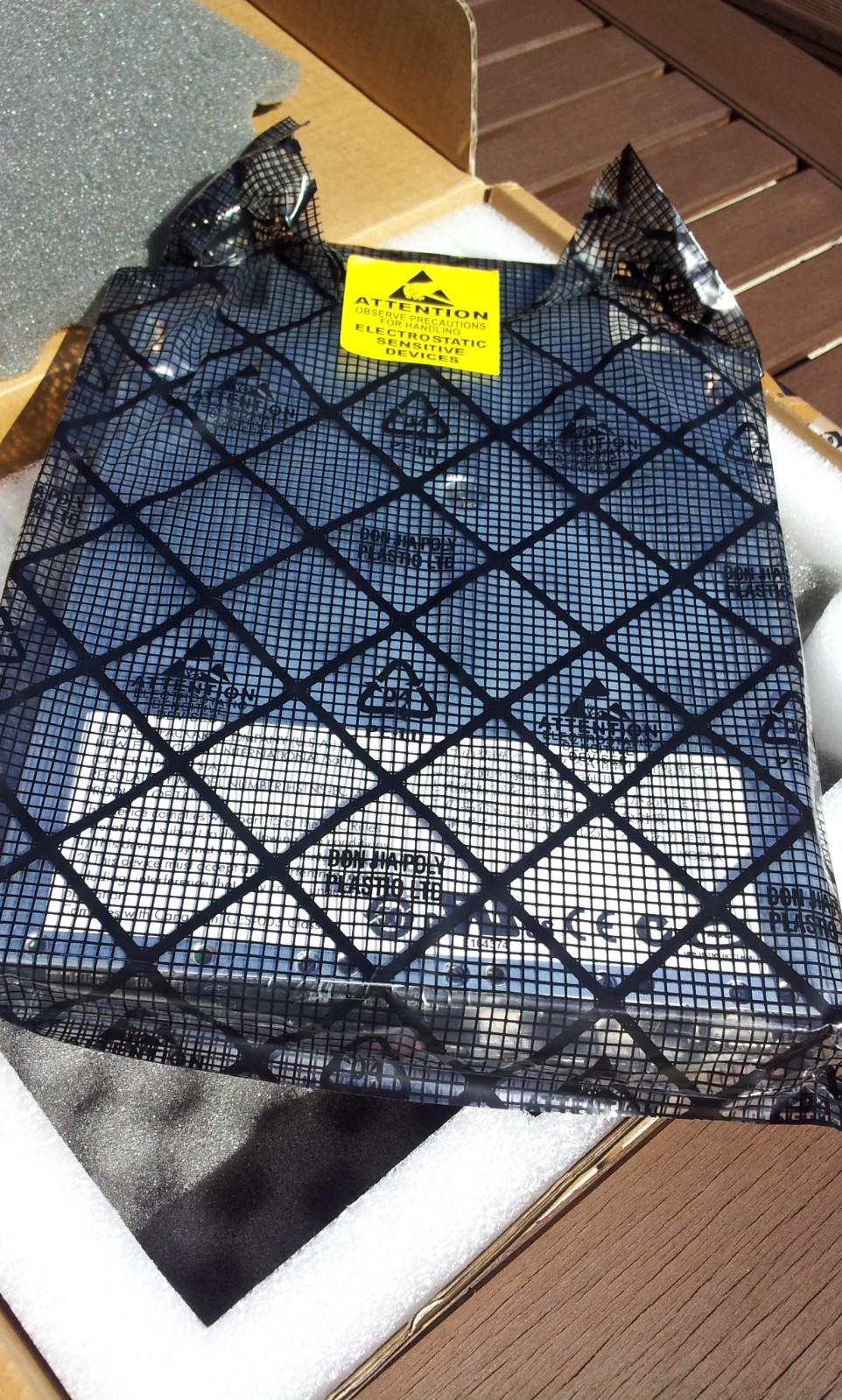

HP 1/10Gb-F Virtual Connect Ethernet Module for c-Class BladeSystem. The module is still in its sealed anti static bag with its original packing.Condition is Manufacturer refurbished. Dispatched with Royal Mail 1st Class.
Print | Rate this content HP 1/10Gb-F Virtual Connect Ethernet Module for c-Class BladeSystem - OverviewProduct featuresFeatureDescriptionModels HP 1/10Gb-F Virtual Connect Ethernet Module for c-Class BladeSystem: 447047-B21Spare part number447103-001 Performance

• (1) 110GbE -CX4 uplink can be connected to core switches or used to stack Virtual Connect modules
• (2) 10GbE XFP uplinks
• (2) 1GbE SFP uplinks for Fiber or Copper connectivity
• (4) 10/100/1000BASE-T uplinks can be connected to core switches or used to stack Virtual Connect modules
• Wire speed performance on all ports
• IGMP Snooping optimizes network traffic and reduces bandwidth for multicast applications such as streaming applications
• VLAN Tagging, Pass-Thru and Link Aggregation supported on all uplinks

Technical Specifications Shipping Dimensions Length 13.88 in (352.55 mm)Width 10.63 in (270.00 mm)Height 4.75 in (120.65 mm)Shipping Weight 4.4 lbs (2.0 Kg)Product Specifications Hardware Performance 108 Gb total throughputNon-blocking, line rate packet forwardingMaximum transmission unit (MTU) of up to 9216 bytes (jumbo frames)Connectors and Cabling Gigabit Ethernet uplink ports (Up to 9 external)2 external 1GbE SFP ports4 external 10/100/1000BASE-T RJ-45 ports.2 external 10GbE Fiber XFP ports.1 external 10GbE CX4 (one additional internal 10Gb Cross Connect)Indicators

• Recessed Momentary Reset Switch
• Momentary Next/Step Switch
• Backlit port number and status indicator LED, one per bulkhead port, blue/amber/green
• Module status indicator, amber/green
• Module locator (UID), blue
• 10/100 speed Link/Activity indicator, one per RJ45 port, green
• 1000 Link/Activity indicator, one per RJ45 port, amber
• 1000 Link/Activity indicator, one per SFP port, amber
• Link/Activity indicator, one per CX4-port, green
• Link/Activity indicator, one per XFP-port, green

Dimensions Length10.5 in (267.7 mm)Width7.5 in (92.79 mm)Height1.1 in (27.94 mm)Weight 1.27Kg (2.8 Lbs)Environmental Ranges Temperature Range Specification10C to 35C (50F to 95F)Temperature range*Operating10C to 35C (50F to 95F)ShippingShipping -40C to 60C (-40F to 140F)Storage-20°C to 60°C (-4F to 140°F)Maximum wet bulb temperature30C (80F)Relative humidity (noncondensing)**Operating10% to 90%Shipping10% to 90%Storage 10% to 95%NOTE: All temperature ratings shown are for sea level. An altitude derating of 1°C per 304.8 m (1.8°F per 1,000 ft) to 3048 m (10,000 ft) is applicable. No direct sunlight allowed. Upper operating limit is 3,048m (10,000 ft) or 70 Kpa/10.1 psia. Upper non-operating limit is 9,144 m (30,000 ft) or 30.3 KPa/4.4 psia. ** Storage maximum humidity of 95% is based on a maximum temperature of 45°C (113°F). Altitude maximum for storage corresponds to a pressure minimum of 70 KPa.Product Specifications Software Security Features HTTPS (HTTP exchanged over an SSL-encrypted session) is required for access to the Virtual Connect Manager.Access to the Virtual Connect Manager is via the system Onboard AdministratorEach user account can be configured for a combination of four access privileges to control and/or view elements in the Virtual Connect Manager.User verification by account name and password (Case Sensitive)LDAP Authentication services provide role based security via an LDAP SSL Directory Server connection.Trunking and Failover Features Shared Uplink Sets using Link Aggregation Control Protocol (LACP) allows the creation of Ethernet channeling with upstream switches that conform to IEEE 802.3ad. Ports can alternatively be configured for failover only.External ports within a Port Set can be on the same VC Ethernet module or on multiple VC modules within the VC domain.In the event of an uplink failure to a data center switch, the next highest performance uplink connection or aggregation will become active.Fast MAC Cache failover enables rapid recovery of network connections when a standby module becomes active.Smart Link network senses a failed upstream switch connection and allows teamed NIC's to properly failover.Configure uplink speeds to Auto,,10Mb, 100Mb, 1Gb,or10Gb on the associated uplinksVLAN Features 802.1Q VLAN supported on uplinksUplink ports can be configured for VLAN tagging at egress or pass-thru of tagged VLAN packets from Server portsNative VLAN support for untagged packets on a shared uplink set. Packets can be targeted to a specific server ports.Management Features Simple and intuitive Graphical User Interface (GUI) for defining, configuring, and managing all elements of the Virtual Connect Domain. Setup Wizards for initial domain installation and configuration and network configuration.Comprehensive administration, definition, and management of Ethernet Network, Shared Uplink Set, and Server ProfilesEmbedded SNMP v1, v2 and SMI-S agents allow Network Management applications to query Virtual Connect for statistics and trap information.A robust, scriptable and secure Command Line Interface simplifies management and enables macros to control common Virtual Connect tasksAny uplink port can be used as a dedicated mirrored port for traffic analysis and troubleshooting by a Network Analyzer or Sniffer.Domain Management of user accounts, enclosure, Virtual Connect domain settings, and firmware updatesThe location and status of Virtual Connect Modules in the HP c-Class Enclosure and Onboard Administrator can be viewed from the Hardware Status page. Including at-a-glance detailed information of the hardware elements via mouse-over pop-up windows.MAC Address Administration allows local administration of predefined or user-defined MAC address ranges. VC manager runs as a high-availability pair when an HP 1/10Gb VC-Enet Module is installed in adjacent bays. All configuration data is stored in flash memory and checkpointed to the standby module. Configurations can also be backed up to a workstation via the GUI.Management and Standards Support Standards IEEE 802.1pIEEE 802.1QIEEE 802.3acIEEE 802.3adIEEE 802.3 10BASE-TIEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-TIEEE 802.3z 1000BASE-XIEEE 802.3ak 10GBASE-CX4IEEE 802.3ae 10GBASE -XSNMP v.1, v.2IGMP v1,v2,v3
