Misao is rather weak compared to her more powerful relatives, but she can get the job done when it comes to productivity software, web browsing, and watching movies.This mini PC can work well as a emulation machine for retro gaming, but she will be strained once 3D graphics processing in introduced with games from the Playstation 1 era. Her gaming horsepower is more than enough for playing old PC games such as Return to Castle WolfensteinandUnreal Tournament 2004. The second she has to face newer titles such as Mirror's Edge, she will struggle to maintain a stable frame rate beyond 720p.

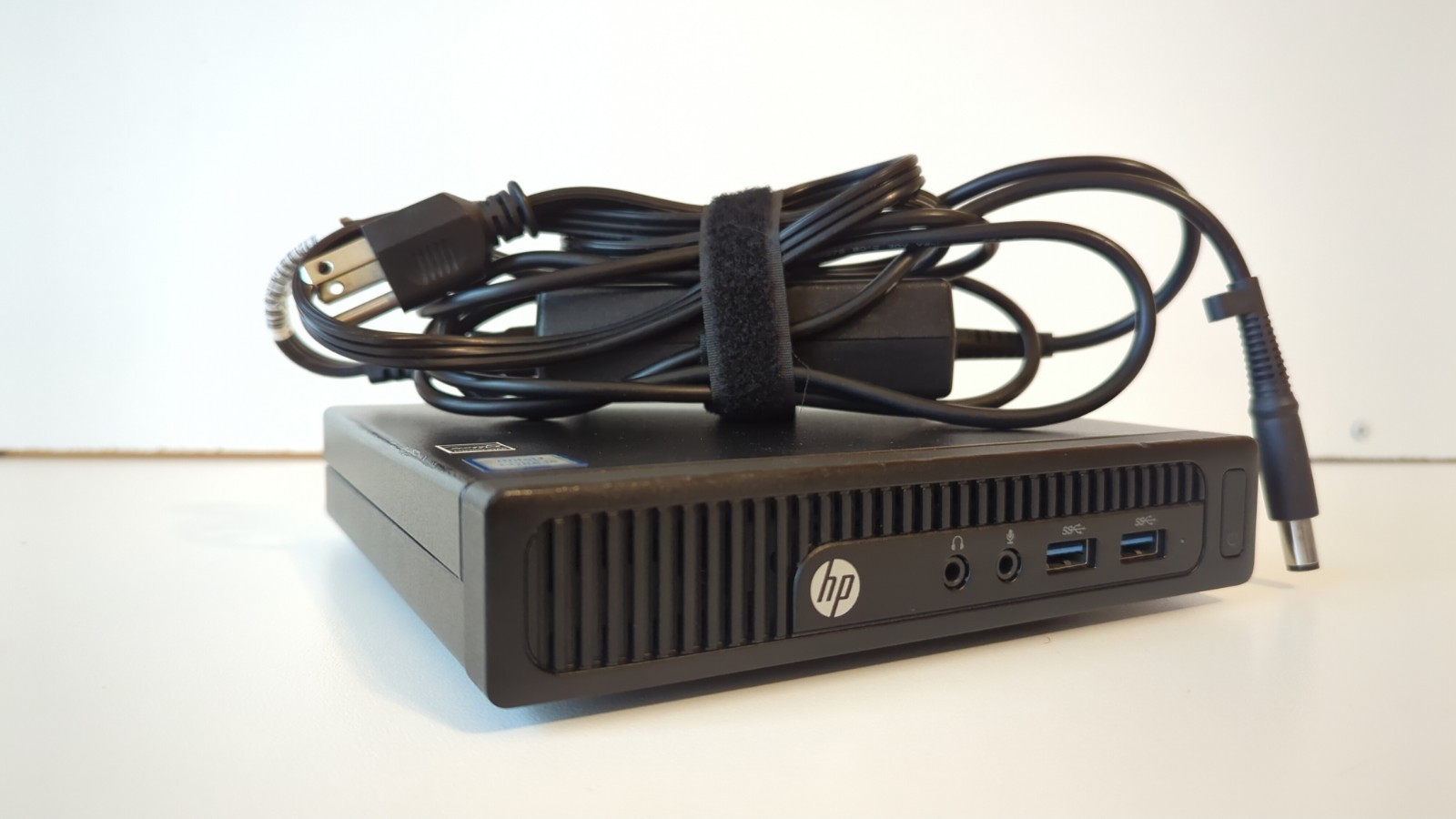

Specifications: Computer Name: “Misao” (HP 260 G2 Desktop Mini) CPU: Intel Core i5-6200U Cores – 2 Threads – 4 Base Clock Speed – 2.30 GHz Turbo Clock Speed – 2.80 GHz TDP – 15W GPU: Intel HD Graphics 520 Thermal Paste: Thermal Grizzly Duronaut System RAM:16 GB A-Tech DDR4-2400 SODIMM (underclocked to 2133 MHz) CAS Latency: 15-15-15-35 Max System RAM Per Official Documentation:32 GB DDR4-2133 SODIMM
Serial numbers blacked out in images to prevent fraudulent warranty claims Storage: 1 TB Seagate SSHD One 2.5” SATA3 hard drive bay
All hard drives burnt-in for 72 hours.
Serial numbers blacked out in images to prevent fraudulent warranty claims Motherboard: HP 8184 “Pipin2” Revision A Chipset: Intel Skylake-U Premium PCH PCIe Version: 3.0 BIOS: American Megatrends Ver. 02.29 TPM: v1.2
Networking: Ethernet Controller: Realtek RTL8168/8111 PCIe Gigabit Ethernet NIC Max. Wired Ethernet Speed: 1 GbE WLAN Module: IntelAX210NGW(Wi-Fi 6E + Bluetooth 5.3)
Front I/O: One headphone jack One microphone jack Two USB 3.0 ports
Rear I/O: One HDMI port One VGA port Two USB 3.0 ports Two USB 2.0 ports One RJ45 Ethernet port
Speaker: One front-facing speaker Operating System:CachyOS (Arch Linux) w/ KDE Plasma
Bootloader - GRUB
Filesystem - BTRFS
Power Input:19.5V 3.33A Power Supply:External HP 65W 19.5V 3.33A AC adapterCapabilities (tested under Linux Mint): General Productivity (office work, programming, etc.) –Excellent Web Browsing –Excellent Video Playback –Handles 1440p 60 FPS and 4K 30 FPS videos well, but 4K 60 FPS video suffers from major hitching problems. Video playback from local storage will have better results. Gaming– Light gaming is possible, though not without some concessions due to the limitations of her CPU's integrated graphics. 2D games and older 3D games, such as Unreal Tournament 2004, will run fine. For more demanding 3D games, 720p 30 FPS provides the most stable experience. Emulation –Runs fifth-gen games (e.g Ace Combat 3: Electrosphere) well with upscaling up to 720p. Sixth-gen games struggle to run smoothly beyond the consoles’ native resolution. Don't bother emulating seventh-gen titles.
BIOS configuration: All remote management features are disabled. Wake from LAN features and PXE (network) booting are disabled. BIOS has been updated to the latest version. Secure Boot has been updated with the latest keys and is enabled. TPM is cleared and enabled.CachyOS will come with the following configuration:
Absolutely no AI BS nor nagging ads, unlike Windows 11 All software that comes out-of-the-box with CachyOS Anything related to OS telemetry (if any) is disabled Blu-ray playback support (refer to Notes & Observations below for details)
Firewall is enabled and the profile is set to "Home"
Kernel scheduler set to scx_flash HP OEM and some Windows wallpapers from the Frutiger Aero Archive
Several Microsoft fonts (ex. Times New Roman) pulled from a local Windows installation Audacity - A free and open-source (FOSS) cross-platform audio editor
BibleTime - A Bible study program. Bottles – A program that allows you to run Windows programs in Linux via the Wine or Soda compatibility layers. Be aware that some Windows applications do not play nice with Wine or Soda unless they are running directly in the OS they were designed for via a virtual machine. Brave Web Browser – Several active blocklists, disabled telemetry, hidden Brave garbage such as Brave Rewards, and memory saver set to "Balanced". btop - A visually pleasing derivative of top. Useful for monitoring resource usage directly in the terminal. Cameractrls - An advanced camera control program for Linux. cachyos-gaming-meta and cachyos-gaming-applications - Contains various dependencies and programs for gaming purposes. Includes Lutris, Heroic Games Launcher, and Steam. CPU-X - The Linux and FreeBSD equivalent to CPU-Z.
Flatpak and Flatseal - Adds Flatpak support along with a separate program for managing permissions for Flatpak programs.
hunspell and sonnet - Spell check libraries. American English set as default language. Hypnotix - An IPTV program for watching television programs from the comfort of your desktop. Please be aware that some channels never connect due to dead links in the included playlists.
LibreOffice (still) - A FOSS alternative to Microsoft Office. The particular version installed onto this system is from the stable branch.
OBS Studio - A FOSS screencasting and livestream program. Strawberry Music Player - It does exactly what its name says. It supports Internet radio streaming as well (comes with various channels by Radio Paradise and SomaFM out-of-the-box). Note - On CachyOS, Radio Paradise channels under the Channels tab in Radios work fine, but SomaFM channels don't work at all due to a ParseBin error related their PLS links and GStreamer plugins being unable to read them. This issue may or may not be fixed in a future update. SomaFM's ICE links under the Radio Browser tab work perfectly fine. VLC Media Player – Disabled telemetry. Games: SuperTuxKart – Mario Kart, but with Linux project mascots.
Extreme Tux Racer – A simple 3D racing game. It should run fine on potato PCs.
Various KDE programs:
Kamoso - A simple webcam program.
Kdenlive - A video editor.
KMyMoney - A FOSS alternative to mainstream finance managers such as Quicken.
KolourPaint - A simple painting program similar to Microsoft Paint.
KWeather - A weather app.
Okular - A universal document viewer for Linux.
SomaFM as a bookmark in Brave. It is an independent, commercial-free Internet radio station that plays some great music, particularly their Groove Salad channel. It can also be accessed via the Strawberry Music Player.All of the above mentioned software has been obtained from their official repositories. I have nothing to gain in installing malware onto the computers I work on as I do not want to ruin your life nor spy on your distasteful browsing history.
Notes & Observations:
- Due to a recent influx of malicious packages in the AUR repository, AUR package managers such as yay has been omitted for better security. Use AUR at your own risk. - On some of these systems, areas of the case that had its paint scratched off have been painted over with a paint pen. - The Realtek WLAN modules these systems were originally equipped with were faulty as the logs in any live CD of a Linux distro were machine-gunned with PCIe bus errors until all system RAM was consumed, freezing the machines until they were power cycled by yours truly. They all have been replaced with Intel AX210 WLAN modules.
- Blu-ray playback on PC without resorting to ripping the disc with MakeMKV or purchasing a license for a video player with Blu-ray support is somewhat difficult due to the AACS (Advanced Access Content System) encryption nonsense that format uses. Several libraries and a key database are needed for video players such as VLC, which omit those files for legal purposes, to playback those discs. For your convenience, those files will be installed by yours truly and VLC will be set to skip the interactive menus due to compatibility problems with newer versions of Java (it’s used for making the fancy interactive menus on that format). Yes, Java is still a thing.
Return Policy – 60 day return window. If a HARDWARE problem arises, DM me via messagesfirstbefore creating a return request. If the problem(s) cannot be resolved, you can return the computer with ALL of its included hardware intact (absolutely no modifications of any kind whatsoever). Wipe the included storage devices beforehand as I do not want to know what you are up to.
This listing was written entirely with no assistance from AI.
