PLEASE NOTE THAT YOU ARE PURCHASING A PRODUCT FROM ANOTHER COUNTRY AND WILL THEREFORE BE SUBJECT TO CUSTOMS DUTIES
HP Compaq Tft5600 15" Console Rack KVM Keyboard with Mouse PS/2 Rackmount 1 QtyThe description of this item has been automatically translated. If you have any questions, please feel free to contact us.
Hp Compaq Tft5600 15" Rkm Console Rack Kvm Rackmount Keyboard With Refurbished
Simpletek code 9610
Condition: Grade A Refurbished, possible presence of purely aesthetic defects, which do not affect use, such as small pixel defects (ISO-9241-3xx standards), microscratches on the body/screen and/or other defects not visible more than 30cm from the object resulting however from wear of the object over time; the hardware is however tested, working and guaranteed (see product condition details)
Accessories: Power Supply and Power Cable
Warranty: 12 MONTHS (Simpletek)
Purchase invoice: must be requested at the same time as the order and will be sent via email. In the absence of billing data, a receipt will be issued which cannot be cancelled.
With sleds | US Keyboard Layout

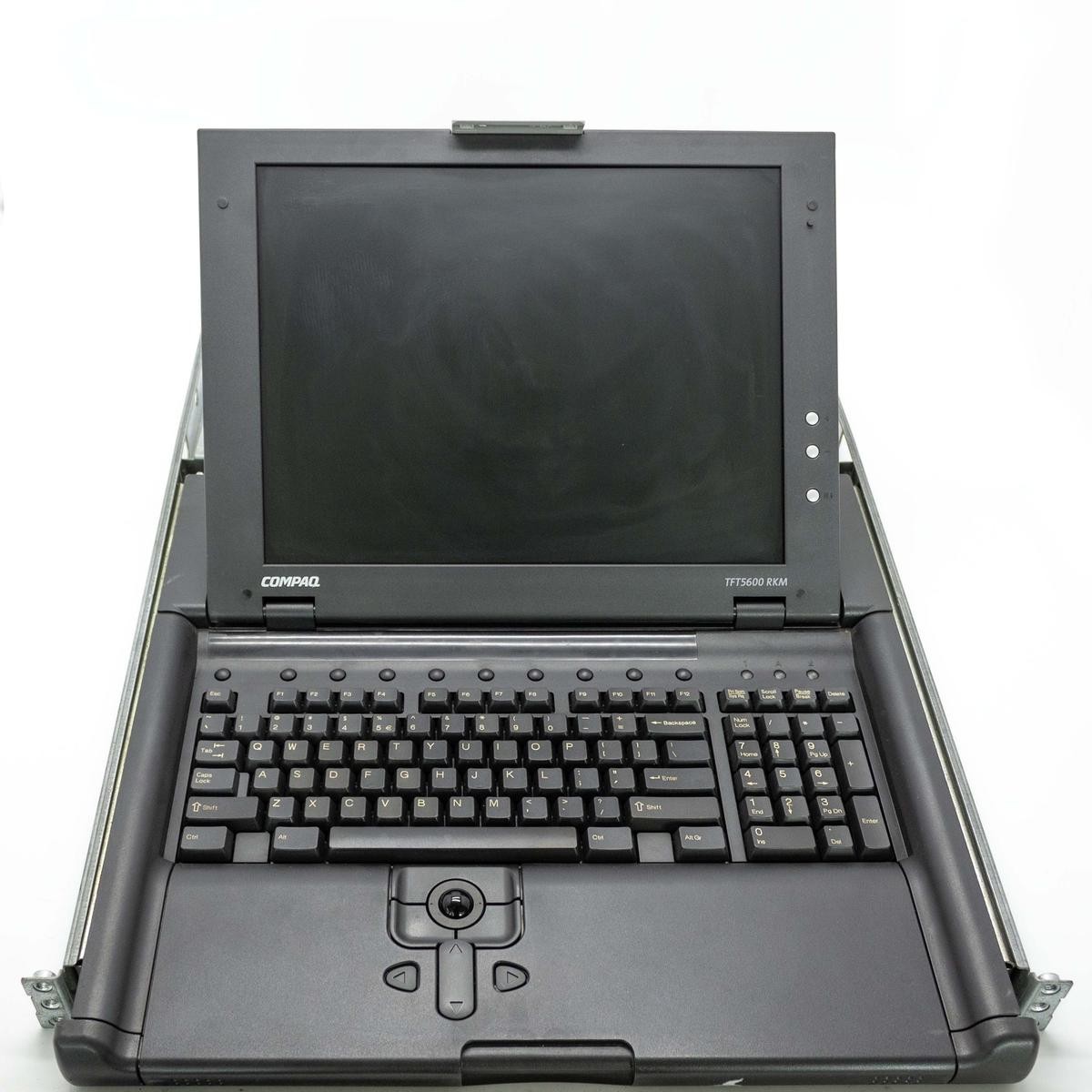

Description HP COMPAQ TFT5600
The TFT5600 RKM (rack-mount keyboard and monitor) is Compaq's first 1U integrated keyboard and monitor system.
Its 15" active TFT display offers high-quality flicker-free viewing, with viewing angles up to 120 degrees horizontally and 105 degrees vertically.
Advanced hotkey capabilities allow customers to conveniently switch to frequently used servers with a simple tap. All that, plus enough space to mount a switchbox on the back. Part Number: 237259-007
Features The HP TFT5600 RKM offers a 15² digital display and a keyboard with hot keys in just 1U.
It also allows space to mount an HP switchbox on the back. Space saving. The high-resolution 1024x768 TFT LCD display supports the resolutions most commonly used by traditional CRT monitor customers.
The integrated interface electronics also offer support for common video resolutions of 800 x 600 and 640 x 480 at refresh rates up to 70 Hz (NOTE 1). The active matrix TFT screen ensures a flicker-free image that is sharper and more focused than a CRT monitor.
Nine programmable hot keys stretch across the top of the keyboard, with the setup key at the bottom right. Hotkeys work with HP switchboxes allowing quick switching between rack-mounted devices. After programming, each button can be labeled for easy identification.
Performance The intuitive 3-button On-Screen Display (OSD) menu is conveniently located on the front/right of the display assembly, making screen adjustments simple. You can make a wide range of adjustments, including brightness, contrast, picture adjustment, OSD settings and factory presets.
The lid switch will activate when the display assembly is closed and turns off the power to the panel backlight. When opened, the display assembly reactivates to its current state. This feature is designed to extend the life of the panel.
The multilingual On-Screen Display supports 10 languages. (English, Dutch, French, German, Italian, Japanese, Portuguese, Simple Chinese, Spanish, Swedish). The trackball mouse is positioned below the space bar for a centralized input device.
Ergonomic Design.
General Specifications
Quantity in Pack 1.0
Display Type KVM Console / TFT Active Matrix
Diagonal size 15.0 inches
Visible Size 15.0 inches
Native Resolution 1024 x 768 Pixel Pitch 0.29 mm
Vertical Refresh Rate 60 Hz
Horizontal Refresh Rate 48.2 kHz
Video Bandwidth 65.0 MHz
OSD Languages English Dimensions (WxDxH) 15.6 inches x 17.0 inches x 1.7 inches
Rack Unit Height 1.0 U Weight 13.9 lbs Audio Type None Input Type Keyboard, Trackball Connectivity Interfaces 1.0 x VGA - 15 pin HD D-Sub (HD-15)
Miscellaneous Rack Mounting Kit Included Power Internal Power Supply Required Voltage AC 120/230 V (50/60 Hz) Operating Power Consumption 50.0 Watt
Contact us, click here
Condition: Grade A Refurbished, possible presence of purely aesthetic defects, which do not affect use, such as small pixel defects (ISO-9241-3xx standards), microscratches on the body/screen and/or other defects not visible more than 30cm from the object resulting however from wear of the object over time; the hardware is however tested, working and guaranteed (see product condition details)
Nine programmable hot keys stretch across the top of the keyboard, with the setup key at the bottom right. Hotkeys work with HP switchboxes allowing quick switching between rack-mounted devices. After programming, each button can be labeled for easy identification. Performance The intuitive 3-button On-Screen Display (OSD) menu is conveniently located on the front/right of the display assembly, makin
