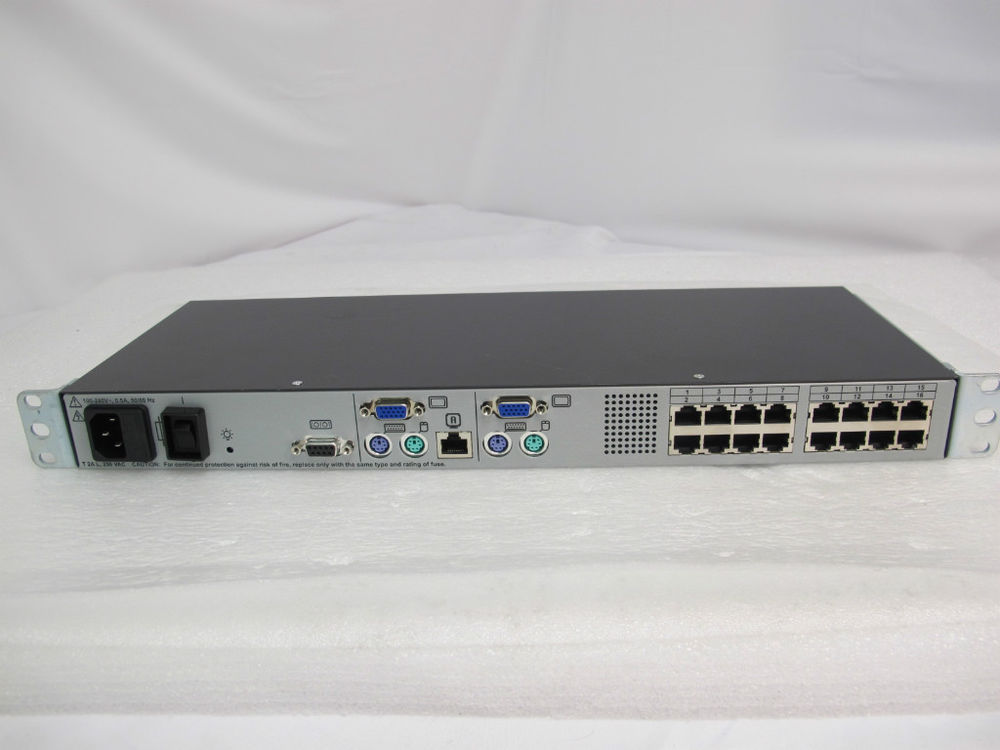

HP SERIES EO1013 Rack Mountable 16-port KVM Switch

Dear customer,

When there might be a difference between the automatic generated specifications by the system, and the hand written/typed description, then please be aware that the only correct description is what's written by our selves here in the description.

Specifications above might be slightly different.

Thanks for your understanding.

HP SERIES EO1013 Rack Mountable 16-port KVM Switch

Excluding cables etc.

On-Screen Display (OSD)Displays system-related information on the console monitor, such as selected server name, status, power-up test data and configuration menusSupported video resolution:Up to 1600 x 1200 on both the local port as well as remote consoles
Widescreen video support modes include: *

1680 x 1050 *

1440 x 900 *

1280 x 800 *

1024 x 640 *

800 x 500

Ports*

For the digital appliances: the local ports will be represented by one ACI connection and one local KVM connection *

For the analog appliance: the local ports are represented by an ACI connection and two sets of local KVM connections

Support for variety of server connections*

PS/2 *

USB *

VT 100 serial console support * BladeSystems support via front diagnostics connector

Server support*

HP ProLiant Server support - All HP ProLiant servers running any operating system are supported on all HP Server Console Switches *

HP Integrity Server support - Integrity Server support is dependent on operating system and hardware configurations *

HP Unix Server support - HP9000 Servers can be managed using the Serial Interface Adapter (PN: 373035-B21) connected to the RS-232 management port to provide VT100 terminal emulation through the HP Server Console Switch

If something is not on the picture it's not included unless stated otherwise.
