In Good Condition

Full Working Order

Tested

1 year warranty

12 x 16Gb Active Ports

Included:

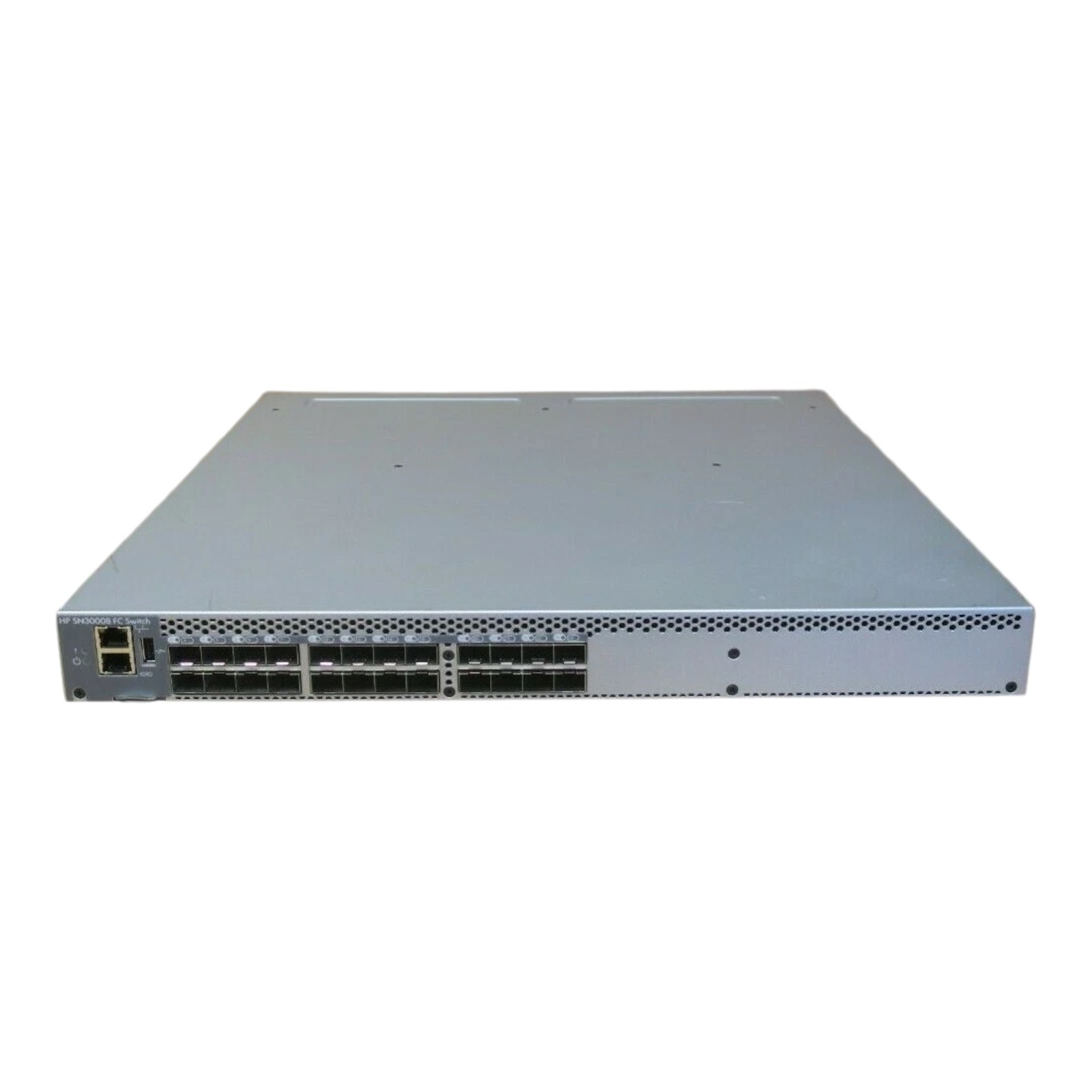

• 1 xHP SN3000B Brocade 6505 24-Port 16Gb SFP+ FC SAN Switch QW937A
• 2 x Power Supply 492295-002

Description:

The HP SN3000B Fibre Channel Switch meets the demands of hyper-scale, private cloud storage environments by delivering marketleading16 Gb Fibre Channel technology and capabilities that support highly virtualized environments. Designed to enable maximum flexibility and investment protection, the SN3000B Switch is configurable in 12 or 24 ports and supports 4, 8, or 16 Gbps speeds in an efficiently designed 1U package. It also provides a simplified deployment process and a point-and-click user interface making it both powerful and easy to use. The SN3000B Switch offers low-cost access to industry-leading Storage Area Network(SAN) technology while providing "pay-as-you-grow" scalability to meet the needs of an evolving storage environment.

Specification:

• Fibre Channel ports: 12- and 24-port configurations (12-port increment through Ports on Demand [PoD] license); universal (E, F, M, EX, D) ports
• Number of ports:
• 24 - Fibre Channel
• 12 or 24 Active
• Aggregate switch bandwidth: 768 Gb/s; Maximum
• Encryption capability: No
• Protocol support: Fibre Channel
• Performance: Auto-sensing of 4, 8, and 16 Gbps port speeds
• ISL Trunking: Frame-based trunking with up to eight 16 Gbps ports per ISL trunk; up to 128 Gbps per ISL trunk. Exchange-based load balancing across ISLs with DPS included in Fabric OS. There is no limit to how many trunk groups can be configured in the switch.
• Fabric latency: Latency for locally switched ports is 700 ns; encryption/compression is 5.5 sec per node; Forward Error Correction (FEC) adds 400 ns between E_Ports (enabled by default)
• Maximum frame size: 2112-byte payload
• Classes of service: Class 2, Class 3, Class F (inter-switch frames)
• Port types: D_Port (Diagnostic Port), E_Port, EX_Port, F_Port, M_Port (Mirror Port); selfdiscovery based on switch type (U_Port); optional port type control Access Gateway mode: F_Port and NPIV-enabled N_Port
• Data traffic types: Fabric switches supporting unicast
• Media types: Hot-pluggable, B-Series Branded Small Form Factor Pluggable (SFP), LC connector; Short-Wave Laser (SWL), Long-Wave Laser (LWL); distance depends on fiber-optic cable and port speed. Supports SFP+ (16/8 Gbit/sec) optical transceivers.
• USB: One USB port for system log file downloads or firmware upgrades
• Fabric services: Simple Name Server (SNS); Registered State Change Notification (RSCN), NTP, RADIUS, RCS (Reliable Commit Service), Dynamic Path Selection (DPS), Brocade Advanced Zoning, WEB TOOLS™. Optional Fabric Services include: Fabric Watch™, Extended Fabrics, ISL Trunking, End-to-End Performance Monitoring (APM) and Adaptive Networking with QoS.
• Options: SFP media, USB Device
• Availability features: Hot code load; Ports on demand with no downtime; optional hot-swappable redundant power supply

Management

• Management features:
• B-series SAN Network Advisor
• Integration with Storage Essentials
• Management software supported: SSH v2, HTTP/HTTPS, SNMP v1/v3, Telnet; SNMP; WEBTOOLS, B-series SAN Network Advisor, SMI-S, RADIUS, LDAP
• Management access: 10/100 Mbps Ethernet (RJ-45), in-band over Fibre Channel, serial port (RJ-45), and one USB port
• Diagnostics: POST and embedded online/offline diagnostics including FCPing, Pathinfo (FCTraceroute), Forward Error Correction (FEC), etc. Diagnostic Port (D-Port) diagnostic features for physical link trouble shooting
• Software (optional):
• Power Pack+ Software
• 12-Port Upgrade
• SAN Network Advisor Professional+ or Enterprise

Dimensions and Weight

• Enclosure: Back-to-front airflow; power from back
• Form factor: 1U
• Minimum Dimensions (W x D x H): 23.44 x 28.76 x 8.52 in
• Weight: 26.07 lbs

Environmental

Power and Cooling

• Power supplies: Single power supply with integrated system cooling fan; Optional hotswappable dual redundant power supply
• AC Input: 85 V to 264 V ~5 A to 2.5 A
• Input line frequency: 47 Hz to 63 Hz
• Power Consumption:
• 80 watts with all 24 ports populated with 16 Gbps SWL optics
• 60 watts for empty chassis with no optics

Boot Log:

Fabric OS: v7.1.0b
Made on: Tue Mar 26 22:49:09 2013
Flash: Wed Aug 14 12:18:04 2013
BootProm: sn3000b
switchType: 118.1
switchState: Online
switchMode: Native
switchRole: Principal
switchDomain: 1
switchId: fffc01
switchWwn: 10:00:00:05:33:f4:d5:67
zoning: OFF
switchBeacon: OFF
FC Router: OFF
FC Router BBFabric ID: 1
AddressMode: 0Index PortAddress Media Speed State 00 010000 --N16 No_Module FC(POD License Not Assigned Yet)
11 010100 --N16 No_Module FC(POD License Not Assigned Yet)
22 010200 --N16 No_Module FC(POD License Not Assigned Yet)
33 010300 --N16 No_Module FC(POD License Not Assigned Yet)
44 010400 --N16 No_Module FC(POD License Not Assigned Yet)
55 010500 --N16 No_Module FC(POD License Not Assigned Yet)
66 010600 --N16 No_Module FC(POD License Not Assigned Yet)
7 7010700 -- N16No_Module FC (POD License Not Assigned Yet)
88 010800 --N16 No_Module FC(POD License Not Assigned Yet)
99 010900 --N16 No_Module FC(POD License Not Assigned Yet)
1010 010a00 --N16 No_Module FC(POD License Not Assigned Yet)
1111 010b00 --N16 No_Module FC(POD License Not Assigned Yet)
1212 010c00 --N16 No_Module FC(POD License Not Assigned Yet)
1313 010d00 --N16 No_Module FC(POD License Not Assigned Yet)
1414 010e00 --N16 No_Module FC(POD License Not Assigned Yet)
1515 010f00 --N16 No_Module FC(POD License Not Assigned Yet)
1616 011000 --N16 No_ModuleFC (POD License Not Assigned Yet)
1717 011100 --N16 No_Module FC(POD License Not Assigned Yet)
1818 011200 --N16 No_Module FC(POD License Not Assigned Yet)
1919 011300 --N16 No_Module FC(POD License Not Assigned Yet)
2020 011400 --N16 No_Module FC(POD License Not Assigned Yet)
2121 011500 --N16 No_Module FC(POD License Not Assigned Yet)
2222 011600 --N16 No_Module FC(POD License Not Assigned Yet)
2323 011700 --N16 No_Module FC(POD License Not Assigned Yet)
sn3000b:admin>licensePort -show
24 ports are available in this switch
No POD licenses are installed
Dynamic POD method is in use
12 port assignments are provisioned for usein this switch:
12 port assignments are provisioned bythe base switch license
* 12 port assignments are added if thefirst POD license is installed
*0 more assignments are added if the second POD license is installed
0 ports are assigned to installed licenses:
0 ports are assigned to the baseswitch license
Ports assigned to the base switch license:
None
Ports assigned to the first POD license:
None
Ports assigned to the second POD license:
None
Ports not assigned to a license:
0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12,13, 14, 15
16, 17, 18, 19, 20, 21, 22, 2312 license reservations are still availablefor use by unassigned Unit: 1
FanDirection: Forward
Time Awake: 0 daysFAN Unit: 2
FanDirection: Forward
Time Awake: 0 daysPOWER SUPPLY Unit: 1
Power Source: AC
Time Awake: 0 daysPOWER SUPPLY Unit: 2
PowerSource: AC
Time Awake: 0 daysCHASSIS/WWN Unit: 1
HeaderVersion: 2
Power Usage(Watts): -34
Factory PartNum: 40-1000737-02
Factory SerialNum: CCD1929J00B
Manufacture: Day: 11 Month: 10Year: 2012
Update: Day: 17 Month: 12Year: 2019
Time Alive: 2290 days
Time Awake: 0 days
ID: BRD0000CA
Part Num: BROCAD0000650
Serial Num: HealthReport Reporttime: 12/08/2021 07:14:38 PM
Switch Name: sn3000b
IP address: 10.127.147.107
SwitchState: HEALTHY
Duration: 00:00Power suppliesmonitor HEALTHY
Temperaturesmonitor HEALTHY
Fans monitor HEALTHY
Flashmonitor HEALTHY
Marginal portsmonitor HEALTHY
Faulty portsmonitor HEALTHY
Missing SFPsmonitor HEALTHY
Error portsmonitor HEALTHY
Fabric Watch isnot licensed
Detailed portinformation is not included
sn3000b:admin>


VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED250 excluding VAT

VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK

CS 279761 298683 298682

MJQW937A/REF -1
