HP Storageworks 8/80 AM872A 8Gbps 48 Ports Active SAN Fibre Switch 492297-001
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

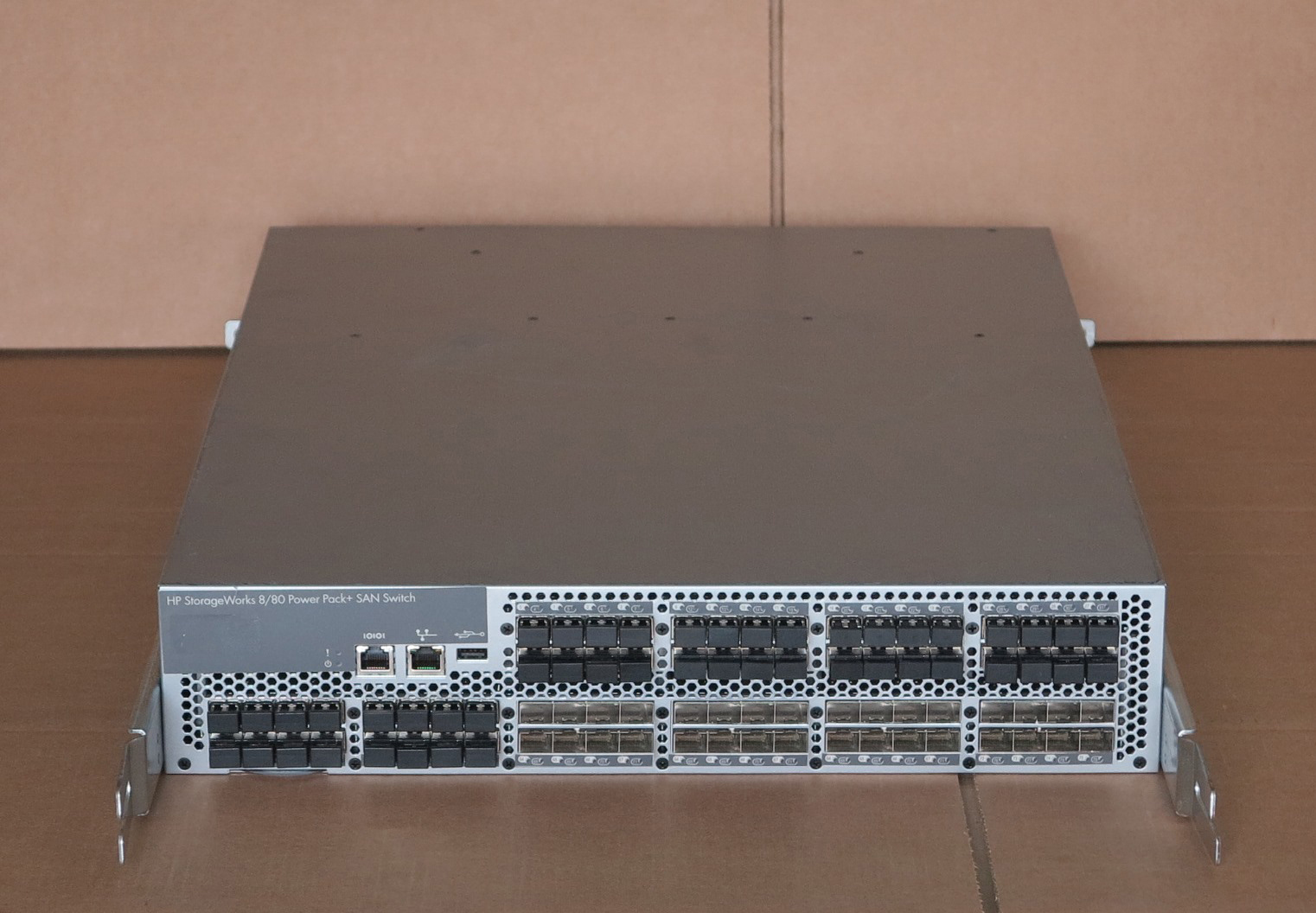

HP Storageworks 8/80 AM872A 8Gbps 48 Ports Active SAN Fibre Switch 492297-001
Price: GB $2000.00
HP Storageworks 8/80 SAN Power Pack Switch

AM872A 492297-001 HP-5320-0001

In good condition and full working order

HP ONSITE WARRANTY UNTIL 25/10/2017

48 Ports Active AndFabric,Enhanced Group Management,8 Gig FC,Extended Fabric,Fabric Watch,

Performance Monitor,Trunking,Adaptive Networking, AndServer Application Optimization licenses



Included

  • 1 xHP Storageworks 8/80 48 Ports Active SAN Fibre Switch 492297-001
  • 48 x SFP's

    HP StorageWorks 8/80 SAN Switch is ideal for medium-to-large-sized organizations that need a scalable and high-availability solution to meet rapidly evolving storage requirements. When deployed as a core SAN fabric switch, the fully enabled 80 port SAN Switch provides a single-switch core footprint that is ideal for SAN fan-out using lower-density B-series switches. The 8/80 SAN Switch features a non-blocking architecture with as many as 80 ports concurrently active at 8 Gbit/sec full duplex providing an aggregate bandwidth of 1280 Gbit/sec. Optional Integrated Routing provides selective device sharing while maintaining remote fabric isolation for higher levels of scalability and fault isolation. The Power Pack+ software provides the SAN administrator with the necessary tools to monitor the health and performance of the network through a single pane of glass. Enhanced capabilities ensures ample bandwidth for mission-critical applications.

    Features

    • Manageable
    • Trunking
    • Auto-sensing per device
    • ISL support
    • Firmware upgradable
    • Full duplex capability

    Specifications


    General
    • Device Type: Switch - 80 ports
    • Enclosure Type: Rack-mountable - 2.0 nm
    • Ports: 80 x 8Gb Fibre Channel
    • Remote Management Protocol: SNMP 3, Telnet, HTTPS, SNMP 1, HTTP
    • Encryption Algorithm: SSL
    • Authentication Method: DH-CHAP, LDAP, Secure Shell v.2 (SSH2), RADIUS
    Expansion / Connectivity
    • Interfaces: USB : 1 x 8Gb Fibre Channel - LC - Management, 80 x Ethernet 10Base-T/100Base-TX - RJ-45 - Management, 1 x RS-232 - RJ-45
    Power
    • Power: Device Power supply - hot-plug / redundant
    • Installed Qty: 2
    • Voltage Required: AC 120/230 V ( 50/60 Hz )
    • Power Consumption: Operational 275.0 Watt
    Miscellaneous
    • Compliant Standards NEMKO, CSA, CB, CE, GOST, TUV, UL 60950-1, IEC 60950-1
    Dimensions & Weight
    • Width: 16.9 in
    • Depth: 24.1 in
    • Height: 3.4 in
    • Weight: 34.4 lbs
    Environmental Parameters
    • Min Operating Temperature: 32.0 °F
    • Max Operating Temperature: 104.0 °F
    • Humidity Range Operating: 10 - 85%

    Boot Log
    • Switch 1
    Brocade5100:admin> version
    Kernel:2.6.14.2
    Fabric OS:v6.2.0d
    Made on:Wed Mar 25 17:53:21 2009
    Flash:Wed Jan 20 12:14:29 Router:OFF
    FC Router BB Fabric ID: 1Area Port Media Speed POD License) Disabled
    4949idN8No_Light(No POD License) Disabled
    5050idN8No_Light(No POD License) Disabled
    5151idN8No_Light(No POD License) Disabled
    5252idN8No_Light(No POD License) Disabled
    5353idN8No_Light(No POD License) Disabled
    5454idN8No_Light(No POD License) Disabled
    5555idN8No_Light(No POD License) Disabled
    5656idN8No_Light(No POD License) Disabled
    5757idN8No_Light(No POD License) Disabled
    5858idN8No_Light(No POD License) Disabled
    5959idN8No_Light(No POD License) Disabled
    6060idN8No_Light(No POD License) Disabled
    6161idN8No_Light(No POD License) Disabled
    6262idN8No_Light(No POD License) Disabled
    6363idN8No_Light(No POD License) Disabled
    6464--N8No_Module(No POD License) Disabled
    6565--N8No_Module(No POD License) Disabled
    6666--N8No_Module(No POD License) Disabled
    6767--N8No_Module(No POD License) Disabled
    6868--N8No_Module(No POD License) Disabled
    6969--N8No_Module(No POD License) Disabled
    7070--N8No_Module(No POD License) Disabled
    7171--N8No_Module(No POD License) Disabled
    7272--N8No_Module(No POD License) Disabled
    7373--N8No_Module(No POD License) Disabled
    7474--N8No_Module(No POD License) Disabled
    7575--N8No_Module(No POD License) Disabled
    7676--N8No_Module(No POD License) Disabled
    7777--N8No_Module(No POD License) Disabled
    7878--N8No_Module(No POD License) Disabled
    7979--N8No_Module(No POD License) DisabledBrocade5100:admin> licenseshow
    Fabric license
    Enhanced Group Management license
    8 Gig FC license
    Extended Fabric license
    Fabric Watch license
    Performance Monitor license
    Trunking license
    Adaptive Networking license
    Server Application Optimization licenseBrocade5100:admin> chassisshowFANUnit: 1
    Time Awake:0 daysFANUnit: 2
    Time Awake:0 daysFANUnit: 3
    Time Awake:0 daysPOWER SUPPLYUnit: 1
    Header Version:2
    Factory Part Num:60-0300031-02
    Factory Serial Num:TQ2J9385040
    Manufacture:Day: 23Month:9Year: 2009
    Update:Day:0Month:0Year: 0
    Time Alive:0 days
    Time Awake:0 days
    ID:2J
    Part Num:SP640-Y01A
    Serial Num:TQ2J9385040
    Revision Num:CPOWER SUPPLYUnit: 2
    Header Version:2
    Factory Part Num:60-0300031-02
    Factory Serial Num:TQ2J9385141
    Manufacture:Day: 23Month:9Year: 2009
    Update:Day:0Month:0Year: 0
    Time Alive:0 days
    Time Awake:0 days
    ID:2J
    Part Num:SP640-Y01A
    Serial Num:TQ2J9385141
    Revision Num:CCHASSIS/WWNUnit: 1
    Header Version:2
    Factory Part Num:40-1000123-12
    Factory Serial 2010
    Update:Day: 20Month:1Year: 2010
    Time Alive:0 days
    Time Awake:0 days
    ID:BRD0000CA
    Part Num:BROCAD0000530
    Serial Num:CZC003YGVB
    DC Part Num:40-1000123-12
    DC Serial Num:AHT0452E00N
    DC Manufacture:Day:4Month:1Year: 2010Brocade5100:admin> switchstatusshow
    Switch Health ReportReport time: 06/29/2017 02:16:34 PM
    Switch Name:Brocade5100
    IP supplies monitorHEALTHY
    Temperatures monitorHEALTHY
    Fans monitorHEALTHY
    Flash monitorHEALTHY
    Marginal ports monitorHEALTHY
    Faulty ports monitorHEALTHY
    Missing SFPs monitorHEALTHYAll ports are healthy

    • Switch 2
    Brocade5100:admin> version
    Kernel:2.6.14.2
    Fabric OS:v6.2.0d
    Made on:Wed Mar 25 17:53:21 2009
    Flash:Wed Jan 20 12:05:19 Router:OFF
    FC Router BB Fabric ID: 1Area Port Media Speed POD License) Disabled
    4949idN8No_Light(No POD License) Disabled
    5050idN8No_Light(No POD License) Disabled
    5151idN8No_Light(No POD License) Disabled
    5252idN8No_Light(No POD License) Disabled
    5353idN8No_Light(No POD License) Disabled
    5454idN8No_Light(No POD License) Disabled
    5555idN8No_Light(No POD License) Disabled
    5656idN8No_Light(No POD License) Disabled
    5757idN8No_Light(No POD License) Disabled
    5858idN8No_Light(No POD License) Disabled
    5959idN8No_Light(No POD License) Disabled
    6060idN8No_Light(No POD License) Disabled
    6161idN8No_Light(No POD License) Disabled
    6262idN8No_Light(No POD License) Disabled
    6363idN8No_Light(No POD License) Disabled
    6464--N8No_Module(No POD License) Disabled
    6565--N8No_Module(No POD License) Disabled
    6666--N8No_Module(No POD License) Disabled
    6767--N8No_Module(No POD License) Disabled
    6868--N8No_Module(No POD License) Disabled
    6969--N8No_Module(No POD License) Disabled
    7070--N8No_Module(No POD License) Disabled
    7171--N8No_Module(No POD License) Disabled
    7272--N8No_Module(No POD License) Disabled
    7373--N8No_Module(No POD License) Disabled
    7474--N8No_Module(No POD License) Disabled
    7575--N8No_Module(No POD License) Disabled
    7676--N8No_Module(No POD License) Disabled
    7777--N8No_Module(No POD License) Disabled
    7878--N8No_Module(No POD License) Disabled
    7979--N8No_Module(No POD License) DisabledBrocade5100:admin> licenseshow
    Fabric license
    Enhanced Group Management license
    8 Gig FC license
    Extended Fabric license
    Fabric Watch license
    Performance Monitor license
    Trunking license
    Adaptive Networking license
    Server Application Optimization licenseBrocade5100:admin> chassisshowFANUnit: 1
    Time Awake:0 daysFANUnit: 2
    Time Awake:0 daysFANUnit: 3
    Time Awake:0 daysPOWER SUPPLYUnit: 1
    Header Version:2
    Factory Part Num:60-0300031-02
    Factory Serial Num:TQ2J9385201
    Manufacture:Day: 23Month:9Year: 2009
    Update:Day:0Month:0Year: 0
    Time Alive:0 days
    Time Awake:0 days
    ID:2J
    Part Num:SP640-Y01A
    Serial Num:TQ2J9385201
    Revision Num:CPOWER SUPPLYUnit: 2
    Header Version:2
    Factory Part Num:60-0300031-02
    Factory Serial Num:TQ2J9385019
    Manufacture:Day: 23Month:9Year: 2009
    Update:Day:0Month:0Year: 0
    Time Alive:0 days
    Time Awake:0 days
    ID:2J
    Part Num:SP640-Y01A
    Serial Num:TQ2J9385019
    Revision Num:CCHASSIS/WWNUnit: 1
    Header Version:2
    Factory Part Num:40-1000123-12
    Factory Serial 2010
    Update:Day: 20Month:1Year: 2010
    Time Alive:0 days
    Time Awake:0 days
    ID:BRD0000CA
    Part Num:BROCAD0000530
    Serial Num:CZC003YGV9
    DC Part Num:40-1000123-12
    DC Serial Num:AHT0447E02J
    DC Manufacture:Day:6Month:1Year: 2010Brocade5100:admin> switchstatusshow
    Switch Health ReportReport time: 06/29/2017 08:08:23 AM
    Switch Name:Brocade5100
    IP supplies monitorHEALTHY
    Temperatures monitorHEALTHY
    Fans monitorHEALTHY
    Flash monitorHEALTHY
    Marginal ports monitorHEALTHY
    Faulty ports monitorHEALTHY
    Missing SFPs monitorHEALTHYAll ports are healthy

    LA 173729 - CZC003YGVB SW SFP
    LA 173729 - CZC003YGV9SW SFP
