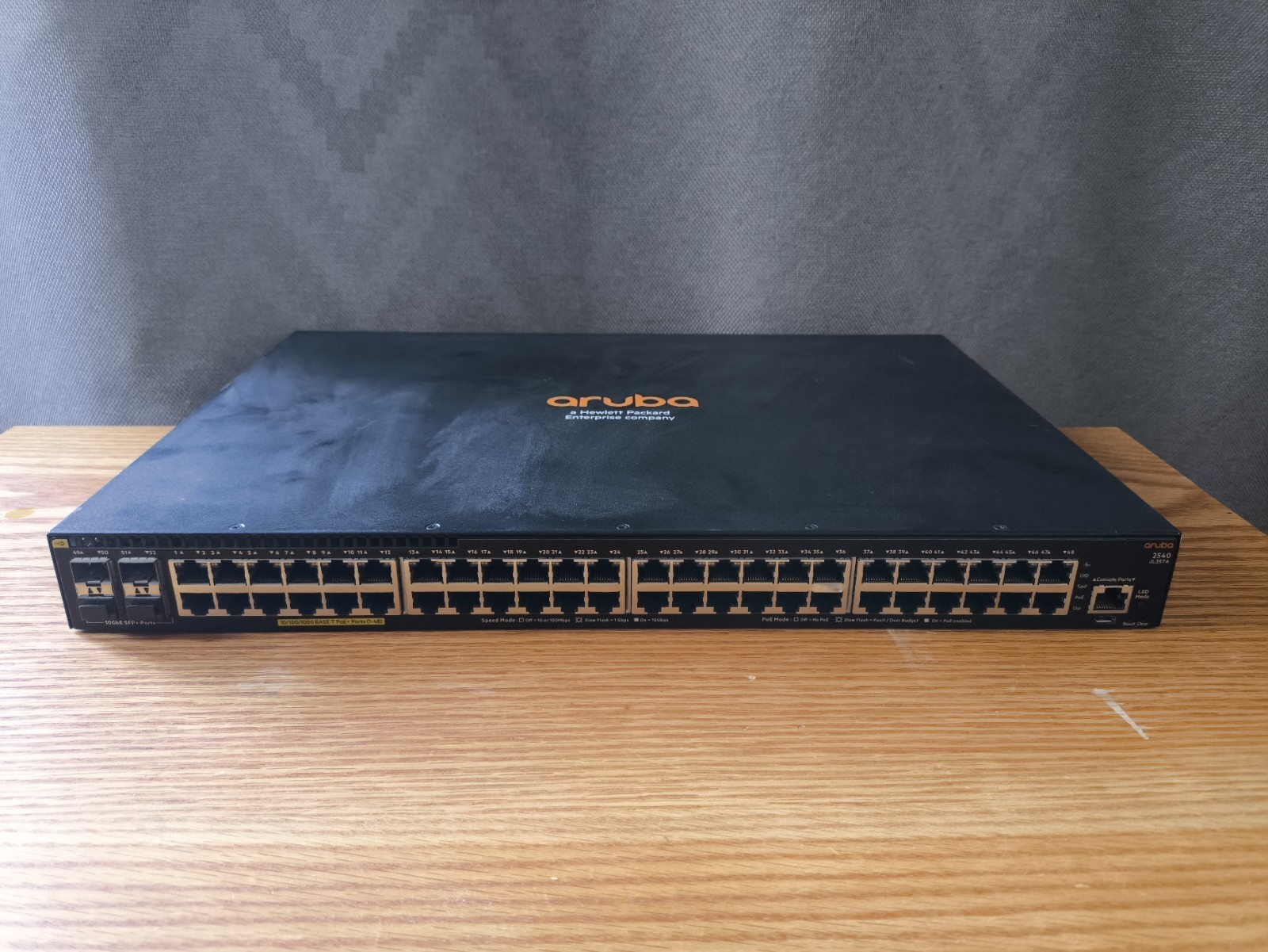

HPE Aruba 2540 (JL357A) 48 Port Rack Mountable Ethernet Switch For Sale
|
 When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Specifications Description Dimensions (H x W x D) 4.39 x 44.25 x 30.42 cm (1.73 x 17.42 x 11.98 in) (1U height) Weight 4.46 kg (9.83 lb) Memory and processor Performance 1000Mb latency:< 3.8 µs (64B packets) 10 Gb/s latency:< 1.6 µs (64B packets) Throughput:Up to 112.0 Mp/s Switching capacity:176 Gb/s Routing table size 2000 entries (IPv4), 1000 entries (IPv6) MAC address table size:16384 entries
I/O ports and slots 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 type 10 BASE-T, IEEE 802.3u type 100 BASE-TX, IEEE 802.3ab type 1000 BASE-T) Duplex: 10 BASE-T/100 BASETX: Half or full 1000 BASE-T: Full only 4 SFP+ 1/10 GbE ports; PHY-less
Additional ports and slots 1 Dual-Personality (RJ-45 or USB micro-B) serial console port Environment Operating temperature:0° to 45°C (32° to 113°F); up to 5000 ft, 0° to 40°C (32° to 104°F) up to 10000 ft Operating relative humidity:15% to 95% @ 40°C (104°F), noncondensing Non-Operating/storage temperature:(-40°) to 70°C ((-40°) to 158°F); up to 15000 ft Non-Operating/storage relative humidity:15% to 95% @ 65°C (149°F) Acoustic:Power: 55.7 dB, Pressure: 41.7 dB Airflow direction:Side-to-Side
Electrical characteristics Frequency:50/60 Hz 80plus.org certification:Silver Maximum heat dissipation:1652.13 kJ/hr (1566 BTU/hr) Voltage:100 - 127 / 200 - 240 V ac, rated Current:5.1/2.5 A Maximum power rating:459 W Idle power:48.6 W PoE power:370 W PoE+
NOTE Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the Worst-Case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (If equipped), 100% traffic, all ports plugged in, and all modules populated. Safety UL 60950-1 2nd Edition EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013 IEC 60950-1:2005 +A1:2009 +A2:2013 CSA 22.2 No. 60950-1- 07 2nd EN 60825-1:2007 / IEC 60825-1:2007 Class 1
Emissions VCCI Class A CNS 13438 ICES-003 Class A FCC CFR 47 Part 15, Class A EN 55022: 2010/CISPR-22, Class A
Immunity Generic:EN 55024:2010/CISPR 24 ESD:IEC 61000-4-2 Radiated:IEC 61000-4-3 EFT/Burst:IEC 61000-4-4 Surge:IEC 61000-4-5 Conducted:IEC 61000-4-6 Power frequency magnetic field:IEC 61000-4-8 Voltage dips and interruptions:IEC 61000-4-11 Harmonics:EN 61000-3-2, IEC 61000-3-2 Flicker:EN 61000-3-3, IEC 61000-3-3
Management  |
|
|
|
