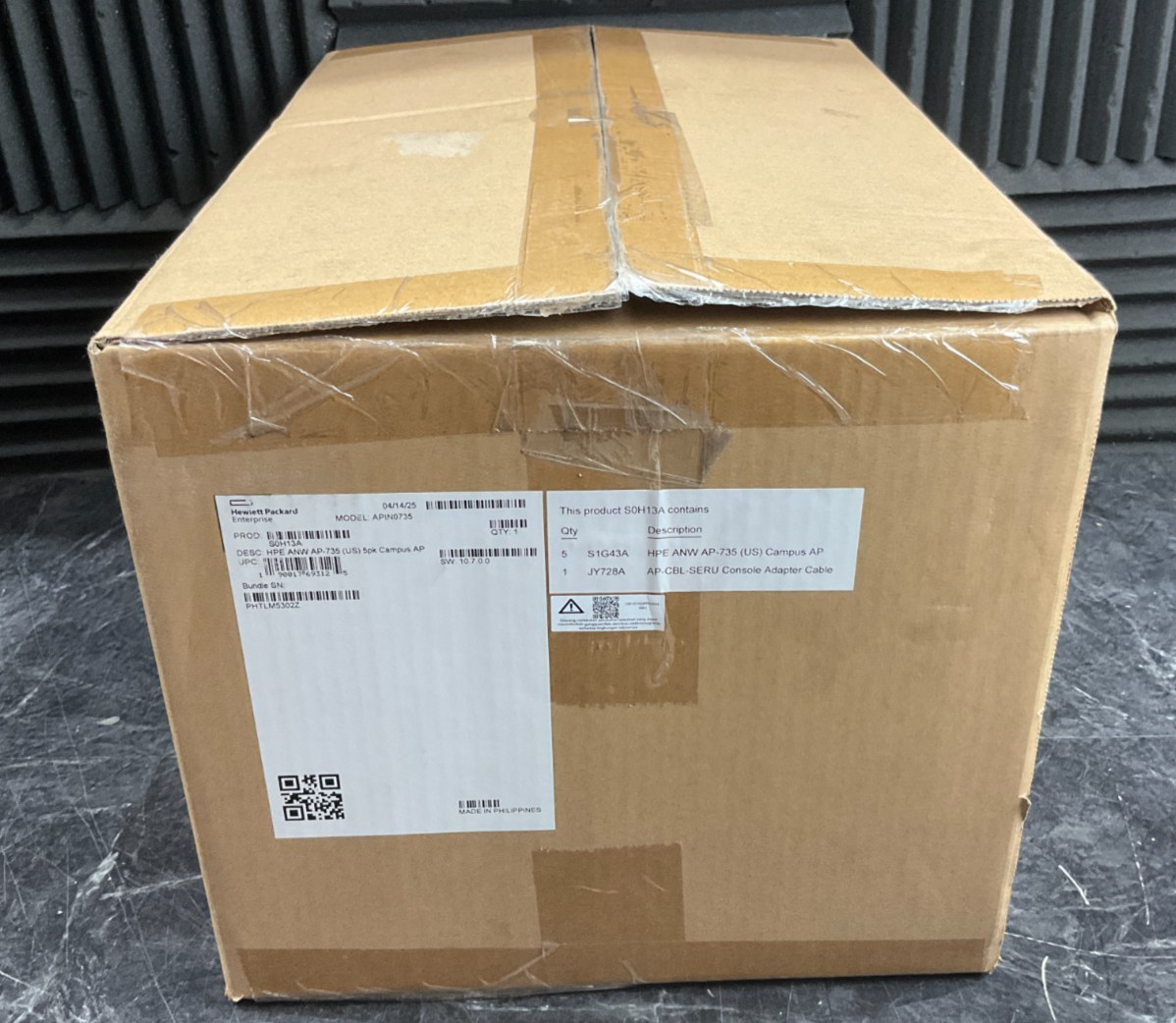

HPE Aruba AP-735 Access Point 5 pack S0H13ANEW - SEALED INSIDE OPEN BOX
DeploymentIndoorWi-Fi generationWi-Fi 7 (802.11be)Wi-Fi radiosTriple 2x2Radio configuration options2.4 GHz + 5 GHz + 6 GHz or5 GHz + 5 GHz + 6 GHz or5 GHz + 6 GHz + 6 GHzMax bandwidths and peak data rate per band20/40 (2.4 GHz), 20/40/80/160 (5 GHz), 20/40/80/160/320 (6 GHz), maximum peak data rate 14.4 GbpsWi-Fi antennaIntegrated downtilt omnidirectional antennas for 2x2 MIMO with peak antenna gain of 5.1 dBi in 2.4 GHz, 5.5 dBi in 5 GHz (5.2 dBi in dual‑5 GHz mode) and 5.3 dBi in 6 GHz (5.2 dBi in dual‑6 GHz mode).
Built‑in antennas are optimized for horizontal ceiling-mounted orientation of the AP. The downtilt angle for maximum gain is roughly 30° to 40°.Ultra tri-band (UTB) filteringYesIoT supportDual BLE and IEEE 802.15.4/ZigbeeDual USBIntegrated sensorBarometric sensorLocation services802.11 FTM support; GNSS receiver; BLE channel soundingCellular supportUSB LTE modem (sold separately)Wired network interface2 x 5GbEMACsec supportYesPortsE0, E1: Two Ethernet wired network ports (RJ‑45)U0, U1: Two USB 2.0 host interfaces (Type A connector)Kensington security slotSerial console interface (proprietary, micro‑B USB physical jack)Power sourcesDC power; PoE-PDAP operating system supportHPE Aruba Networking Wireless Operating System 10AP managementOn-premises; Public Cloud; Virtual Private Cloud (VPC); as a ServiceCertificationsUL2043 plenum ratingWi‑Fi Alliance®Wi-Fi CERTIFIED® a, b, g, n, ac, 6, 7WPA2 and WPA3 (Enterprise, Personal), Enhanced Open (OWE)WMM, WMM-PS, W-Fi agile multibandBluetooth SIGEthernet Alliance (PoE, PD device, class 5)
