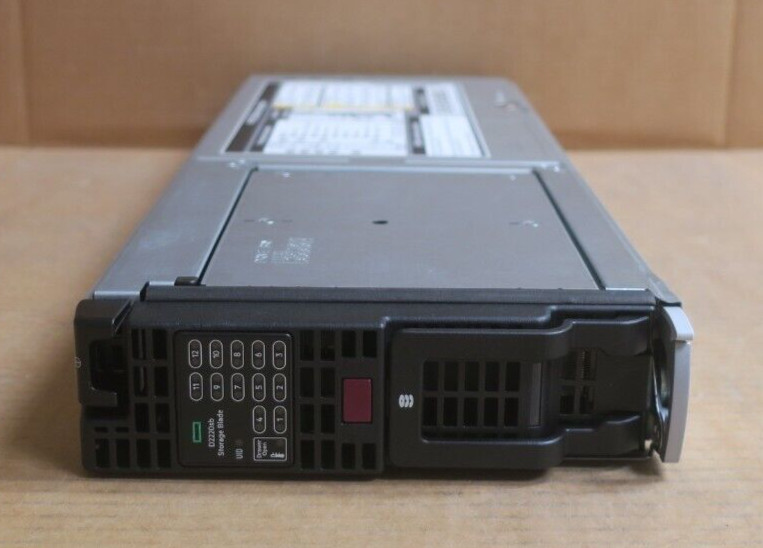

HPE D2220sb Storage Blade 12x 2.5" SAS Bays 12x 1.8TB HDD QW918A 703920-002Model: D2220sbP/N: QW918AP/N: 671668-001In Good Condition,Full Working Order
Tested
2 Years WarrantyIncluded

• 1 xHPE D2220sb Storage Blade 12x 2.5" SAS Bays QW918A 671668-001 with:
• 12 x HP 1.8TB 10K SAS 12G 2.5" Hard Drive HDD 872738-001

Key Features
Features of the D2220sb include:SFF (SAS/SATA/SAS SSD/SATA SSD) support - Delivering data transfer rates up to 6 Gb/s for SAS, SATA, SAS SSD, SATA SSD

• Support for up to twelve (12) hot plug SFF SAS/SATA/SAS SSD/SATA SSD disk drives in a half-height blade
• Internal Smart Array P420i with 2 GB flash-backed write cache
• Simple configuration and setup with HPE Smart Storage Administrator (HPE SSA)
• Easy to maintain and troubleshoot with industry standard management tools including HPE System Insight Manager
• Use with HPE StoreVirtual VSA software to create a robust shared storage environment inside BladeSystem enclosures

Mix and Match of Hard Drive Types:

• D2220sb supports mixing of different drive types (SAS/SATA, SSD/HDD) in a single enclosure. However, please note also that an array can be created across only one drive type.

Universal hot plug Hard Drive:

• Form factor is for use across multiple HPE ProLiant servers, disk enclosures and storage systems. With compatibility across many enterprise platforms, you are free to deploy and re-deploy these drives to quickly deliver increased storage capacity, migrate data between systems, and easily manage spare drives.

LED Indicators:

• Front panel LEDs indicate drive activity and system health status

Fault Tolerance:

• Using the internal Smart Array P420i controller with 2 GB flash-backed write cache, the D2220sb can be configured for RAID levels 0, 1, 1 + 0, 5, and 6 (RAID ADG)

Manageability:

• All Smart Array products utilize a standard set of management and utility software. These tools minimize Total Cost of Ownership (TCO) by reducing training requirements and technical expertise necessary to install and maintain the HPE server storage.

SpecificationSmart Array P420i Controller

• Disk Drive and Enclosure Interface: 6G SAS (Serial Attached SCSI)
• SAS Connectors: 2 internal (SFF8484) x4 wide port connectors
• Cache Memory Speed: Embedded 72-bit DDR3 FBWC provides up to 4.2 GB/s maximum bandwidth.
• SAS Speed: x8 6G SAS
• Cache Memory: 2 GB embedded flash-backed write cache; ECC protection, battery-backed, and transportable
• Logical Drives Supported: Up to 32 logical drives
• Maximum Logical Drive Capacity: 24TB SAS or SATA
• Host Memory Addressing: 64-bit, supporting greater than 4GB server memory space
• RAID Support:
  • RAID 6 with ADG (Advanced Data Guarding)
  • RAID 5 (Distributed Data Guarding)
  • RAID 1+0 (Striping & Mirroring)
  • RAID 0 (Striping)
• Upgradeable Firmware: Upgradeable Firmware with recovery ROM feature

HPE D2220sb Storage Blade

• Dimensions (HxWxD): 5.471cm x 18.070cm x 51.659cm (2.154" x7.114" x 20.338")
• Weight (unloaded): 4.18 KG (9.22 lbs)
• Weight (loaded): 7.10 KG (15.65 lbs)
• Protocol Support: 6Gb/s SAS
• O/S Support: Defined by specific HPE array controller or SAS/ adapter used; please refer to the QuickSpecs and/or User Guide of the specific array controller or adapter
• LED Indicators: UID; System Health LED
• Drive LED Indicators (on drive trays): Drive LED (top) - On-line/Activity; Drive Failure LED (bottom) - Drive Fault/Locate
• Relative Humidity (noncondensing):
  • Operating 20% to 80%
  • Shipping 5% to 95%
• Temperature Range:
  • Operating 50° to 95° F (10° to 35° C°)
  • Shipping -22° to 140° F (-30° to 60° C)

VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED£1500 ex VAT

VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK
