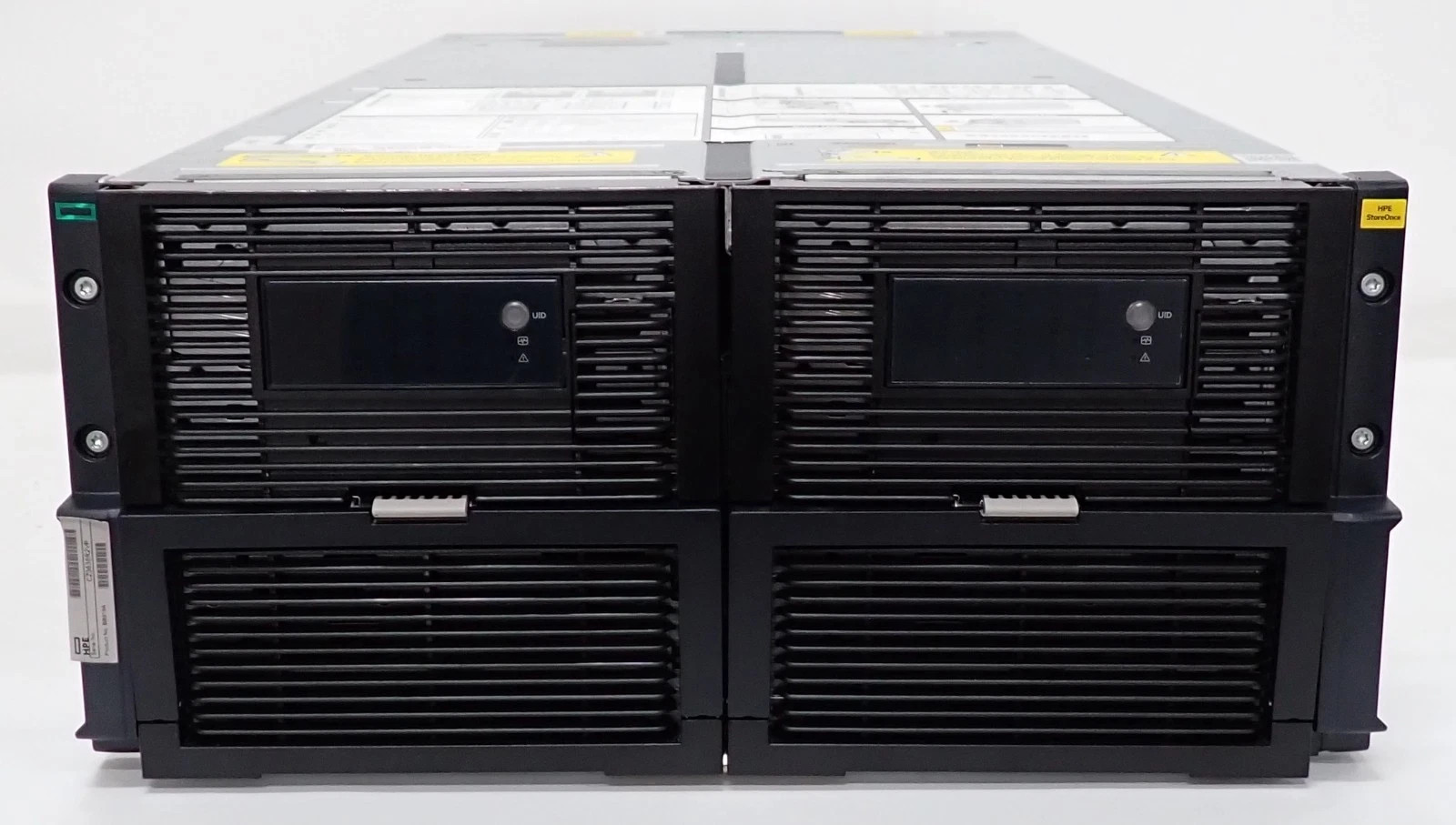

HPE D6020 70x LFF Bay 5U Disk Enclosure +4x Dual Port SAS 12G Controller K2Q28A
Price: GB $1350.00
HPE D6020 70x LFF Bay 5U Disk Enclosure +4x Dual Port SAS 12G Controller +4x PSUModel No:D6020Chassis P/N:822474-001 K2Q28A In Good Condition, Full Working OrderTested1 Year WarrantyIncluded:
1 xHPE D6020 70x LFF Bay 5U Disk Enclosure with:
2 x Drive Drawers each with 35x 3.5" SAS Drive Bays
4 x HP SAS 12G I/O Controller Modules - 823849-001
4 x 1200W Power Supplies
4 x Fan Modules
Key Features:High density, low-cost SAS storage for BladeSystem and ProLiant DL/ML servers
70 LFF Universal SAS, SAS MDL or Solid State drives in 5U form factor.
Two pull-out drive drawers support hot plug large form factor dual-ported SAS, SAS MDL or Solid State drives in just 5U of rack space.
1+2 expansion allows up to three (3) D6020 which can be cascaded for a maximum of 210 drives.
Each pull-out drive drawer is supported by a redundant set of hot-plug power supplies and redundant hot-plug fans. Straight forward SAS architecture provides zoned direct attach storage for BladeSystem servers; just a Smart Array P741m controller in the Blade server, a dual or single 6 Gb/s SAS BL switches in the chassis connected to an D6020.
Connect directly to selected ProLiant Gen9 servers with the Smart Array P441, or the P841 Controllers using a standard 2M SAS cable; Single and Dual Domain environments. No zoning.
12 Gb/s direct connect to ProLiant Gen10 servers using the HPE Smart Array E208e-p SR Gen10 Controller, HPE Smart Array P408e-p SR Gen10 Controller and the HPE Smart Array P408e-m SR Gen10 Controller.
HPE HBA H241 is also supported.
The HPE Apollo A4520 supports six (6) D6020 enclosures per A4520 (3 per node).
Manufacturer Specification:
Product name:HPE D6020 Enclosure with 4x dual SAS 12G I/O modules
Form factor:5U, LFF enclosure
Model differentiator:K2Q28A is the base model for SAS, SAS MDL, or SSDs. Add K2Q23A when using dual-ported SAS drives to create adual domain environment. Includes redundant power supplies and redundant to 140 drives (SAS, SAS MDL, or SSDs) when two (2) D6020 are daisy-chained together
A single BladeSystem enclosure supports up to six (6) HPE D6020 Enclosure externally
Drive description:70 LFF SAS drives
Drive type:
SAS drives:
300 GB 12G 15K LFF Converter Carrier SAS
600 GB 12G 15K LFF Converter Carrier SAS
SAS MDL drives:
2 TB 12G 7.2K LFF MDL SAS
4 TB 12G 7.2K LFF MDL SAS
6 TB 12G 7.2K LFF MDL SAS
8 TB 12G 7.2K LFF MDL SAS
SSDs:
400 GB 12G Mixed Use LFF Converter Carrier SAS
800 GB 12G Mixed Use LFF Converter Carrier SAS
1.6 TB 12G Mixed Use LFF Converter Carrier TB Raw (with 8 TB drive)
Maximum six enclosures in a BladeSystem
Host interface:12 GB/s SAS (6 Gb internal, 12 Gb external)
