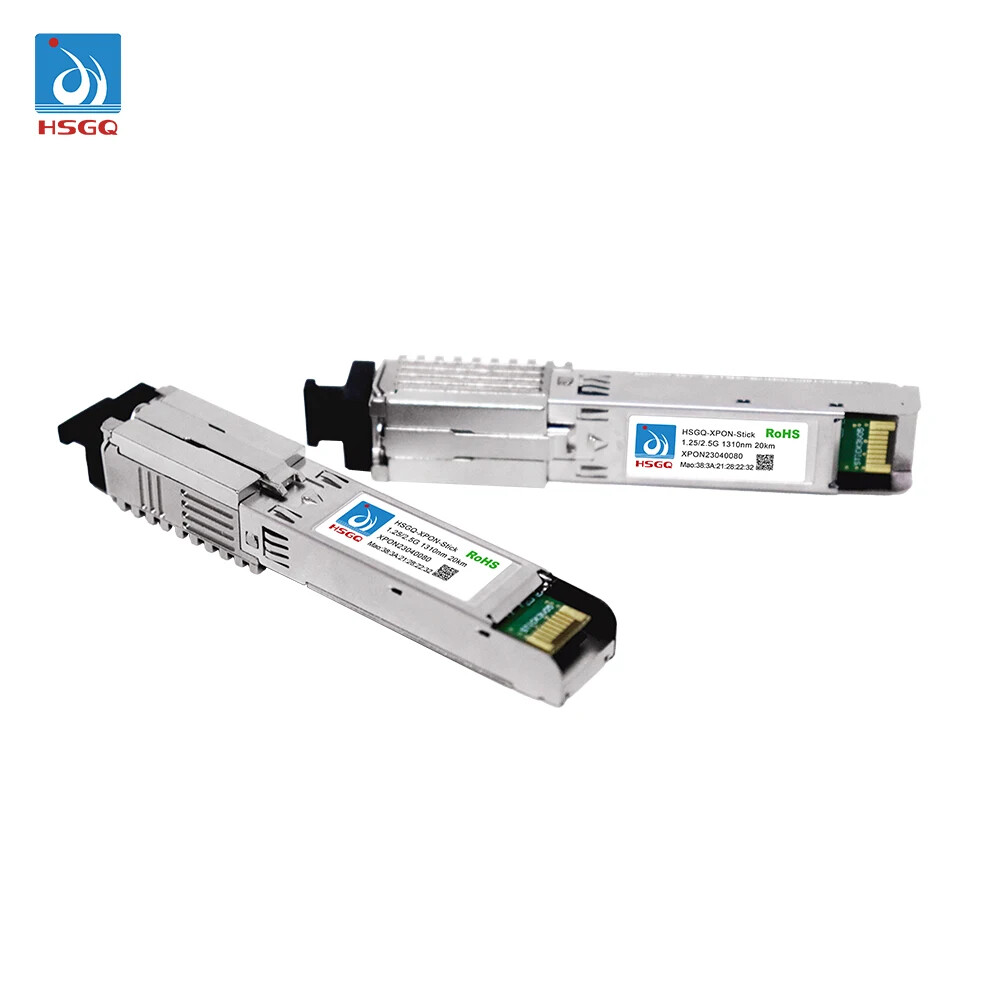

HSGQ GPON XPON ONU Stick SFP with MAC inside for Xpon OLT
Product Features •Single fiber bi-directional data links asymmetric TX 1244Mbps / RX 2488Mbps GPON ONU
application with GPON MAC
function.
• SC/UPC receptacle SFP with GPON ONU MAC inside, “Plug-and-play” via auto-discovery and configuration
• 1310nm DFB burst mode transmitter, 1490nm TIA continuous mode receiver
• Single 3.3V power supply
• Digital diagnostic monitor interface compatible with SFF-8472
• SFP MSA compliance
• Low EMI and excellent ESD protection
• Class I laser safety standard IEC-60825 compliant
• RoHS compliance
• EPON ONU compatible
• Complies with SFP Multi-Source Agreement (MSA) SFF-8074i
• Complies with ITUT-T G.984.2, G.984.2 Amendment 1
• Complies with ITUT G.988 ONU management and control interface (OMCI) specification Product Description
Absolute Maximum Ratings
Parameter Unit Min Typical Max Power Supply Voltage V -0.5 3.6 Storage Temperature 鈩� -40 85 Operating Case Temperature 鈩� -40 85 Operating Relative Humidity % 5 95 RX Input Average Power dBm 0 -7 RECOMMENDED OPERATING ENVIRONMENT Parameters Symbol Min. Typical Max Unit Power Supply Voltage VCC 3.135 3.3 3.465 V Power Supply Current Icc 350 mA Operating Case Temperature TI -40 25 85 鈩� ABSOLUTE MAXIMUM RATING Parameters Symbol Min Max Unit Power Supply Voltage VCC 0 3.6 V Storage Temperature Tc -40 85 V Operating Case Temperature TI -40 85V Relative Humidity RH 5 95 % RX Input Average Power Pmax -7 dB
