Heltec ESP32 Wireless Tracker V2 ESP32-S3 LoRa Mesh Node Compatible with Meshtastic 28dBm High Power SX1262 UC6580 Dual Band GNSS GPS Module Arduino LoRaWAN for Asset Tracking Personnel PositioningProduct Overview Professional LoRa & GNSS Development Kit - Wireless Tracker V2

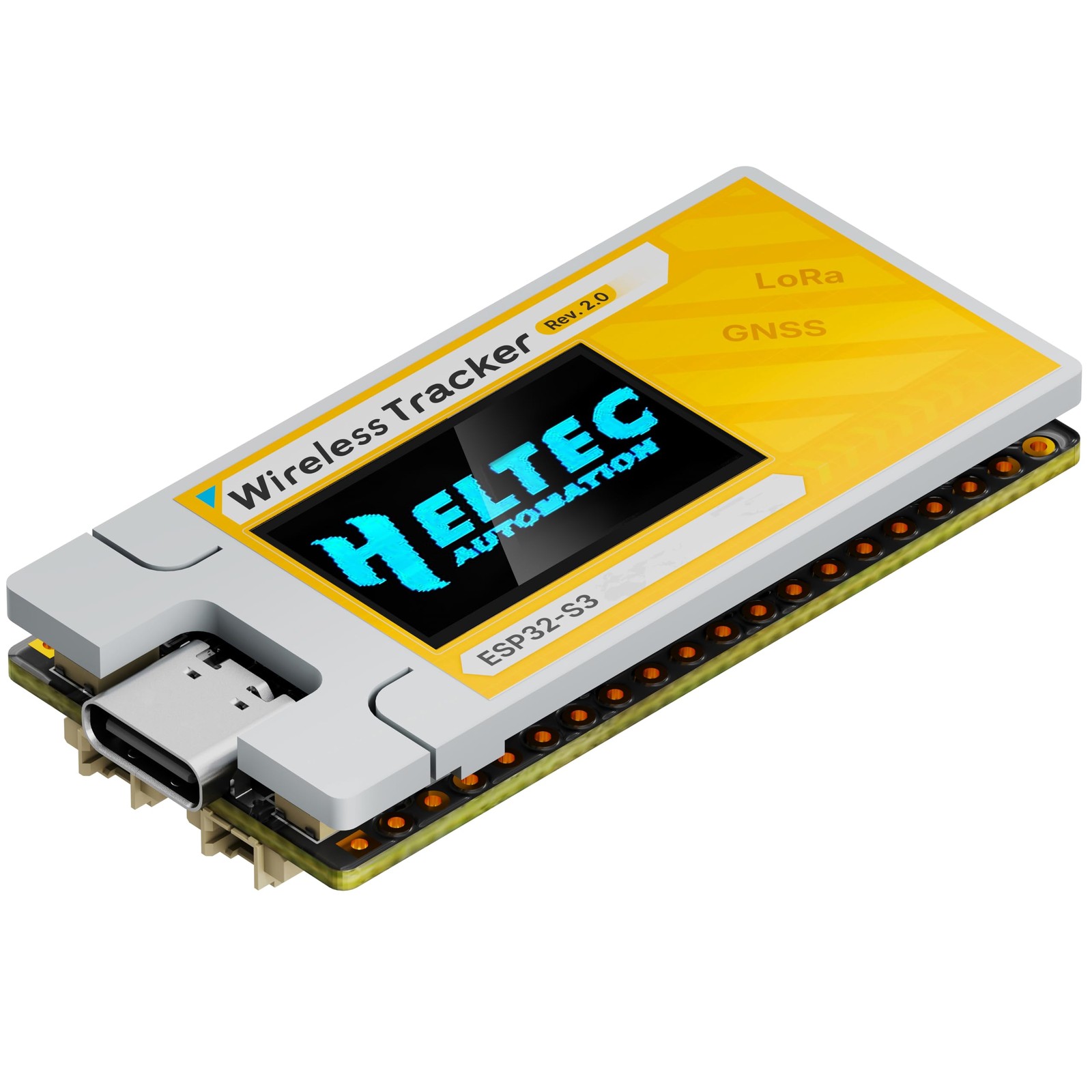

The Wireless Tracker V2 is a next-generation development kit based on the ESP32-S3FN8, specifically engineered for long-range communication and precision tracking. By integrating the SX1262 LoRa chip and the UC6580 GNSS chip, it offers a robust solution for IoT applications such as personnel positioning, livestock tracking, and decentralized mesh networks.

Key Specifications:

• MCU: ESP32-S3FN8 (Xtensa 32-bit LX7 dual-core)
• LoRa: SX1262 (863~928MHz) with 28±1dBm Max TX Power
• GNSS: UC6580 supporting GPS, GLONASS, BDS, Galileo, NAVIC, QZSS
• Display: Onboard 0.96-inch 160*80 dot matrix LCD
• Antenna: Integrated LDS (GNSS/2.4G) + Reserved IPEX for LoRa
• Interface: Type-C USB, Solar Panel Interface, SH1.25 Lithium Battery Port

Frequently Asked Questions:

Q: How does V2 improve over previous versions?
A: The V2 boosts transmission power to 28dBm and incorporates a bypassable LNA, significantly enhancing signal range and reception sensitivity in difficult terrains.

Q: Is it compatible with solar charging?
A: Yes, it includes a dedicated solar panel interface and an integrated battery management system for sustainable outdoor use.

Product Features

• V2 UPGRADED 28dBm ULTRA-LONG RANGE: Take your LoRa node connectivity to the next level with the Heltec Wireless Tracker V2. Engineered with the high-performance SX1262 chip and an upgraded power amplifier, it achieves a maximum transmission power of 28±1dBm. This significant boost ensures superior signal penetration and an ultra-long communication range, making it the ideal backbone for decentralized mesh networks in challenging rural or urban terrains.
• PRECISION MULTI-SYSTEM GPS TRACKING: Experience elite-level asset tracking with the integrated UC6580 GNSS chip. This professional GPS module supports multi-system joint positioning, including GPS, GLONASS, BDS (BeiDou), Galileo, NAVIC, and QZSS. By utilizing dual-frequency signals and LDS antenna technology, the V2 delivers faster time-to-first-fix (TTFF) and centimeter-level accuracy for personnel positioning and remote navigation.
• MESHTASTIC & ESP32-S3 POWERED: Built on the powerful ESP32-S3 dual-core processor, this Meshtastic tracker is fully compatible with LoRaWAN, MeshCore, and open-source Arduino frameworks. It’s a developer’s dream, pre-configured for seamless integration into off-grid communication networks. Whether for disaster relief or outdoor adventuring, the V2 provides a robust platform with comprehensive examples for rapid IoT deployment.
• SOLAR-READY POWER MANAGEMENT: Designed for true off-grid endurance, the board features a dedicated solar panel interface and an onboard SH1.25-2 lithium battery interface. The integrated intelligent management system handles rapid charging, overcharge protection, and battery power detection. It supports automatic seamless switching between USB-C and battery power, ensuring your IoT node remains operational 24/7 in remote installations.
• COMPACT DESIGN WITH REAL-TIME LCD: Despite its rich feature set, the V2 maintains a compact footprint thanks to innovative LDS antennas for GNSS and 2.4G WiFi/Bluetooth. The built-in 0.96-inch LCD display provides vital real-time data at a glance, including signal strength, battery status, and debugging logs. Protected by a rugged design with ESD and short-circuit protection, it’s the ultimate professional tool for secure, long-range wireless tracking.
