Overview:

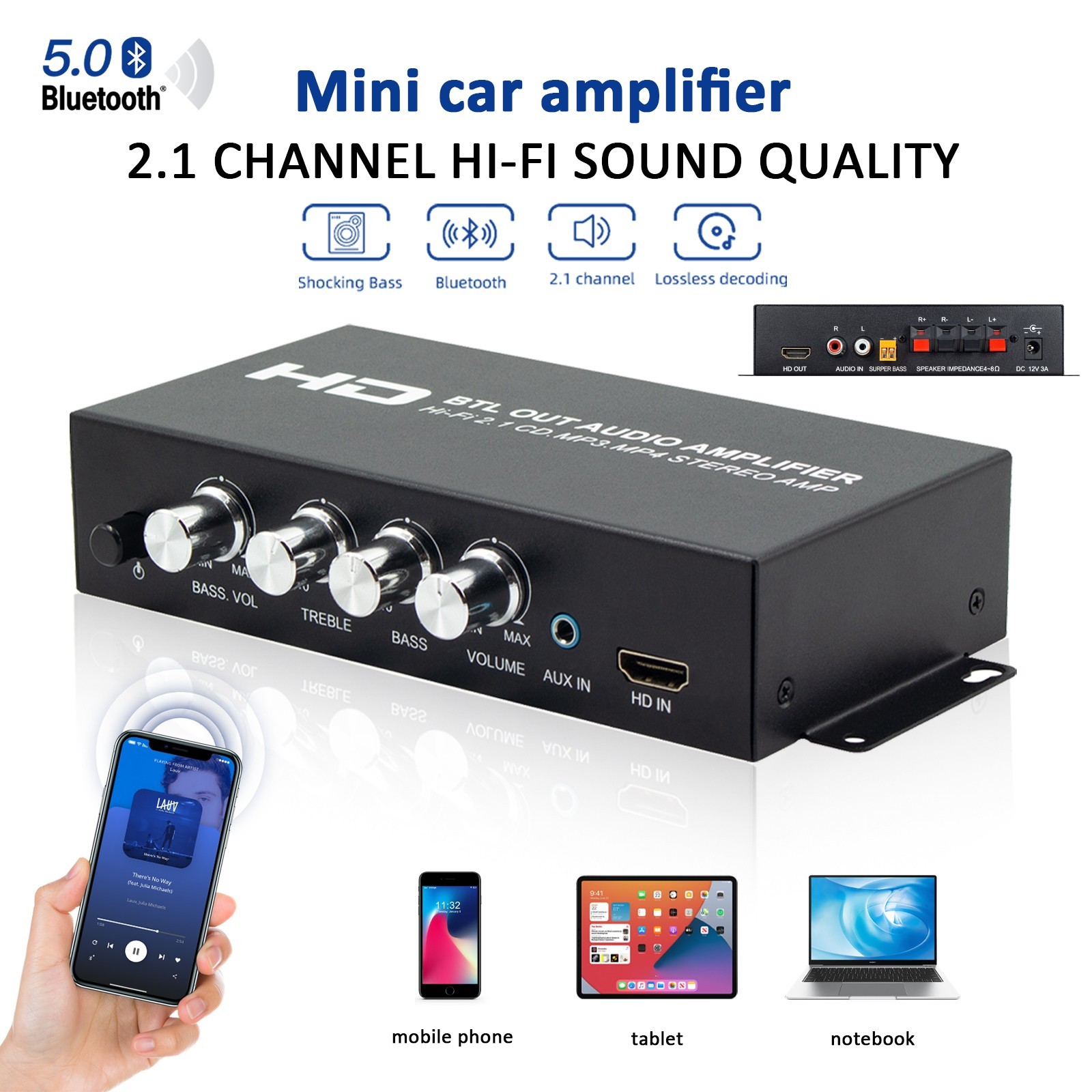

2.1-channel mini audio system, supporting HDMI, RCA and AUX inputs, compatible with mobile phones, computers and TVS. Each channel outputs 80W (left/right channel), and the subwoofer outputs 80W. It is equipped with independent bass and treble adjustment functions, providing rich and precise sound quality. It is equipped with a main volume, treble and bass knob. It is compact and portable, suitable for various occasions such as home, car, boat and outdoors. It is easy to install and flexible to operate.
Specification:
Feature
Specification
Product Name
HI-FI 2.1 channel power player
Model
M045
Input Ports
2 × Audio RCA; 1 × AUX; 1 × HDMI
Output Ports
1 × HDMI; 1 × Ultra-low frequency (Subwoofer) jack; 1 × Left channel; 1 × Right channel
HDMI Version
1.4
Amplifier Type
HIFI
Amplifier Channels
2.1
Input Voltage
DC 12V, 3A
Output Power
80W × 2 + 80W (Total 240W)
Output Impedance
4 - 16Ω
Treble Adjustment
Supported
Bass Adjustment
Supported
THD (Harmonic Distortion)
<0.05% @ 1kHz, 4W
Treble Control
10kHz ±12dB (220mV, 47KΩ) *
Bass Control
100Hz ±12dB (220mV, 47KΩ) *
Frequency Response
20Hz - 20kHz
Dimensions (mm
160 × 82 × 37
Weight (g)
350
Feature:
2.1 Channel with 20W×2(L/R)+40W(sub) output, Can drive most Home/Car/Boat/Outdoor Passive speakers and subwoofers with excellent sound.
Bass control allows you adjust the high and low frequency separately with Low distortion, acoustically accurate reproduction of music, which sounds smooth and full.
Designed with main volume, treble and bass control knobs for more delicate adjustment of the sound, much fun and high playability.
Supports RCA and AUX Inputs, widely compatible with various devices, such as Phone, MP3, MP4, CD player, TV, Computer etc.
Mini Sized, ideal to used in your Home, Car, Boat, RV or Golf, easy to install and play, save space and convenient to operate.
Package Contents:
1* HIFI Amplifier
1* Adapter
1* Specification
