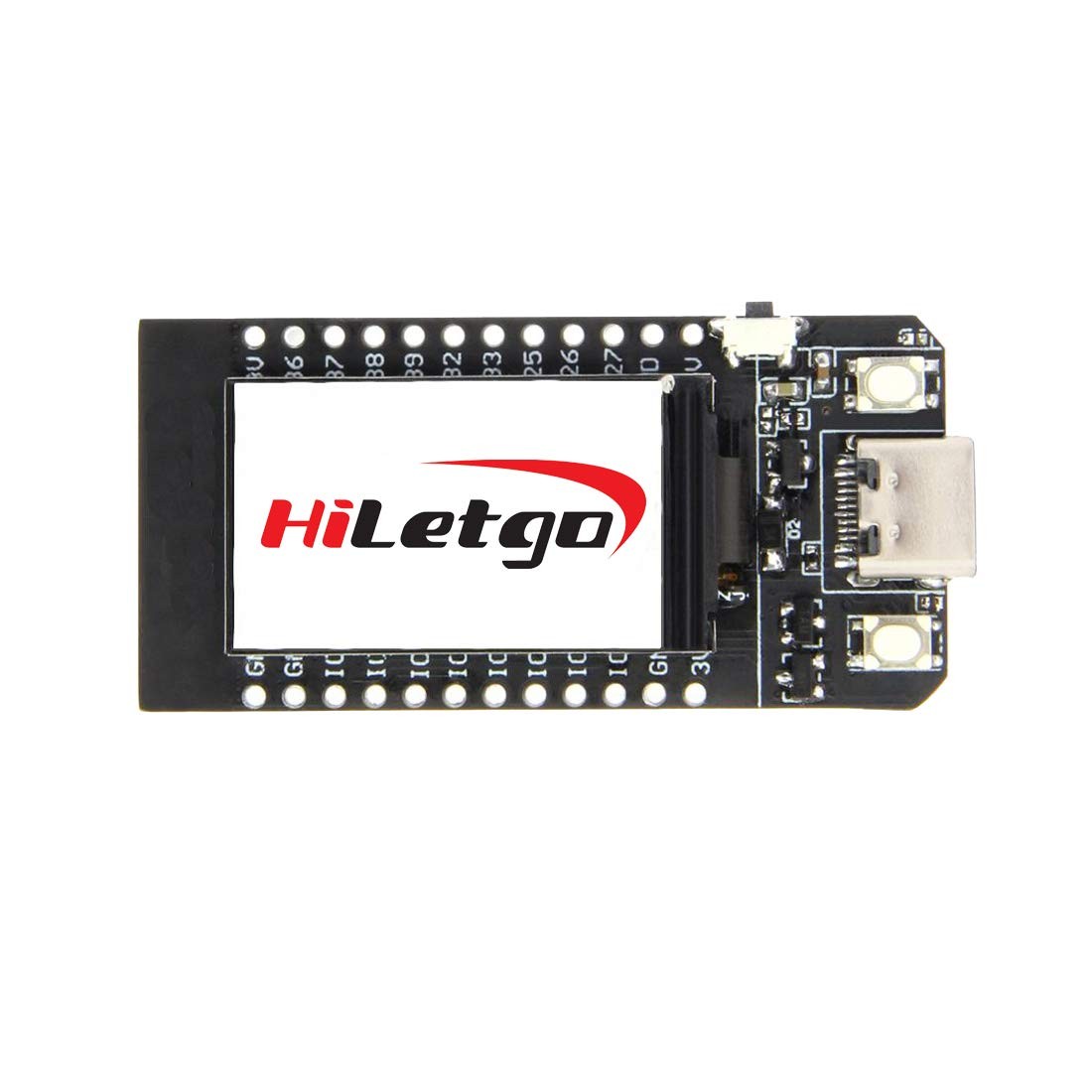

HiLetgo ESP32 LCD WiFi Kit ESP-32 1.14 Inch LCD Display WiFi+Bluetooth CH9102 USB Type-C Internet Development Board for Arduino ESP8266 NodeMCU Description

Hardware Specifications:Chipset: ESP32 240MHz Xtensa single-/dual-core 32-bit LX6 microprocessorFLASH: QSPI flash 4MBSRAM: 520 kB SRAMButton: ResetUSB to TTL: CH9102Modular interface: UART, SPI, SDIO, I2C, LED PWM, TV PWM, I2S, IRGPIO, ADC, capacitor touch sensor, DACLNA pre-amplifierDisplay: IPS ST7789V 1.14 InchWorking voltage: 2.7V-4.2VWorking current: About 60MASleep current: About 120uAWorking temperature range: -40°C ~ +85°CSize Weight: Approx. 51.52*25.04*8.54mm (7.81g)Power Supply Specifications:Power Supply: USB 5V/1ACharging current: 500mABattery: 3.7V lithium batteryJST Connector: 2Pin 1.25mmUSB: Type-CWi-Fi:Standard: 802.11 b/g/n (802.11n, speed up to 150Mbps) A-MPDU and A-MSDU polymerization, support 0.4μS Protection intervalFrequency range: 2.4GHz~2.5GHz (2400M~2483.5M)Transmit Power: 22dBmCommunication distance: 300mBluetooth:Protocol Meet Bluetooth v4.2BR/EDR and BLE standardRadio frequency With -97dBm sensitivity NZIF receiver Class-1,Class-2&Class-3 emitter AFHAudio frequency CVSD&SBC audio frequencySoftware specification:Wi-Fi Mode: mechanism: WPA/WPA2/WPA2-Enterprise/WPSEncryption Type: AES/RSA/ECC/SHAFirmware upgrade UART download/OTA(Through network/host to download and write firmware)Software Development: Support cloud server development /SDK for user firmware developmentNetworking protocol: IPv4, IPv6, SSL, TCP/UDP/HTTP/FTP/MQTTUser Configuration: AT + Instruction set, cloud server, android/iOSappOS: FreeRTOSPacking Includes:1 * 1.14 inch ESP32 LCD Module2 * Pin header1 * Cable

Features:

• Chipset: ESP32 240MHz Xtensa single-/dual-core 32-bit LX6 Microprocessor
• FLASH: QSPI flash 4MB
• SRAM: 520 kB SRAM
• USB to TTL: CH9102
• USB: Type-C

Product Details:

• Publisher: HiLetgo
• Publication date: 0
• Dimensions: 5.1 x 2.5 x 0.8 cm
