6-FT D-Sub 15-in VGA SVGA Male to 4 BNC Male RGBS and RGsB Adapter Cable
6-FT D-Sub 15-in VGA SVGA Male to 4 BNC Male RGBS and RGsB Adapter Cable
This VGA to 4-BNC breakout cable with interference resistant ferrite cores are excellent for interfacing between RGBS equipmentsand VGA/SVGA devices such as monitors, video servers, and workstations.

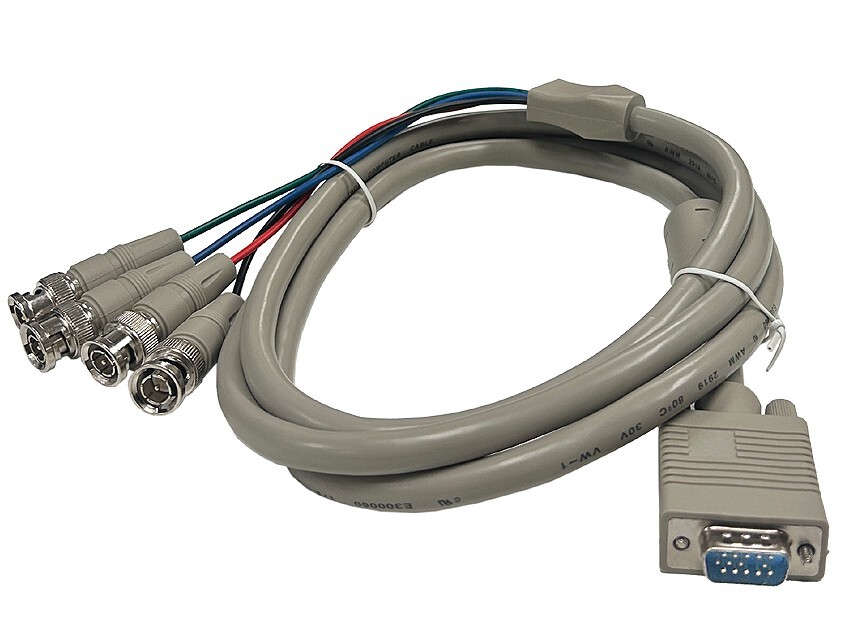

Cable features a HD15 d-sub SVGA male connectorbranching out into 4 color-coded 75 ohm coaxial cable lines with BNC male connectors. Great for accurate RGB video and syncsignal transfer and pass-through.
It will also work for the 3-BNC type RGB signal as wellby leaving out the sync connector accordingly.
Cable is 6 foot long. Further extension can be done via joining withlonger VGA cable.
15-Pin VGA To RGBS Or RGBS To 15-Pin VGAPass-Through
There were many legacy RGB video devices built to use 15-pin VGA connector for input or output of RGBS or RGsB signal.
This video adapter cable is designed for such RGB video input and output hookup. It can pass red, green, blue, composite sync signal through its 15-pin connector.
The red, green and blue connectors are for videocolors. The gray and white connectors are for horizontal sync and black forvertical sync.
15-Pin VGA To RGB Or RGB To 15-Pin VGAPass-Through
It will also work for the 3-BNC type RGBsignal to be passed through a 15-pin VGA connector by leaving out the H-sync and V-sync connector.
- Excellent for interfacing between RGBS equipmentsand VGA/SVGA devices such as monitors, video servers, and workstations.
- Designed for passing the red, blue, green and composite video sync signal through a 15-pin VGA connector.
- The red, green and blue connectors are forvideo color elements and the gray connector forvideo sync signal.
- Also work for the 3-BNC type RGBsignal to be passed through a 15-pin VGA connector by leaving out the H-sync and V-sync connector.
- Double-shield to provide the maximum immunityto environmental EMI and RFI.
- Integrated ferrite on HD15 cable end forenhanced system electromagnetic compatibility.
- Quintuple coax connector for standard high definition75 Ohm inputs.
- 6 feet long cable.
