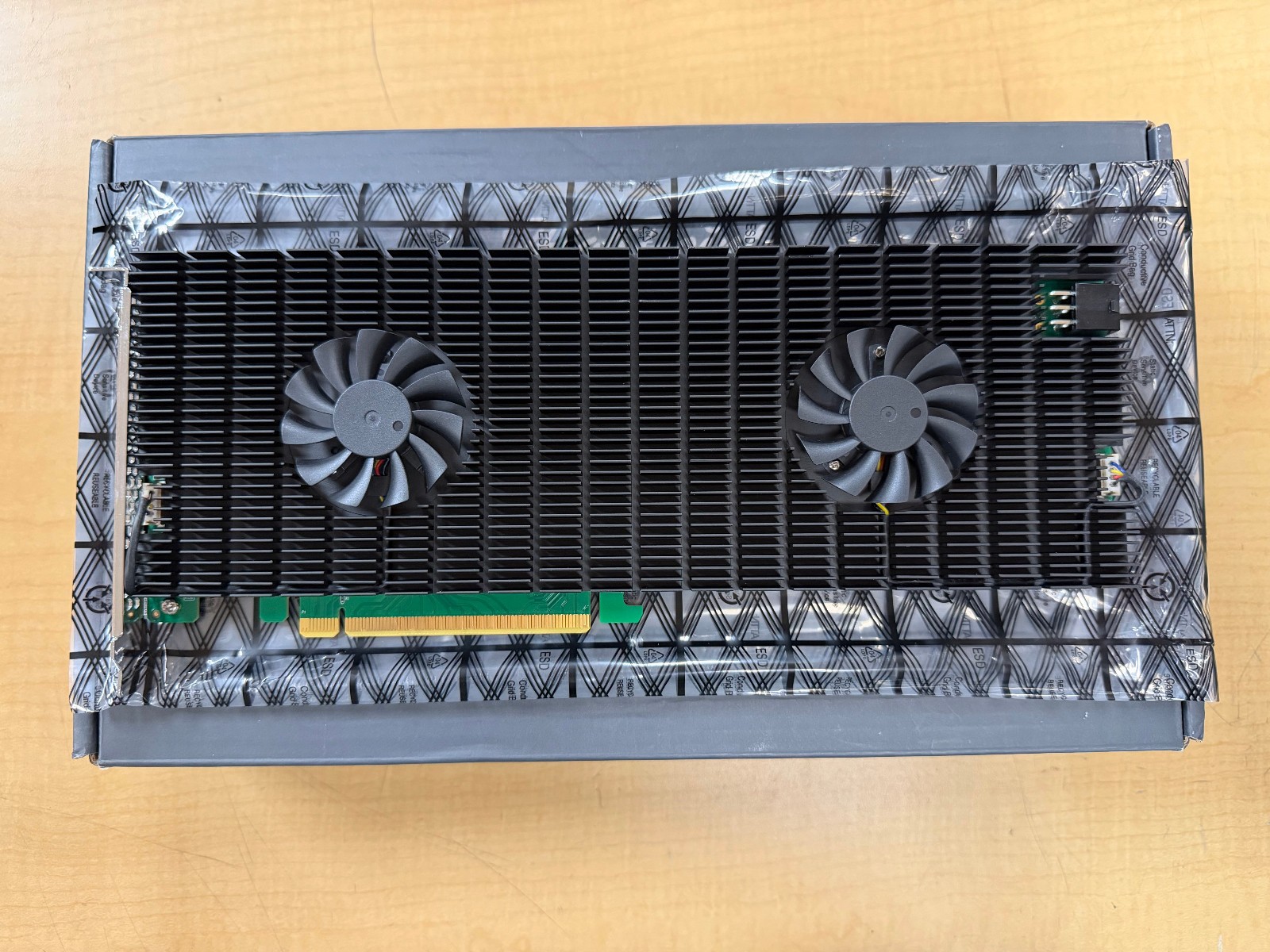

HighPoint SSD7540 PCI-Express PCIe 4.0 x16 8-Port M.2 NVMe RAID Controller

Price: US $1000.00

Specifications

Product feature

Bus Interface

PCI-Express 4.0 x16

Number of Channel / Port

8x M.2 NVMe port (Dedicated PCIe 4.0 x4 per port)

Port Type

8x M.2 NVMe

Data Transfer Rate

16GT/s

Number of device

8x M.2 NVMe SSD

SSD Form Factor

2242/2260/2280 (supports single & double sided)

External Power Support

Yes (Use 6pin PCIe Power Connector)

Form Factor

Full-Height

Card class="font_9">Card Weight

1.70 lbs.

Supported Operating Systems

Windows

Windows 11 and 10; Windows Server 2022/Server 2019/Server 2016; Microsoft Hyper-V;Only supports 64 bit operating system.

macOS

macOS 10.x and later

System Requirements

Mac Platforms:

• Apple Mac Pro Systems: 2012 and later Mac Pro systems; MacPro5,1; MacPro7,1 (2019); Mac14,8 (2023) Note: PCIe 4.0 required for maximum performance
• Intel & Apple M1 & Apple M2 Platform compatible

PC Platforms:

Any PC Systems or Motherboard with an industry standard PCIe x16 physical Slot (Bifurcation is not required).Note: PCIe 4.0 required for maximum performance.

Secure Boot(PC platforms)

Windows： Support Secure Boot Disable and Enable(Please download the UEFI driver corresponding to Secure Boot on the software download page)
Linux：Support Secure Boot disable

Cooling System

Full-Length Anodized Aluminum Heat sink with built-in Low-Noise fan

Fan Control

Yes (Windows, Mac)

NVMe Configurations

RAID Support

Single, RAID 0, 1, 10

TRIM RAID Support

Single, RAID 0, 1, 10

Data RAID (Non-Bootable)

Windows,Linux,Mac (Linux Driver can be installed via internet/network connection)

Boot RAID

Windows:Windows10, 11Windows Server 2016,2019,2022
kernel3.10 and later (Linux Driver can be installed via internet/network connection)
Mac：Bootable using one (non-RAID) M.2 SSD as the boot drive. Only supports up to macOS 10.15.

NVMe RAID Management

Management Suites

WebGUI (Browser-Based management tool)
CLI (Command Line Interface- scriptable configuration tool)
API package
UEFI Tool & UEFI HII (BIOS interface via Human Interface Infrastructure Support)

SMTP Email Alert Notification

Yes

Alarm Buzzer

Yes

Storage Health Inspector

Yes

NVMe SMART status

Yes

Automatic and configurable RAID Rebuilding Priority

Yes

Auto resume incomplete rebuilding after power on or reboot system

Yes
