Highpoint Tech RR3740C RocketRAID 3740C 16-Port SAS RAID Controller Highpoint Tech RR3740C RocketRAID 3740C 16-Port SAS RAID Controller

International Customers: All electronic products are packaged for sale in the US with US voltage.

This item is brand-new, factory sealed.

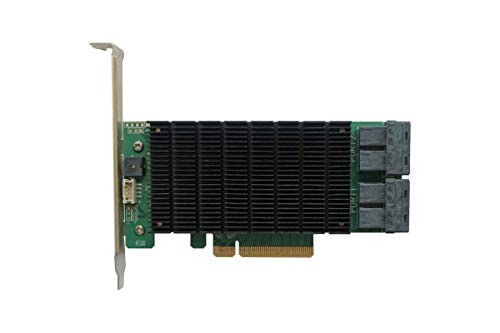

The RR 3740C is a 16-port, 12Gb/s, PCIe 3.0 x8 SAS/SATA RAID controller.


RR3740C Key Features

PCIe 3.0 x8 host Interface

16x 12Gb/s SAS ports

Flexible SAS + SATA Storage configurations

Windows, macOS & Linux

RAID 0, 1, 5, 6, 1/0, 5/0, JBOD & Single Disk Bus Interface
8-lane, 8 GT/s PCI Express 3.0 Compliant
Number of Channel / Ports
16x Internal Data Transfer Rates:
Up to 12Gb/s per port Port Type
4x SFF-8643 mini-SAS HD Number of Devices
16x SAS /SATA Hard Drive / SSD
Note: Only Enterprise and NAS drives are supported
Note: RocketRAID 3700 Series controllers can be used with the RS6418S and RS6414S JBOD tower enclosures via 8644-8088-1M1 SFF- 8644 to SFF-8088 cables. Form Factor
Low-Profile RAID Level Support
0, 1, 5, 6, 1/0, 5/0, and JBOD / Non-RAID Mode
Note: RAID 6 not supported on macOS. Bootable RAID 6 arrays are not supported.
RAID 1/0 is the equivalent of RAID 10. RAID 5/0 is the equivalent of RAID 5. Operating System Support
Window Server 2008 and Window 7 and later, Microsoft Hyper-V
Linux
macOS 10.9 and later Advanced RAID Features
Flash ROM for Upgradeable BIOS
Yes
Storage Health Inspector
Yes
Redundant RAID Configurations
Yes
BIOS PnP (plug and play) and BBS (BIOS boot specification) support
Yes
Bootable RAID Array
Yes
UEFI support for PC Platforms
Yes
Multiple RAID Partitions supported
Yes
Storage Configurations
Direct Attached Multiple RAID Adapters supported
Yes
Online Array Roaming
Yes
Online RAID Level Migration (ORLM) (not supported by macOS)
Yes
Online Capacity Expansion (OCE) (not supported by macOS)
Yes
RAID Quick Initialization for fast array setup
Yes
Drive hot-plug support
Yes
Global Hot Spare Disk support
Yes
Automatic and configurable RAID Rebuilding Priority
Yes
Auto resume incomplete rebuilding after power on or reboot system
Yes
Disk Format compatible: 512, 512e, 4Kn
Yes
Larger than 2 TB Drive and RAID Array support
Yes Spin down Massive Arrays of Idle Disks support
Yes
Native Command Queuing
Yes
SAS TCQ
Yes
Disk media scan and repair
Yes
Device Error Recovery support
Yes
Automatic remap and fix drive bad blockfor RAID array
Redundant RAID Levels (RAID 1, 5, 6, 1/0, 5/0)
Staggered Drive Spin Up
Yes
Write Back and Write Through
Yes RAID Monitoring and Management Suite
RAID Management Suites:
Yes
BIOS/UEFI/Firmware configuration tool
Yes
Browser-Based management tool
Yes
CLI (Command Line Interface- scriptable configuration tool)
Yes
API package
Yes
Enclosure Management Interface: SGPIO, SES-2 and I2C (Drive LEDs supported: SGPIO, SES-2 and LED Header)
Yes
SMTP Email Alert Notification
Yes
Alarm Buzzer
Yes Operating Environment
+5oC to+ 55oC
Work Temp:
-20oC to +80oC
Storage Temp:
PCI-e: 12V, 3.3V
Operating Voltage:
Power: 14W
(12V 1A, 3.3V 0.5A)
MTBF (Mean Time Before Failure)
920,585 Hours
Certification / Approval
CE, FCC, RoHS, REACH, WEEE No. of Channels
16 Internal
Kit Contents
1x controller card
1x Low Profile Bracket
1x Quick Installation GuideItem Dimension (L inchxW inchxH inch)
7 x 2 x 8

Weight
1.00 lb
