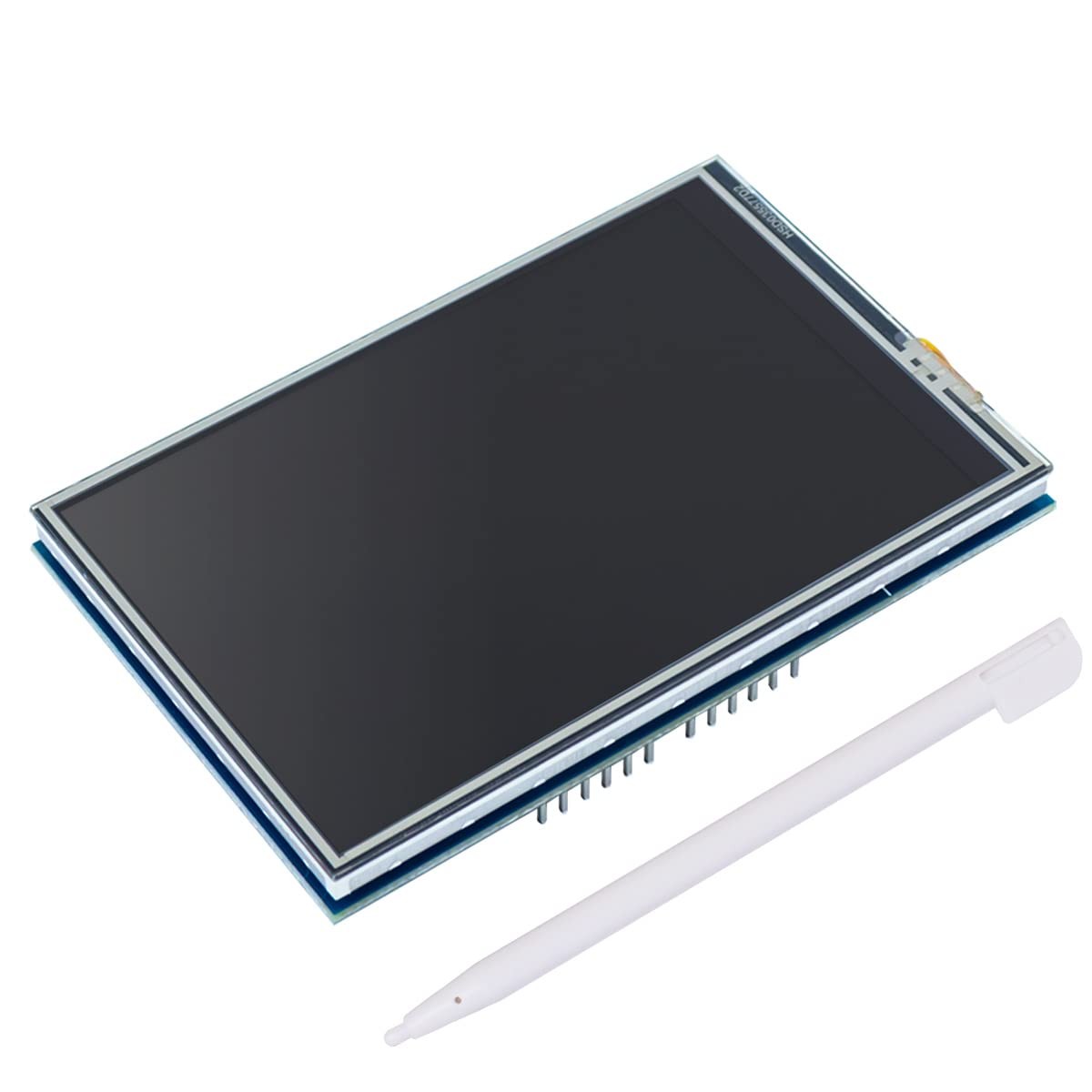

Hosyond 3.5 inch 480X320 TFT Touch Screen Module LCD 3.5" 8-bit Parallel
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Hosyond 3.5 inch 480X320 TFT Touch Screen Module LCD 3.5" 8-bit Parallel
Price: US $25.64
Hosyond 3.5 inch 480X320 TFT Touch Screen Module LCD 3.5" 8-bit Parallel
Product Details
  • Supports development boards such as Arduino R3 and Mega2560 for plug-in use without wiring
  • 480X320 resolution, clear display；Support 16-bit RGB 65K color display, display rich colors
  • 8-bit parallel bus, faster than serial SPI refresh
  • Resistive screen supports for touch function and easy to expand the experiment with SD card slot
  • On-board 5V/3.3V level shifting IC, compatible with 5V/3.3V operating voltage

Display Color : RGB 65K colorScreen Size : 3.5(inch)Type : TFTTouch screen: Resistive screenDriver IC : ILI9486Resolution : 480*320 (Pixel)Module Interface : 8-bit parallel interfaceActive Area : 73.44*48.96(mm)Module PCB Size : 85.49*55.63(mm)Operating Temperature : -20℃~70℃Storage Temperature : -40℃~70℃Operating Voltage : 5V/3.3VProduct Weight : 55g(with touch pen)package include：1 x 3.5 inch screen1 x touch pen
