I2C Smart I/O Expander and ADC - 4B - 4 Pack

• Easily add a few more I/O or A/D channels to your project through I2C
• Do complex tasks with a few simple calls to the API available for download through the IDE Library Manager
• Many support videos and extensive documentation available online. See the User Guide pdf in the "Product guides and documents" at the bottom of this lisiting
• 3 Input/Output and 1 Input Only pin on each chip. Each pin can be assigned a specific function such as Servo, Quadrature Encoder, A/D conversion, UART Bridge
• Use all 4 chips together, or in 4 different projects. 100nF capacitors included. Uncut decal strip with 8 decals included. Upgradable Open Source Firmware available on GitHub.

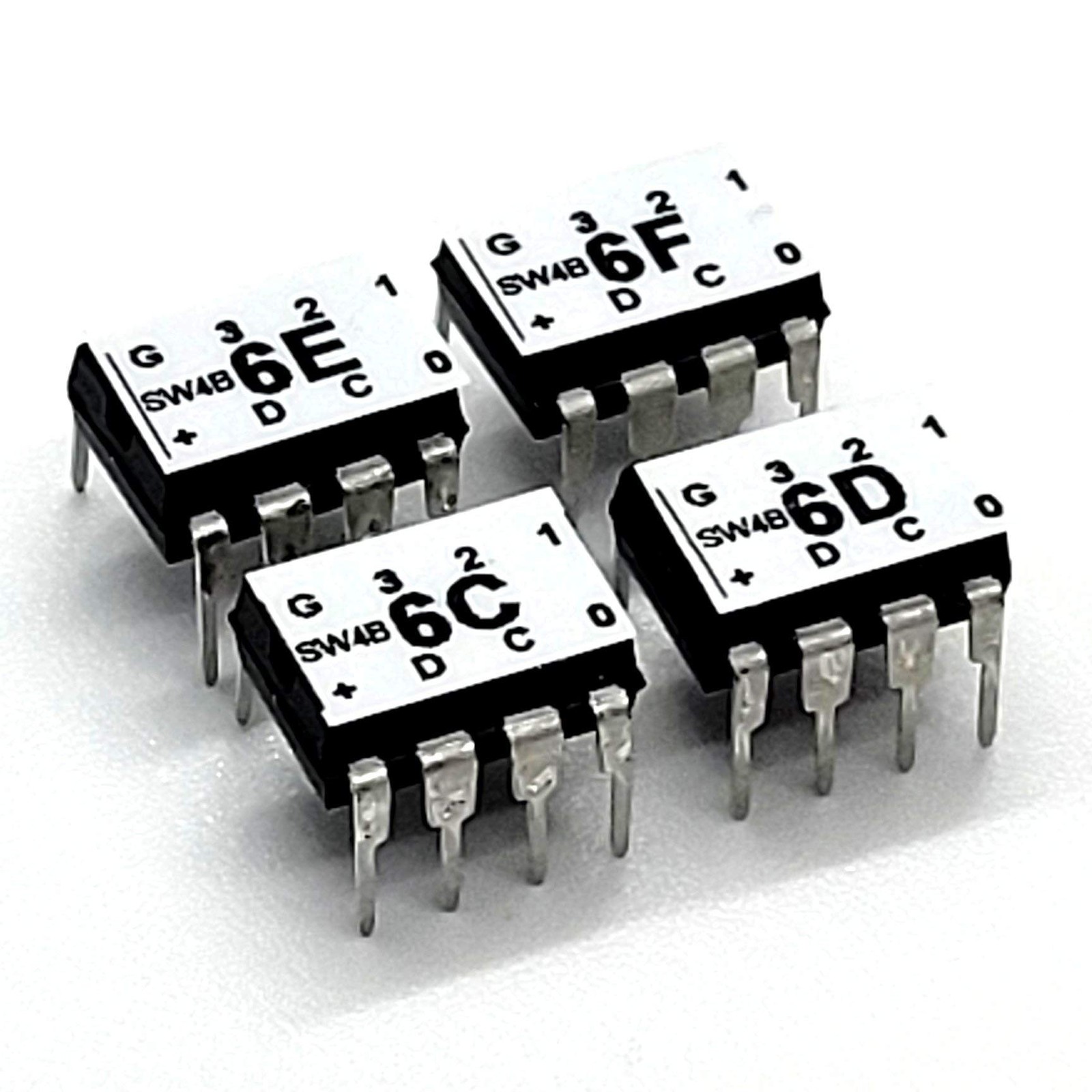

The smart I/O expander is compatible with Arduino, Raspberry Pi, CircuitPython, native embedded systems, or any other system that can communicate by I2C. The 4B provides 3 Input/Output pins and one Input-Only pin each capable of running an independent state machine every millisecond to perform smart operations. Communications use a simple I2C protocol at up to 400kbps. This kit includes four preprogrammed 4B chips with I2C addresses 0x6C, 0x6D, 0x6E and 0x6F. You can change the address using a sketch in the Library Examples. Input Pin Modes: -Pulse Measurement -- Pulse Measurement with 8uS resolution -Debounced Input -- Debounce switches while monitoring transitions and key press time -Quadrature Decoder - Combine 2 input pins to decode rotary encoder signals Input/Output Pin Modes:
-Analog Input (10 bit with filtering, averaging, Min/Max tracking) -Servo Output (1uS pulse resolution) -PWM Output (10 bit at selectable frequencies) Watchdog -- Reset the host if it freezes
-Protected Output -- Shut off output if fault detected -I2C->UART bridge
