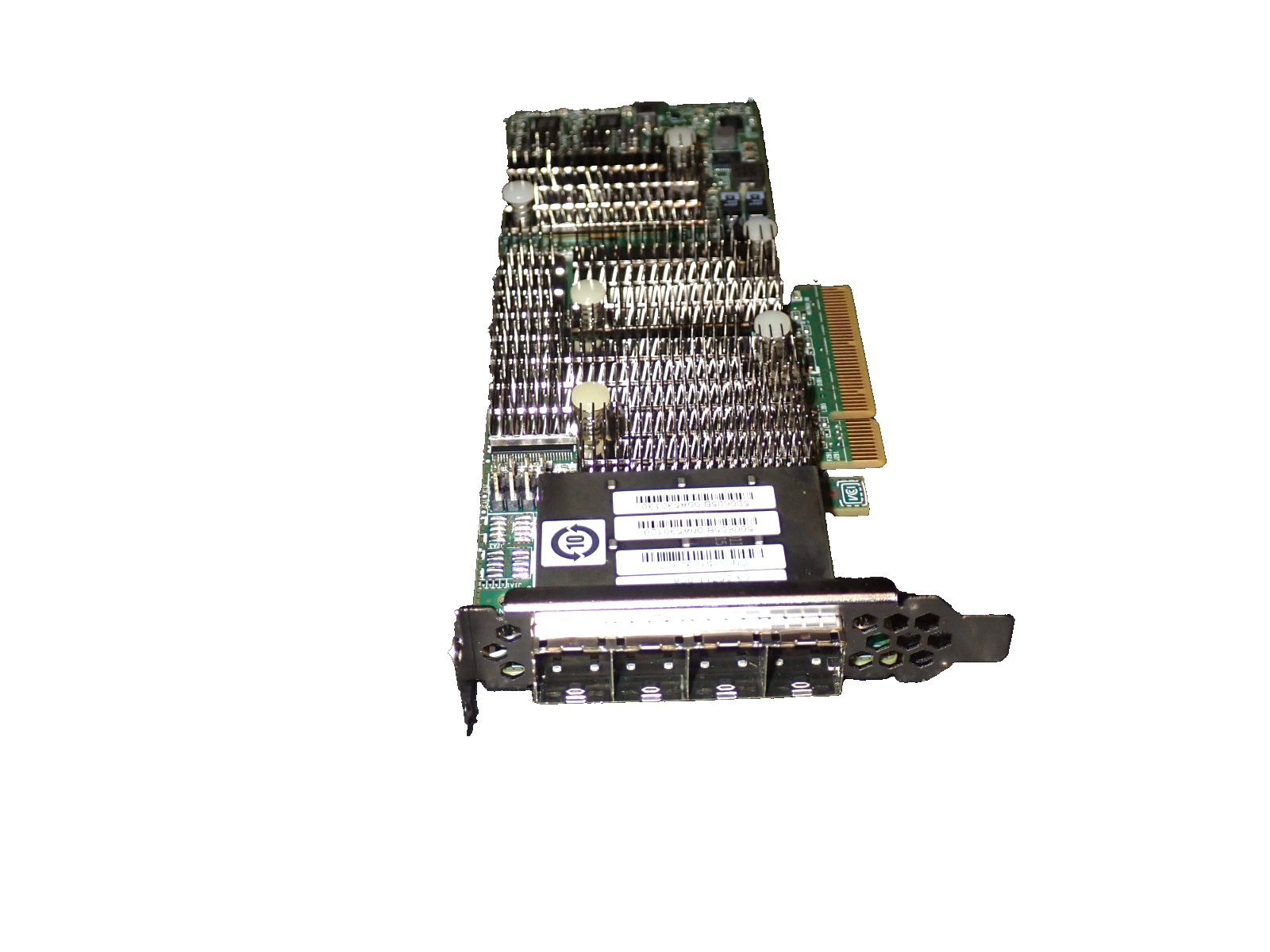

The IBM 00MH942 LSI SAS 9206-16E 6Gbps Host Bus Adapter is an enterprise-grade external storage controller designed for high-performance SAS connectivity in server and data center environments. It is based on the LSI 9206-16e platform and is commonly used for connecting servers to external JBOD enclosures, disk shelves, and SAS storage arrays.

This HBA provides reliable 6Gb/s SAS connectivity and is built for non-RAID (IT mode) operation, making it ideal for storage systems where direct disk access, virtualization, and software-defined storage solutions are required.

Specifications:

• Part Number: 00MH942
• Model: LSI SAS 9206-16E
• Type: Host Bus Adapter (HBA) / Storage Controller
• Interface: PCIe 3.0 x8
• External Ports: 4 × Mini-SAS HD (SFF-8644) connectors (16 external lanes total)
• Data Transfer Rate: Up to 6Gb/s per lane
• Controller: Dual SAS2308 architecture (enterprise storage controller)
• Function: Non-RAID (IT mode) external storage connectivity
• Application: JBOD, SAN expansion, enterprise storage systems, data centers

Features:

• High-performance 16-lane external SAS connectivity
• Designed for direct-attached storage (DAS) and JBOD expansion
• Supports SAS and SATA drives via external enclosures
• PCIe 3.0 x8 interface for stable high-bandwidth throughput
• Ideal for virtualization and software-defined storage setups
• Reliable 24/7 enterprise operation for storage workloads
• Low-latency direct disk access (non-RAID IT mode)
• Widely used in enterprise servers and storage arrays
